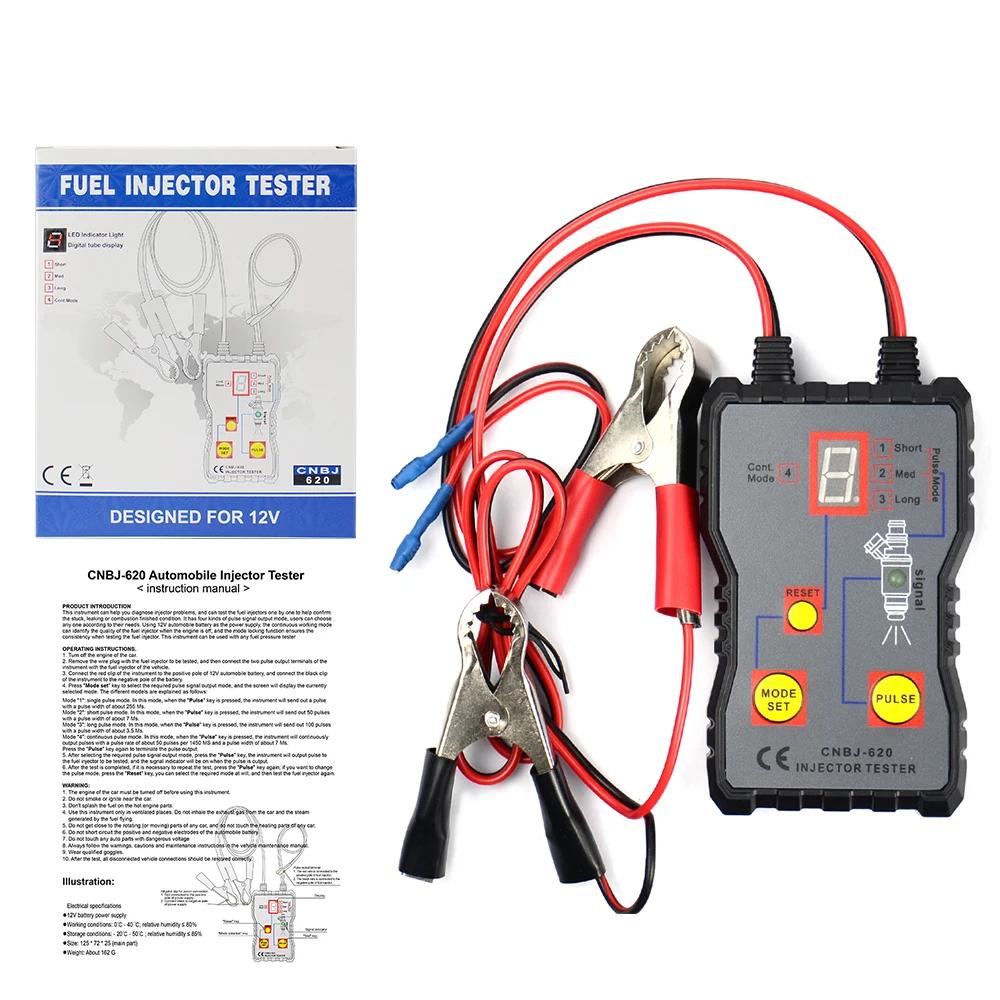

Fuel System Scan Tool Automotive Cleaning Tool Kit Injector Flush Cleaner Car Fuel Injector Tester Portable 4 Pluse Mode for Automobiles & Motorcycles

Fuel System Scan Tool Automotive Cleaning Tool Kit Injector Flush Cleaner Car Fuel Injector Tester Portable 4 Pluse Mode For Automobiles & motorcycles

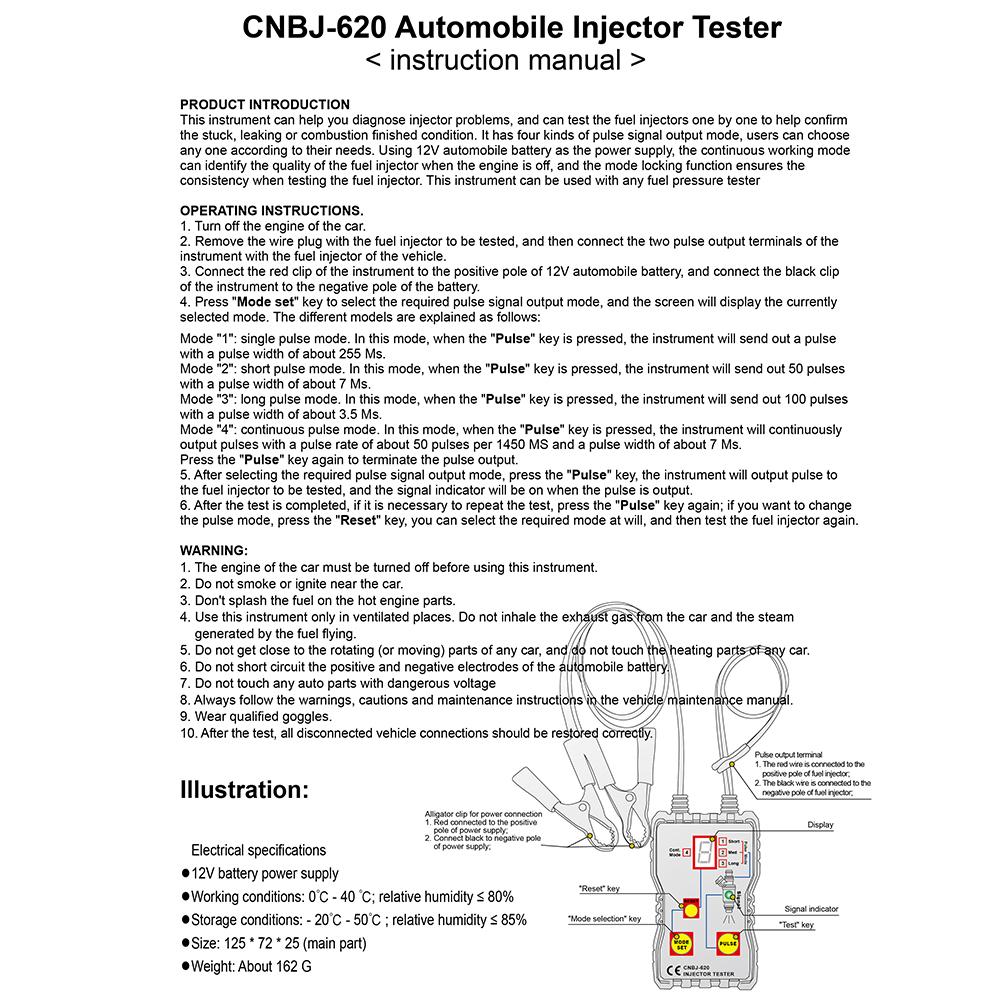

Operation Instructions 1. Shut off the engine of the car. 2. Remove the wire plug that connects to the fuel injector of the vehicle to be tested, and then connect the two pulse output terminals of the instrument to the fuel injector of the car. 3. Connect the red clip of the instrument to the positive terminal of the 12V car battery, and connect the black clip to the negative terminal of the car battery. 4. Press the "MODE SET" key to select the desired pulse signal output mode. The screen will display the currently selected mode. The explanations for different modes are as follows: Mode "1" Single pulse mode. In this mode, when the "PULSE" key is pressed, the instrument will emit a pulse with a width of approximately 255 milliseconds. Mode "2" Short pulse mode. In this mode, when the "PULSE" key is pressed, the instrument will emit 50 pulses, with a pulse width of approximately 7 milliseconds. Mode "3" Long pulse mode. In this mode, when the "PULSE" key is pressed, the instrument will emit 100 pulses, with a pulse width of approximately 3.5 milliseconds. Mode "4" Continuous pulse mode. In this mode, when the "PULSE" key is pressed, the instrument will continuously output pulses, with a pulse rate of approximately 50 pulses every 1450 milliseconds, and a pulse width of approximately 7 milliseconds. Pressing the "PULSE" key again will terminate the pulse output. 5. After selecting the desired pulse signal output mode, press the "PULSE" key; the instrument will output pulses to the tested automotive fuel injector, and the signal indicator light will illuminate when the pulses are output. 6. After the test is completed, if you need to repeat the test, press the "PULSE" key again; if you want to change the pulse mode, press the "RESET" key. You can choose the desired mode again and test the automotive fuel injector.

Products Include:

1 * Automobile Diagnostic Tool

High-concerned chemical: none Is Batteries Included: no Origin: Mainland China
