SSR Output Mode: DC to AC control style, solid state relay available in 25A and 40A versions, supports input 3-32VDC and output 24-380VAC.
Metal Temperature Probe: Stainless steel probe with 2m wire, captures temperature readings for the control system.

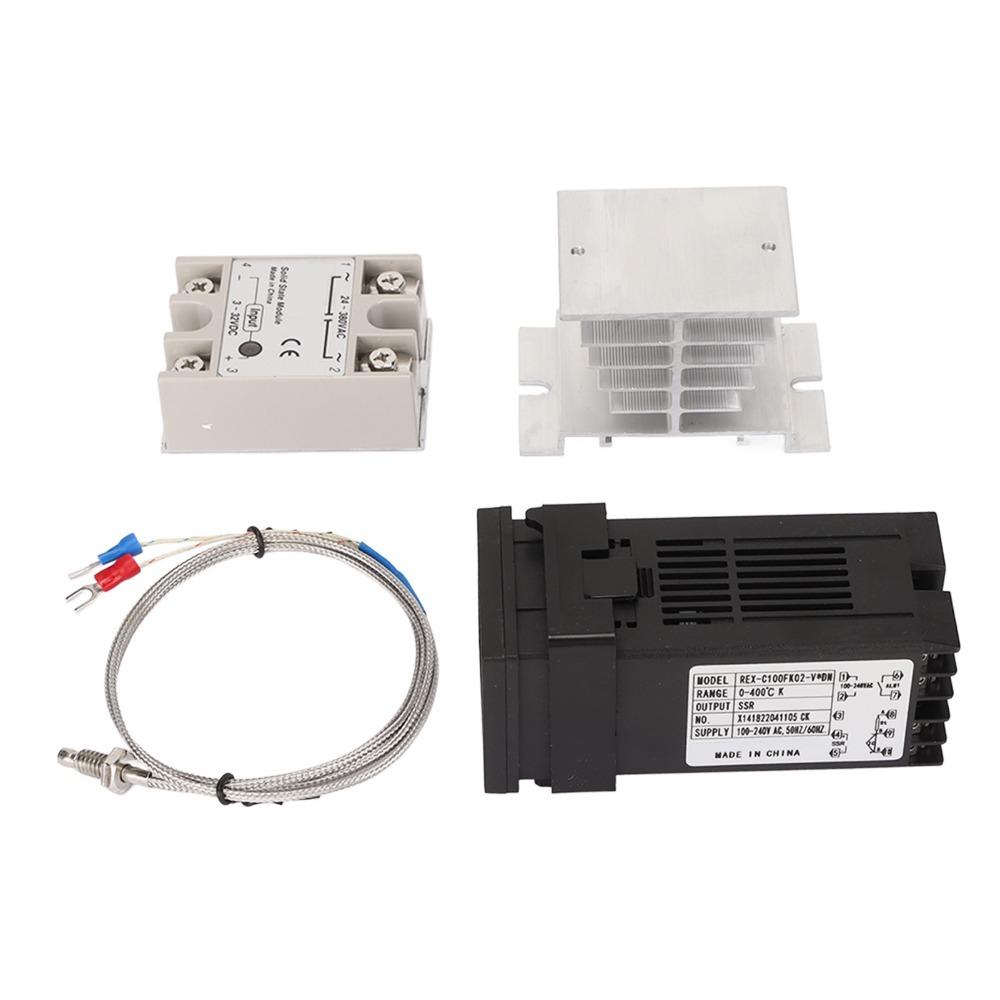

Package Dimension & Content: Includes thermostat, K type thermocouple, aluminum heatsink and solid state relay. Thermostat measures 48*48*86mm(1.89*1.89*3.39in); heatsink measures 50*50*81mm(1.97*1.97*3.19in); solid state relay measures 46*23.5*63mm(1.81*0.93*2.48in).
Stable Temperature Regulation: Built-in self-adjusting function for steady temperature management, detection temperature range from 0℃ to 400℃, measurement accuracy ±0.5%FS.

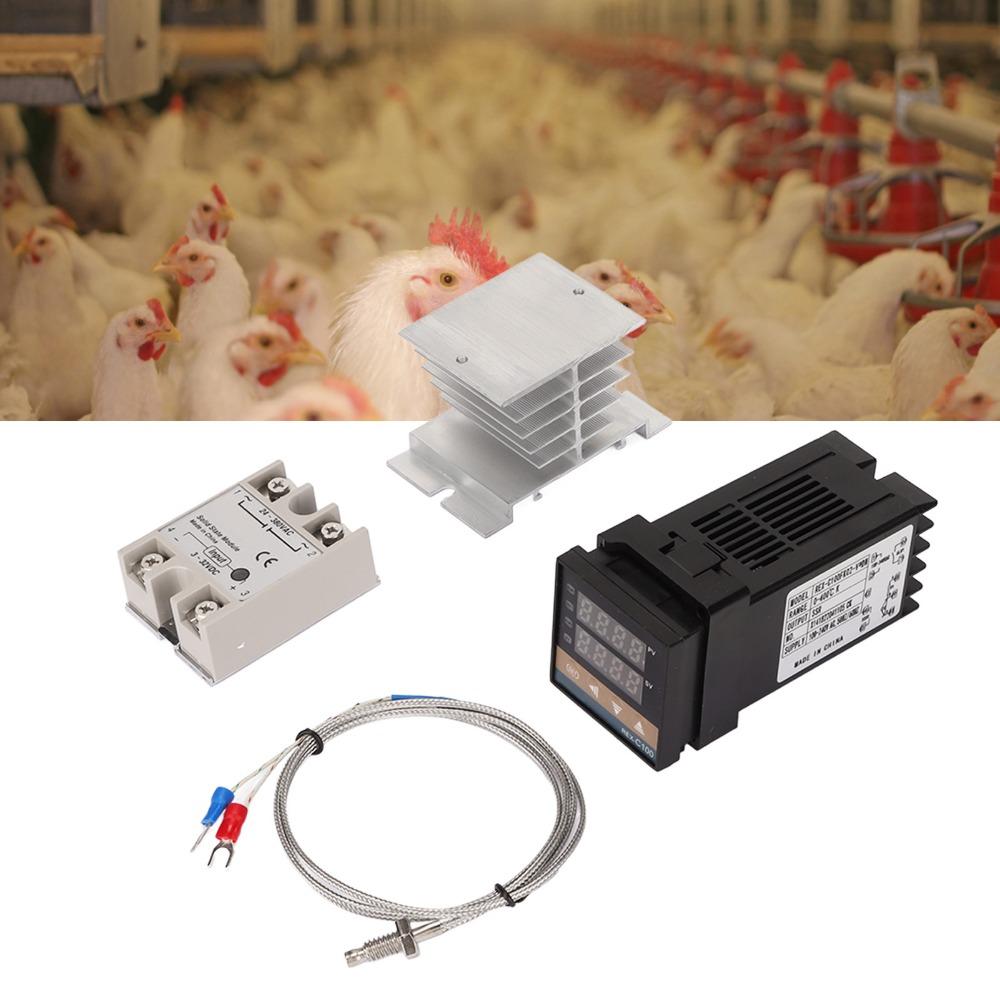

Broad Application: Fits incubators, ovens, heater control, packaging, food processing and other industrial and farming temperature regulation scenes.
Specifications:
Product Name: Farm Temperature Control Set
Color: Black+Silver
Material: ABS+Aluminum alloy+Stainless steel
Weight: 320 g
Product Size:
Thermostat: 48 x 48 x 86 mm (1.89 x 1.89 x 3.39 in)
K Type Thermocouple: 1 m (39.37 in)
Heatsink: 50 x 50 x 81 mm (1.97 x 1.97 x 3.19 in)
Solid State Relay: 46 x 23.5 x 63 mm (1.81 x 0.93 x 2.48 in)
Package Including:
1 Set Farm Temperature Control (Include 1 Thermostat+1 K Type Thermocouple+1 Heatsink+1 Solid State Relay)
Notes:
1. The color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
1. Thermostat (Long Type)
Measurement Accuracy: ±0.5%FS
End to end Compensation Tolerance: 0-50℃, can be modified by software ±2℃
Resolution: 14 bit
Sampling Period: 0.5 seconds
Power Supply: AC 100-240V 50/60HZ
Process value (PV), set value (SV)
Output Alarm and Auto Tuning Indication: LED Indication
PIN Control: Including ON/OFF, step regulation and continuous regulation
Self Adjusting Control: Support
Delay Output: Contact capacity 250V AC 3A (resistive load)
Proportional Band (P): 0 to full scale (when ON/OFF control is set to 0)
Detection Temperature Range: 0-400℃
Insulation Resistance: > 500V DC
Withstand Voltage: 1500V AC per min
Power consumption <10VA
Service Environment: 0-50℃ Non corrosive gas environment 30-85%RH
Scope of Application: Electric power, chemical industry, packaging, food, incubator, oven, heating equipment control, etc.
2. K Thermocouple Probe Cable
Temperature Range: 0-400℃
Insulation: Fiberglass
Outer Jacket: Insulating Sleeve

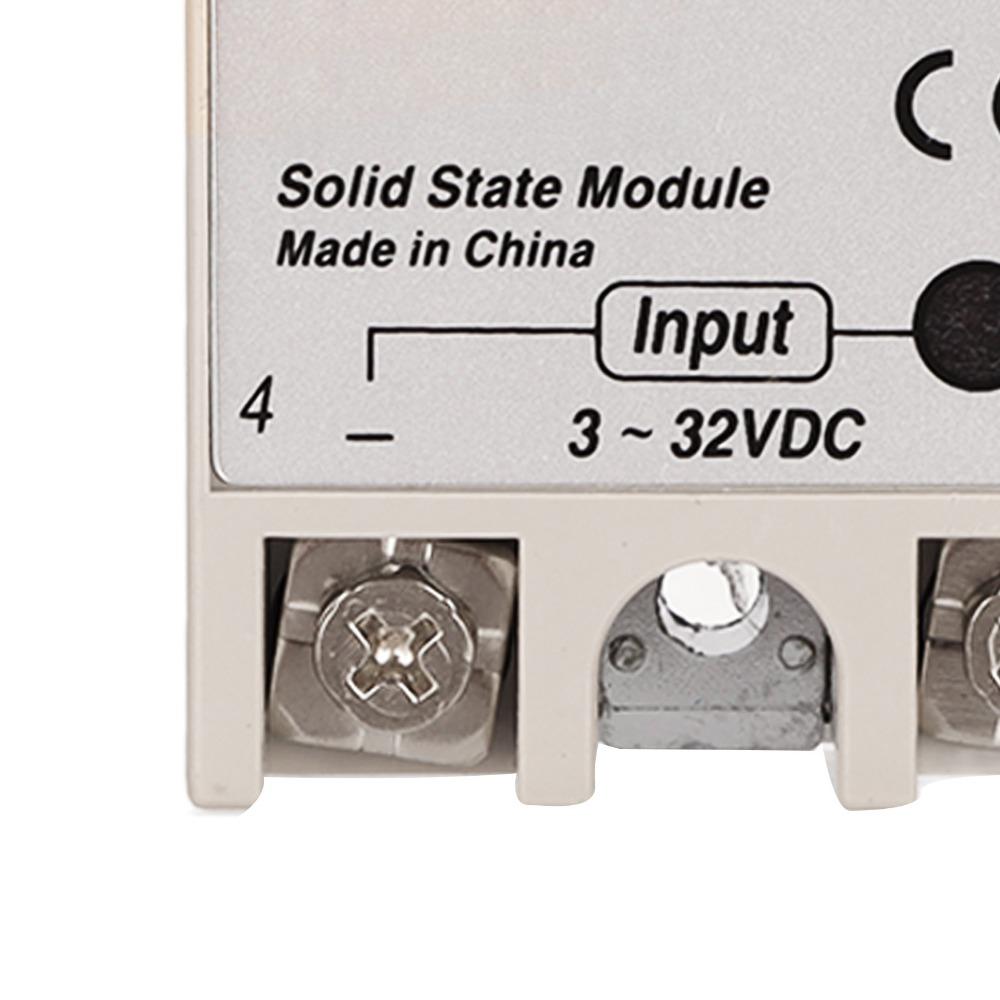

3. Solid State Relay
Output Voltage Range: Standard Type
Input Voltage: DC 3-32V
Output Voltage: 24-380V AC
4. Heatsink
Material: Aluminum
