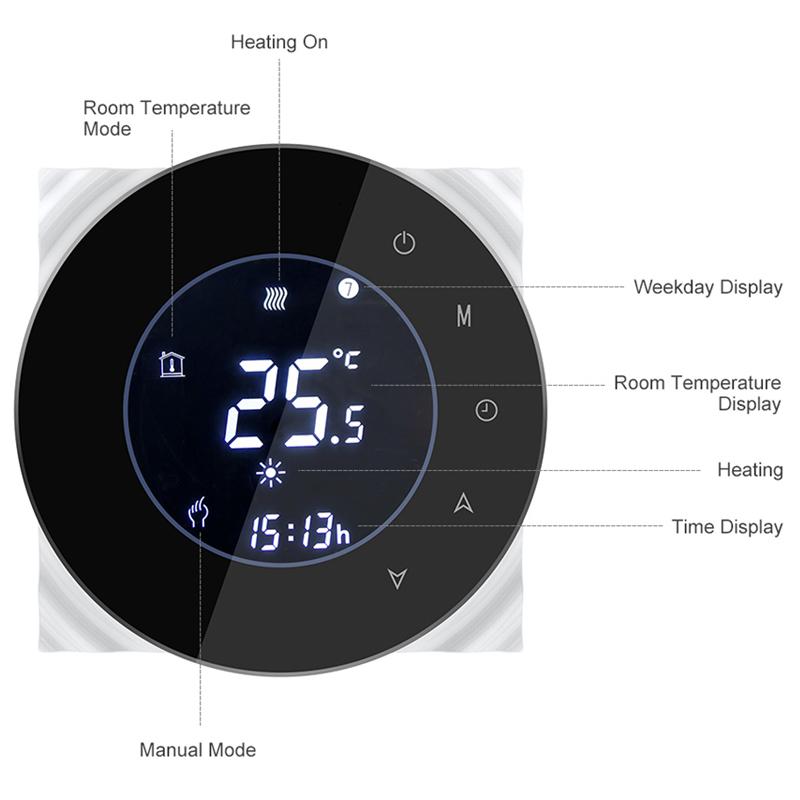

Smart WiFi Touch Thermostat Temperature Wireless Controller For Water/Electric Floor Heating Water/Gas Boiler Works Google Home7

WIFI Smart Touch Thermostat LCD Screen Backlight Water Heating Electirc Floor Heating Water Gas Boiler Temperature Controller Wireless Remote Voice Control Tuya Smart Life App work with Amazon Alexa Google Assistant

Note: Model: BHT-600-GA/BHT-002-GB/BHT-002-GC Do not include Wi-Fi Function. Model: BHT-600-GALW/BHT-002-GBLW/BHT-002-GCLW/Include Wi-Fi Function.

Sensor is not included for GA/GC. If needed, choose sensor also.

Model Definition: [BHT-6000-GA]: Water Heating 3A [BHT-6000-GB]: Electric Floor Heating 16A [BHT-6000-GC]: Water/Gas Boiler 3A

[BHT-6000-GALW]: Water Heating Wifi Voice Contorl 3A [BHT-6000-GBLW]: Electric Floor Heating Wifi Voice Control 16A [BHT-6000-GCLW]: Water/Gas Boiler Wifi Voice Control 3A

Modbus or RS485 is Optional. If needed, contact us.

On Functionality 1. Powerful Functions Are Available Such as BACnet/Modbus/Wifi etc. 2. 0.5℃ Accuracy Keeps temperature within the level you set 3. Data Memory when power is off 4. 5+2 Six periods Programmable Maximize Comfort and Economy

Technical Data Type: Water Heating/Electric Heating/Water Gas Boiler Sensor: NTC, 10K Accuracy: ±0.5℃ or ±0.1℉ Set Temp. Range: 5-35℃ Room Temp. Range: 5-99℃ Power Consumption: ＜1.5W Timing Error: ＜1% Power Supply: 95-240VAC, 50-60Hz Current Load: 3A(Water heating, water/gas boiler) | 16A(Electric heating) Shell Material: PC+ABS(Flame retardant) Dimension: 86x86x13.3mm Ambient Temp.: 0-45℃, 5-90% RH (non-condensing) Storage Temp.: -5-45℃ Installation Hole Distance: 60mm Protection Level: IP30 Buttons: Capactive Touch Buttons Wire Terminals: Wire 2*1.5mm² or 1*2.5mm²

Packing List Thermostat x1 + Screw x2 + English x1

Floor Sensor is included for Electric floor heating thermostat. GA and GC is not included, if needed, choose together when place order.

What He Can Offering 1. [Energy Saving]: Low consumption and energy saving. Help you save money 2. [ Program]: Thermostat works automatically during holidays in programmable mode. 3. [Kid Lock]: Kids lock function avoid kids mis-operate the thermostat 4. [Dual Sensor]: Integrated Sensor to measure air temperature 5. [Memory]: Built-in Battery, setting can be recovery even cutting electric power or power failure

GB GA GC

Smart Life Tuya APP Remote Control remotely control your devices where you are even when you are outside.

INSTALLATION Your thermostat is suitable foe installation within a standard 86mm pattress box or European 60mm pattress box Step 1. Keep power off. See Fig 1 Step 2. Remove the mounting Plate by rotating the LCD part. See Fig 2. Step 3. Connect power supply, load into the appropriate terminals. (see "Wiring your thermostat" for details and Fig 3). Step 4. Fix the mounting plate into the wall with screws in the box. See Fig 4. Step 5. Fasten body of the thermoatat and the mounting plate through rotating. See Fig 5. Step 6. Installation complete. See Fig 6.
