170-185 Degree 50 AMP Relay Engine Cooling Fan Thermostat Temperature Switch Sensor Relay Kit Car Switches Relays 3

Specification: Model:467172 100% brand new!!! Size: As picture shown Package box size: about 16cm(L) x 12cm(W) x 4.5cm(H) Relay: 12V DC 50A, 5 Pins Quantity: Pack of One Set

Features:

- 185-170 degree electric fan thermostat relay switch kit. - This kit includes everything you need to ho up to your fan. - This kit is set up to turn your electric fan on at 185 degrees and shut off at 170 degrees and will work with any 12 volt system.

Installation Instructions:

1.Mount the relay under the hood in a convenient location as to the fan as possible.

Notice:Don't use the tape or thread compoud on the thermostat or adaptor.For proper operation,the thermostat must ground threough the threads to the engine and the engine must be ground.

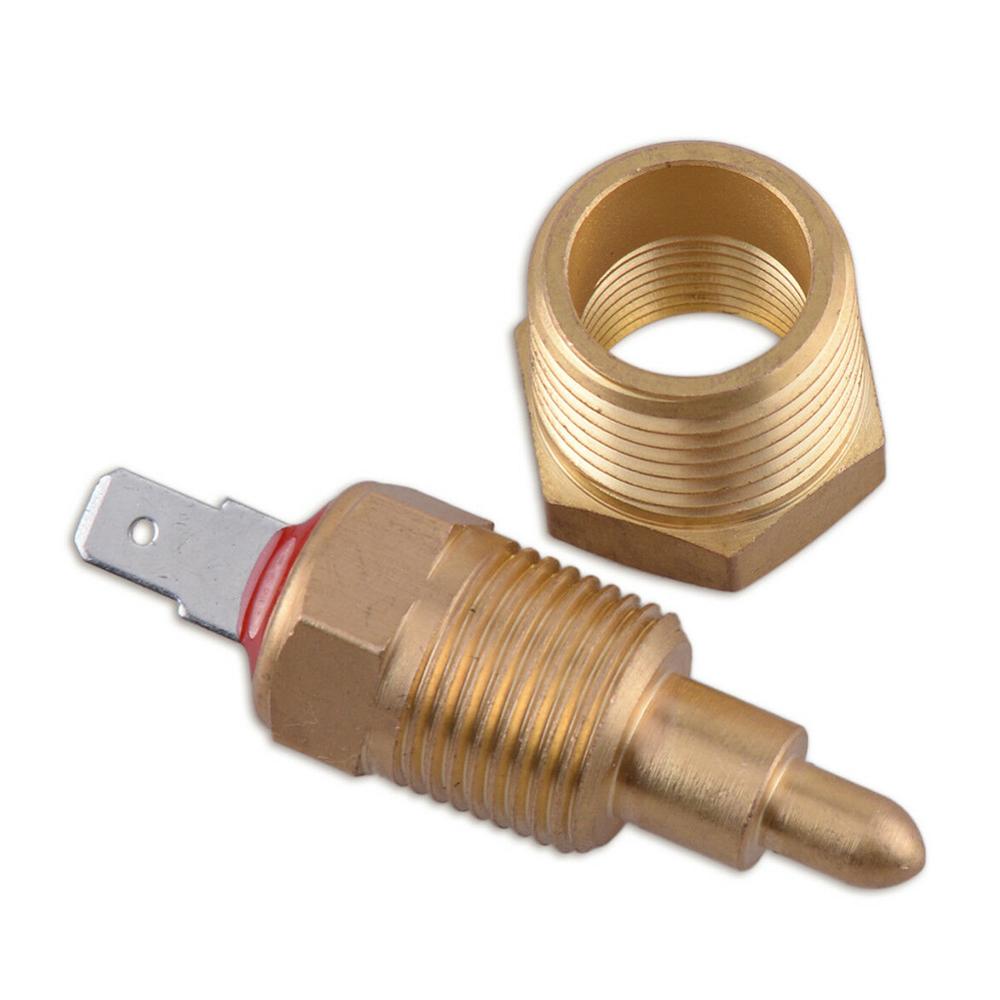

2.Install thermostat into the head or intake manifold.Route the black wire to thermostat and cut to length.Crimp the red terminal onto the black wire and attach to thermostat.

3.Route and connect the red wire to the fan "+" terminal or power wire coming from the fan motor printed "to electric fan".

Notice: With this relay you can operate a fan rated up to 50 amps or two fans as long as the total current draw for both is less than 50 apms.

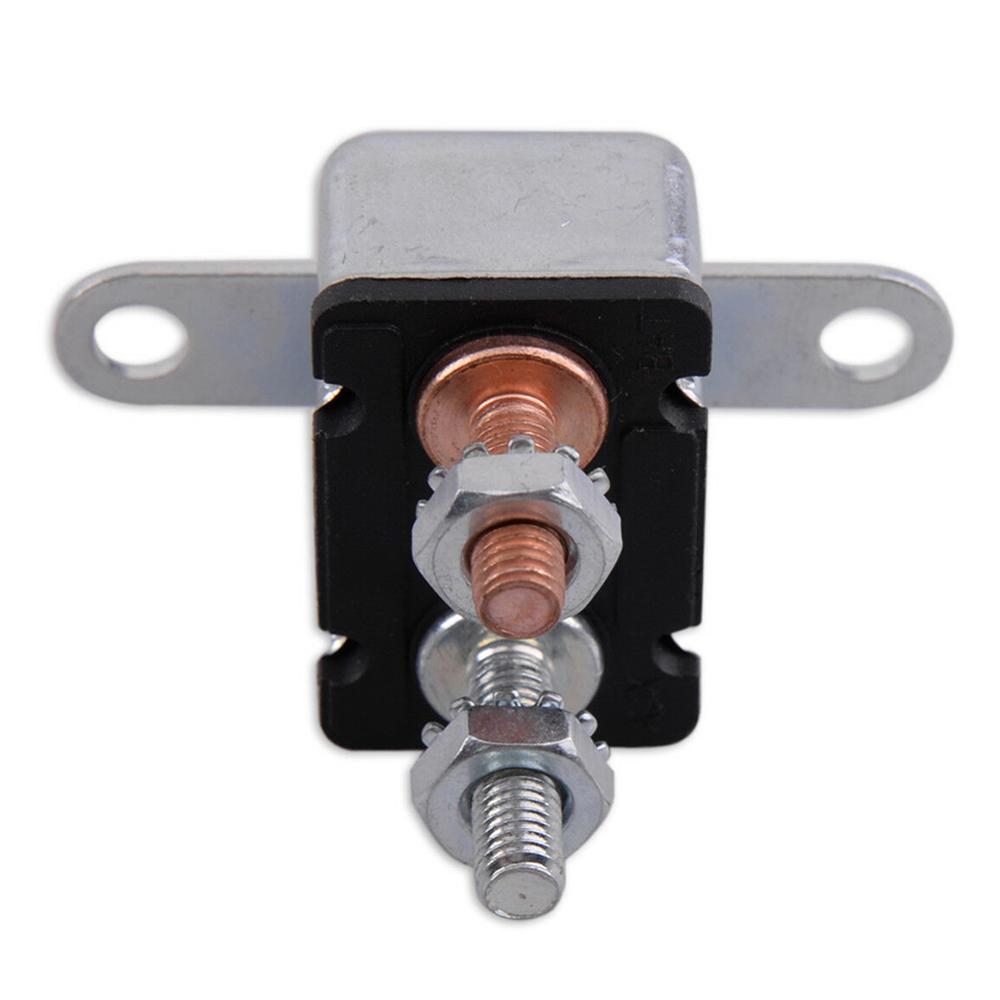

4.Mount the circuit breaker provided in a convenient location as close as possible to whichever power source(battery or large terminal on the starter solenoid)you are using for the fan relay.

5.Neatly route the red wire from the relay to one side circuit breaker installed in step 5. Cut to length and install using a small yellow ring terminal .With another small yellow ring terminal take the remaining red wire and connect the unused post on the circuit breaker to the battery source.This wire is printed"to battery/constant hot"

6.Route the brown wire to the ignition switch or the fan switch whichever is more convenient.

Note:

1. (IMPORTANT) Instructions Is Included. Professional Installation Is Highly Recommended！ 2. Please check the size measurement chart carefully before making payment. 3. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm) 4. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.

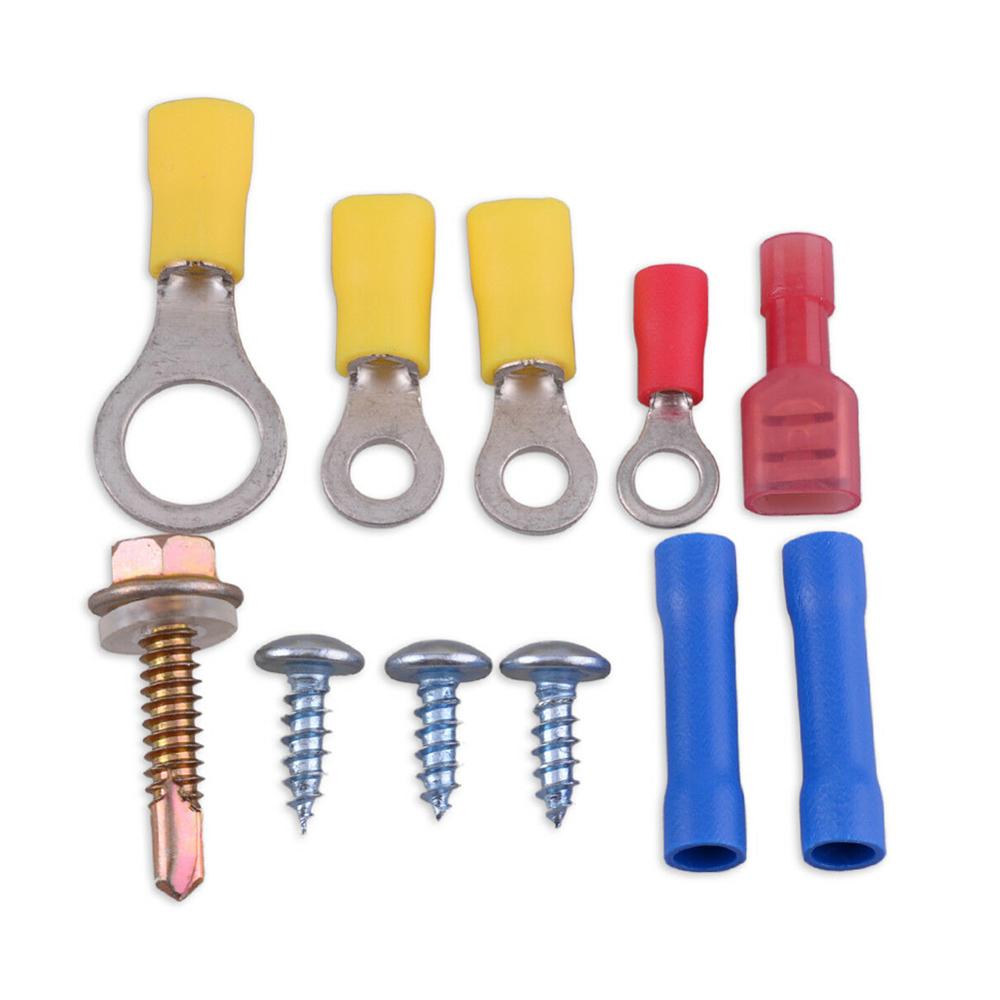

Package included: 1 x 50 AMP Relay 1 x Wiring Gauge 1 x Temperature Sensor 1 x Circuit Breaker 1 x Instruction sheet Assorted Connectors and Terminals
