Whether or Not 50Vac or 75Vdc or Higher Power Supply : No
High-concerned chemical : none
Model Number : 1800 CCTV Tester
Maximum IR Distance(m) : CCTV tester
Lens : CCTV tester
Brand Name : GILEETEEK
Origin : Mainland China
Sensor Size : 4.3inch
New 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester
Model: IPC-1800ADH Plus
● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBScamera test
● H.265/H.264, 4K video display via mainstream
● Dahua, Hikvision, Axis etc ONVIF camera test
● Rapid ONVIF, auto view video and create testing report
● 12V 3A, 48V PoE power output
●Built in WIFI, create WIFI hotspot
●RJ45 cable TDR test,cable quality test
● Wrist design, portable and easier to carry
● 10/100/100M Ethernet,network state and traffic display
Camera test:
● 4 inch touch screen, 800*480 resolution
● H.265 & H .264 IP, 4K video display via mainstream
● Rapid ONVIF, Auto log in and display image, create testing report
● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test
● 8MP TVI/8MP CVI/8MP AHD
● CVBS camera test and PTZ control
● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)
● IP discovery, just by one key to detect all network cameras IP address
● Rapid video, just by one key to detect all network cameras and auto display
● 12V 3A power output
● PoE 48V power output, Max power 25.5W
● Innovative coaxial HD focus, video signal quality test
●Built in WiFi, display image from the wireless camera, create WIFI hotspot
Cable test:
● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc
Other functions:
● 10/100/1000M Ethernet, network state and traffic display
● Wrist design, portable and easier to carry
● TesterPlay: Tester, android version mobile phone, PC display at the same time
● Network tool: PING test, IP address scan, port flashing etc
● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc
● Self -update software, you can install apps with android version
● Media player, 4K video files and MKV/MP4 media files play
● Display its genuine resolution of the IP camera images
● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG
● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools
● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours
Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable
Detail :
Display:New 4 inch IPS touch screen , 800*480 resolution
CVBS:
1 channel BNC input, NTSC/PAL (Auto adapt)
PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc
IP camera test4K/H.265/H.264:
IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK
Rapid Video:Auto view the video, create testing report
Hik test tool:pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters
Dahua test tool :Dahua camera test, modify the username, password and IP parameters
Coaxial HD test :
8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu
8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
Zoom Image
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

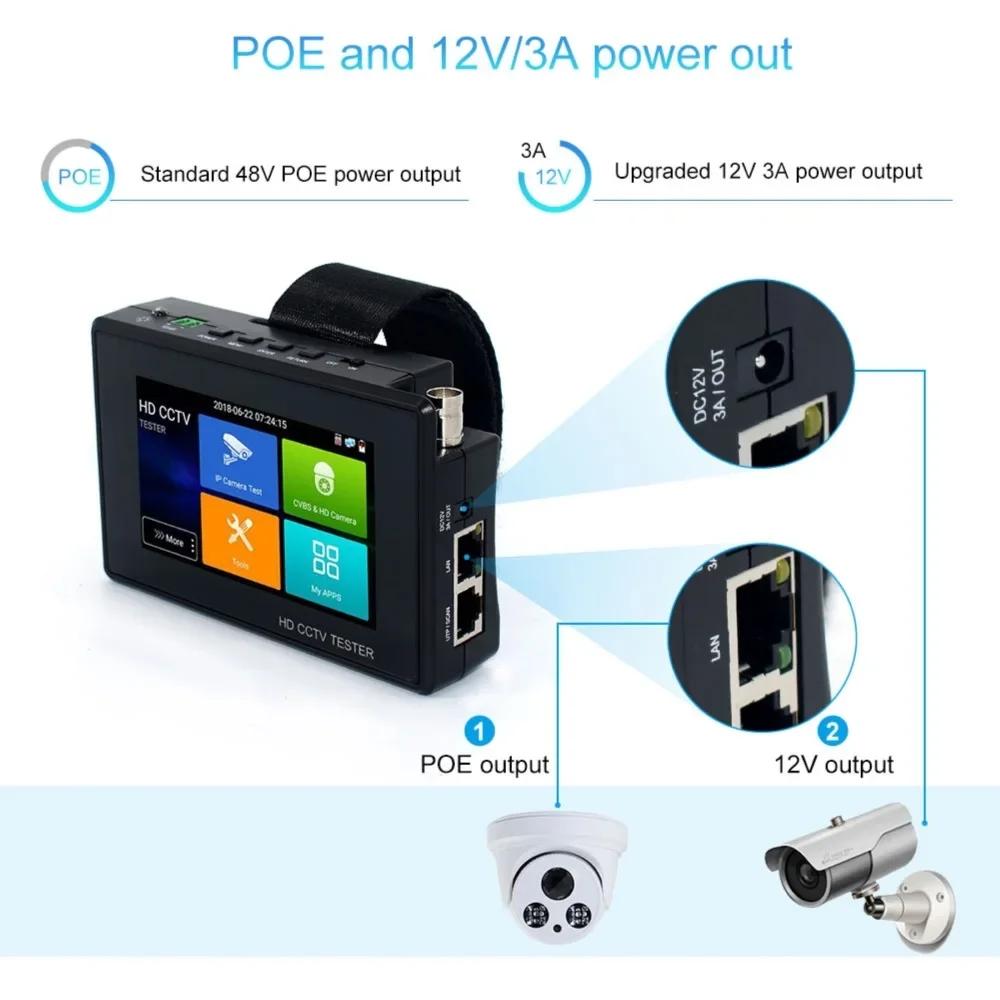

12V/3A power :Output 12V/3A power out, supply temporarily power for the camera
PoE power output :48V PoE power output, max power 25.5W
Network test:Link monitor,port flashing, Ping test
Audio test :1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone
Data monitor:Captures and analyzes the command data from controlling device, also can send hexadecimal
Drop-down menu :You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface
External power supply: 12V 1A
Battery:Built-in 7.4V Lithium polymer battery , 2400mAh
Rechargeable:After charging 4~5 hours, normal working time 7 hours
Operation setting:OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc
Auto off :1-30 (mins)
Working Temperature:-10℃---+50℃
Working Humidity :30%-90%
Dimension/Weight:126mm x 83mm x 33mm / 0.32kg
Application:
● CCTV system installation and maintenance
● Network cabling project installation and maintenance
● Dome camera, 4K H.265 IP camera testing
● Video transmission channel testing
● PTZ controller
1. CVI camera test
2. TVI camera test
3. AHD camera test
4. HD CVBS camera test
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
High-concerned chemical: none
Model Number: 1800 CCTV Tester
Maximum IR Distance(m): CCTV tester
Lens: CCTV tester
Brand Name: GILEETEEK
Origin: Mainland China
Sensor Size: 4.3inch
