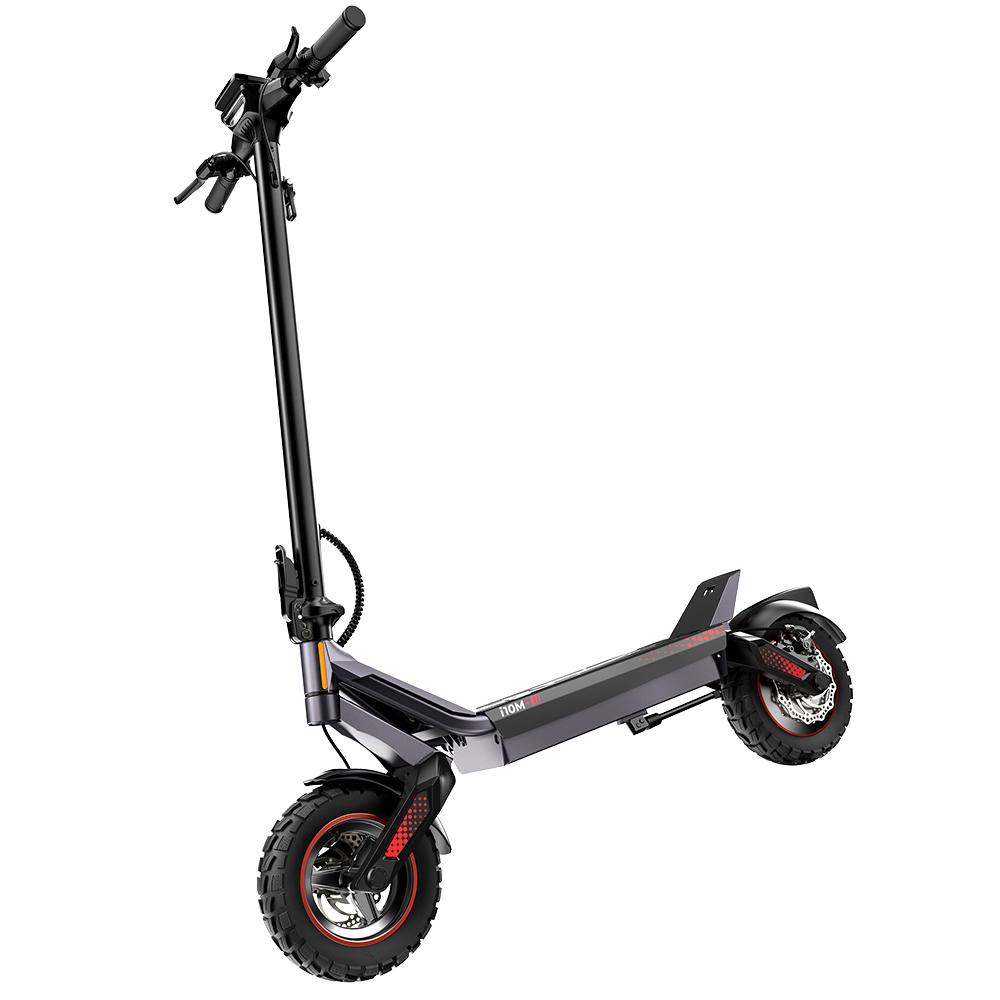

iScooter i10M No ABE City Commuting Electric Scooter 48V9Ah Battery 350W Motor 11 inch iron Hub Vacuum Tire 70Kg Max Load Escooter

Joom: Безопасная зарядка вашего электровелосипеда или электроскутера

• Не оставляйте аккумулятор без присмотра, когда вы находитесь вне дома или спите.

• Не накрывайте зарядные устройства или аккумуляторные блоки во время зарядки.

• Не перегружайте розетки и не используйте неподходящие удлинители.

• Не заряжайте и не храните аккумуляторы под прямыми солнечными лучами или в помещениях с температурой выше 45⁰C.

• Не заряжайте аккумуляторы вблизи горючих материалов или опасных веществ.

• По окончании зарядки всегда отключайте зарядное устройство от сети.

• Всегда используйте только оригинальное зарядное устройство, подходящее для данного аккумулятора.

• Всегда обращайтесь к профессионалам при переоборудовании вашего электровелосипеда или электроскутера.

• Всегда проверяйте аккумулятор (и зарядное устройство) на наличие видимых повреждений.

-----

Model: i10M Color: Black Brand: iScooter Usage scenario: Outdoor basic commuting model Vehicle certification: CE EN1728 Battery certification: Battery pack UL2271, UN38.3, MSDS, sea transportation appraisal report Charger certification: UL, CE, UKCA Battery: 48V 9Ah, model XF-ES48002, with IEC62133 Motor: rated 350W, maximum 500W Wheel: 11 inch iron hub vacuum tire Charger: Desktop 54.6V 1.5A, three hole aviation head Charging cable: European standard split eight tail/British standard split eight tail (BS1363 certified) Charging time: 5-6 hours Controller: 48V 21A, Model YL-i10M Gear: Factory 6/15/25km/h, cracked 25/35/45km/h, default mileage; Factory pedestrian ECO、D， Cracked ECO, D, S Cracking method: Hold the brake lever and press the power button five times after booting up Mid mounted instrument panel: gear/speed/battery level/headlights/turn signals/Bluetooth/range/temperature alarm/fault code Key: Switch/Headlights/Horn/M key to switch between kilometers/S key to switch gears/Turn signal/Horn+Power button to enter P value setting Lighting: A2 instrument panel headlights, taillights, turn signals, taillight switch is the same as the headlights APP ：iScooter Club APP car lock: car lock buzzer alarm+push resistance, cannot automatically shut down, can only be unlocked through APP Frame: Iron alloy, foldable Shock absorption: front and rear rocker arms with torsion springs for shock absorption Brakes: Front and rear wheel disc brakes+hidden electronic brakes Maximum load capacity: 120kg/264lbs Actual endurance: 40km at a load of 70kg and a speed of 15km/h+ Instruction manual endurance: does not display endurance mileage Applicable age: 14+(English version 18+) Instruction manual: Horizontal color printing in six languages (English, French, German, Italian, Western, Polish), 130 × 130mm; English standard version in English Scene temperature: -2~35 ℃ Input voltage: AC100-240V, 50/60Hz Output voltage: DC54.6V 1.5A Unfolding size: 1160 × 610 × 1320mm Folding size: 1160 × 610 × 565mm Net weight (bare car): 26kg Net weight+accessories: 26.55kg Gross weight: 29.7kg Box size: 116 × 19 × 60cm

Core selling points of the European market 1. Complete compliance certification, worry free registration in Europe The whole vehicle has passed CE EN1728 certification, and the battery pack has UL2271, UN38.3, MSDS, and sea transportation appraisal report; The charger is certified by UL, CE, UKCA and equipped with European/British representative information, meeting the requirements for European market access.

2. 11 inch vacuum tires+front and rear shock absorbers, making commuting more stable 11 inch iron wheel hub vacuum tire paired with torsion spring front and rear rocker arms for shock absorption, filtering out road bumps; Front and rear disc brakes+hidden electronic brake for safer braking.

3. Foldable iron alloy frame, easy to store The unfolded size is 1160 × 610 × 1320mm, and when folded, it is only 1160 × 610 × 565mm, suitable for storage in apartments and offices, and also easy to fit into the trunk.

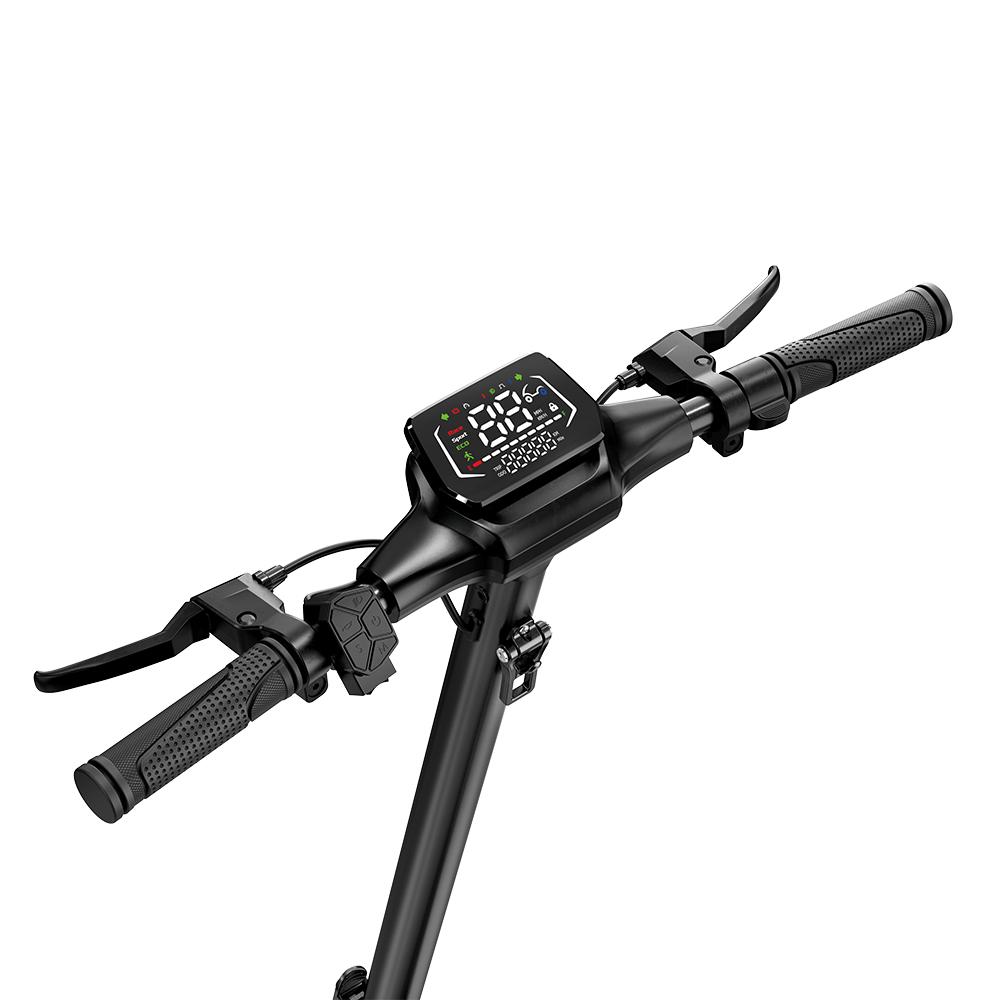

4. Intelligent instrument+APP interconnection The central instrument panel displays gear, speed, battery level, turn signal, Bluetooth, mileage, temperature alarm, and fault codes; Support iScooter Club APP, which can view data, lock the car, and provide buzzer alarm and push resistance after locking the car.

5. Multiple speeds to adapt to different scenarios Factory 6/15/25km/h, in line with the speed limit of public roads in most European countries; After cracking, it can switch to 25/35/45km/h, suitable for private use.

6. Long battery life to meet daily commuting needs 48V 10.4Ah battery, with a tested range of 40km+at a load of 70kg and a speed of 15km/h, can be charged 1-2 times a week for daily commuting.

7. Load capacity of 120kg, suitable for more users The maximum load-bearing capacity is 120kg, and the frame is made of iron alloy, which has strong stability and is suitable for users of different body types.

8. Six language manual, localized in Europe Comes with language manuals in English, French, German, Italian, Spanish, and Polish, with an English standard version accompanied by an English manual for European users to quickly get started.

Precautions for the European market Speed limit compliance: In most European countries, the speed limit for public roads is 25km/h, which is already met by default at the factory; The 45km/h mode is limited to private venues only.

Differences between the British version: The British charging cable has passed BS1363 certification, the instruction manual is in English, and is suitable for ages 18 and above.

Range label: The manual does not display the range, and the operator can claim it based on the actual test results. APP car lock: After locking the car, it cannot be automatically turned off and can only be unlocked through the APP. When using, pay attention to the battery level.
