Navceker HDMI Splitter 1x2 1x4 1x8 4K HDMI Splitter 1 in 2 out 2 Port HDMI Amplifier HDMI Cable Splitter 2.0 For PS4 PS5 Xbox 4

If you like our products please you add to cart or add to Favorites,Surprise coupons is waiting for you to extract, more refined small gifts free to send, please contact customer service. If you follow our store and become our fans, you can get extra 5% discount for some designated products. ugreen vention baseusNavceker HDMI Splitter 1x2 1x4 1x8 4K HDMI Splitter 1 in 2 out 2 Port HDMI Amplifier HDMI Cable Splitter 2.0 For PS4 PS5 XboxDescription: ZY-HS208, Navceker HDMI 2.0 Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 8 HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840x2160@60Hz. There are 5 models optional, different model has different interface and appearance, please choose suitable model before purchase:

(1)The Black color is ZY-HS20B,HDMI 2.0b and HDCP 2.2,4K@60Hz 1080P@120Hz 1x2 HDMI Splitter.support Scaler(one Out 4K@60Hz,Another Out 1080P),RGB 8:8:8(7.1CH Dolby atmos),decode HDCP,Copy mode,Auto mode and Mixed mode,HDR 10 .

(2) The Red color is ZY-HS20C,HDMI 2.0b and HDCP 2.2,4K@60Hz 1x2 HDMI Splitter.support Scaler(one Out 4K@60Hz,Another Out 1080P),RGB 4:4:4,4 kinds of EDID mode,decode HDCP,HDR 10 .

(3)The White color is ZY-HS20E,HDMI 2.0b and HDCP 2.2,4K@60Hz 1080P@120Hz 1x2 HDMI Splitter.support Scaler(one Out 4K@60Hz,Another Out 1080P),RGB 8:8:8(7.1CH Dolby atmos),Decode HDCP,HDR 10(Note:without power adapter) .

(4)The Blue color is ZY-HS20D,HDMI 2.0b and HDCP 2.2,4K@60Hz 1x2 HDMI Splitter.support decode HDCP,audio extractor(3.5mm Jack audio out),RGB 8:8:8(7.1CH Dolby atmos),HDR 10

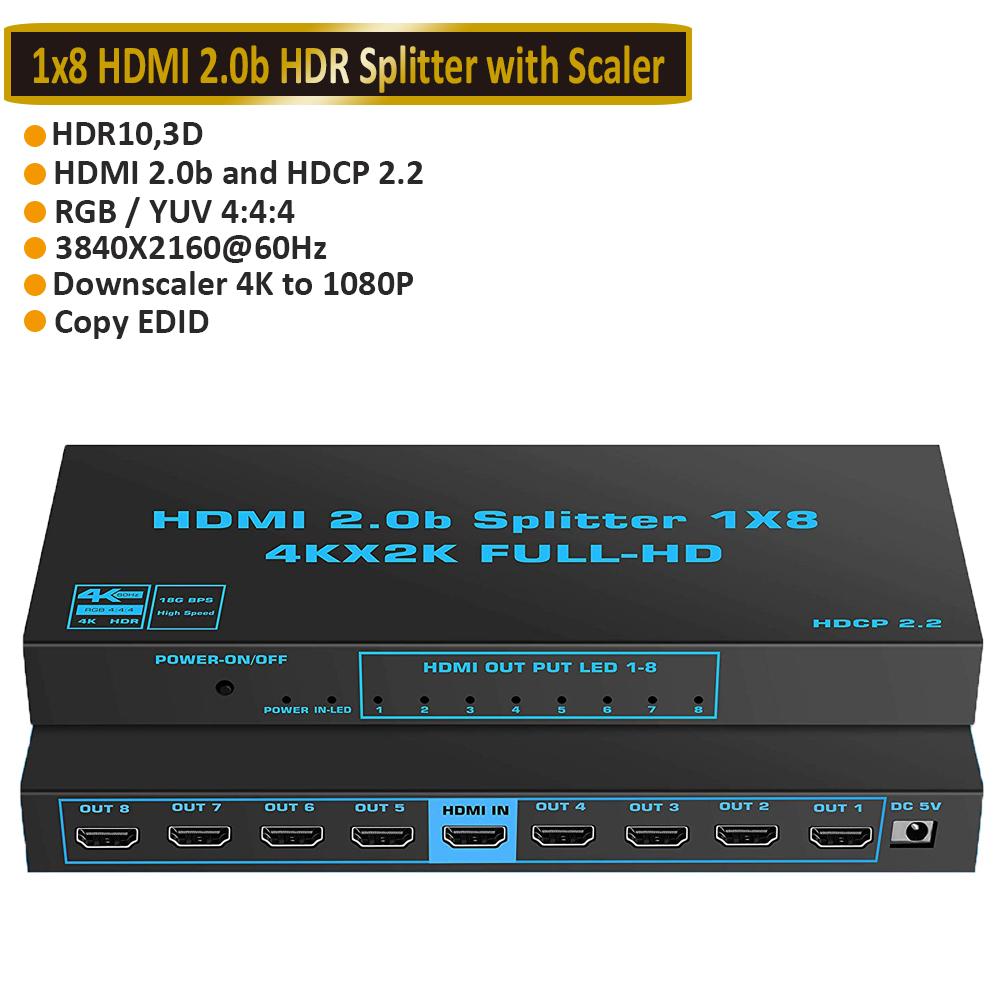

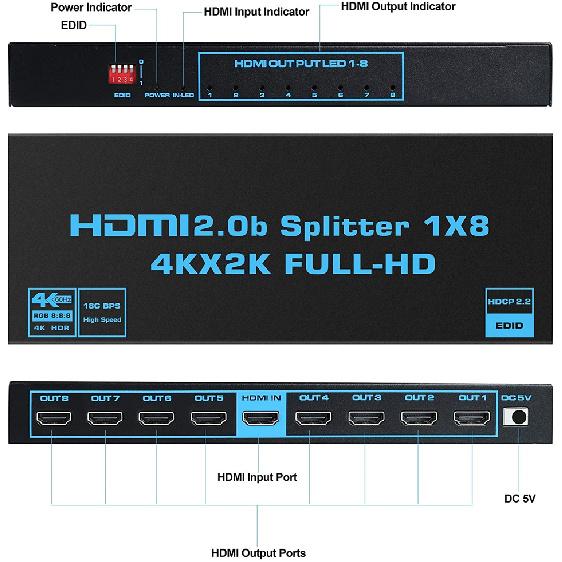

(5)The Grey color isZY-HS208,HDMI 2.0b and HDCP 2.2,4K@60Hz 1x8 HDMI Splitter.support RGB 4:4:4,Copy EDID,HDR 10 .

Features:

★【1X8 HDMI Splitter】1X8 HDMI splitter distributes audio and video signal from a single source to 8 HDMI displays simultaneously Without any delay, flash screen, and reduced video quality. Supports mixed 4K & 1080p display outputs. A 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling. ★【HDMI 2.0b Specification compliant】Our HDMI 2.0b Splitter supports Up to 4Kx2K at 60Hz YUV4:4:4, HDR 4K(RGB 4:4:4),Ultra HD/3D;Supports HDCP2.2 with 18Gbps bandwidth and 30/36 bit deep color. (NOTE:if your TV only supports YUV 4:2:0, even though your TV supports 4K , TV actually displays 1080P rather than 4k) ★【Wide Compatibility】This 4k HDMI splitter is suitable for most devices with standard HDMI interface.Supports LPCM 7.1,Dolby digital, DTS, DTS-HD, DSD and Dolby True HD Audio. Works with PC, projector, TV, PS3, PS4, XBox, Blue-ray, DVD, Monitors etc. ★【Plug and Play】 Navceker 8 port HDMI splitter is easy to operate, just connect your HDMI device and AC adapter,support eight HDMI TVs at the same time to the same video source.HDMI splitter 1X8 support ultra-long-distance video/audio transmission.(Recommended cable length to be no more than 30 feet to get the optimal picture quality.) ★【Unique Design and Warranty】The Unique decent durable metal Material design makes product looks superior,protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation,increasing of service life. Note: For optimum performance, we recommend using high quality, certified HDMI cables (24K Golden HDMI Connector,28AWG or 26AWG) in lengths up to 5m /17ft for all connections. High-speed HDMI cables are required for 4K and 1080p resolutions.

Specification: HDMI version…………………………………………………….....HDMI 2.0b, HDCP 2.2 HDMI resolution……........24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p/4K@60Hz Supports video color format ....…….……..….…........24bit/deep color 30bit, 36bit, 48bit Audio format…….........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR) Max bandwidth…………………….…….......………............……….……………600MHz Max baud rate…………………………….….…………....................……………18.5Gbps Input/Output TMDS signal ………….…………………….................0.5~1.5Volts p-p(TTL) Input/Output DDC signal …………………………….....................……..5Volts p-p (TTL) Input cable distance..…... ……………………….…………………≤17ft AWG28 HDMI standard cable Output cable distance…………………………….………...............≤17ft AWG28 HDMI standard cable Max working current…………………..…………...................………………1200mA Power adapter format Input..……................AC100V-240V (50/60Hz) ; Output: DC 5V/2A Operating Temperature range……............…….…….………………………(-15 to +55℃) Operating Humidity range…….….………................5 to 90%RH (No Condensation) Dimension (L x W x H)……………….….………..........…........................110x60x20(mm)

Packaging contents

1.1x8 HDMI 2.0 Splitter HDCP 2.2 x1 2.AC Power Adaptor x1 3.User x1

tvAdapterType: Splitters Hazmat: None deliveryOptionStandard: Yes name: Navceker HDMI Splitter 1x2 1x4 1x8 4K HDMI Splitter 1 in 2 out 2 Port HDMI Amplifier HDMI Cable Splitter 2.0 For PS4 PS5 Xbox 4 source: asc brand: No Brand preorder: No
