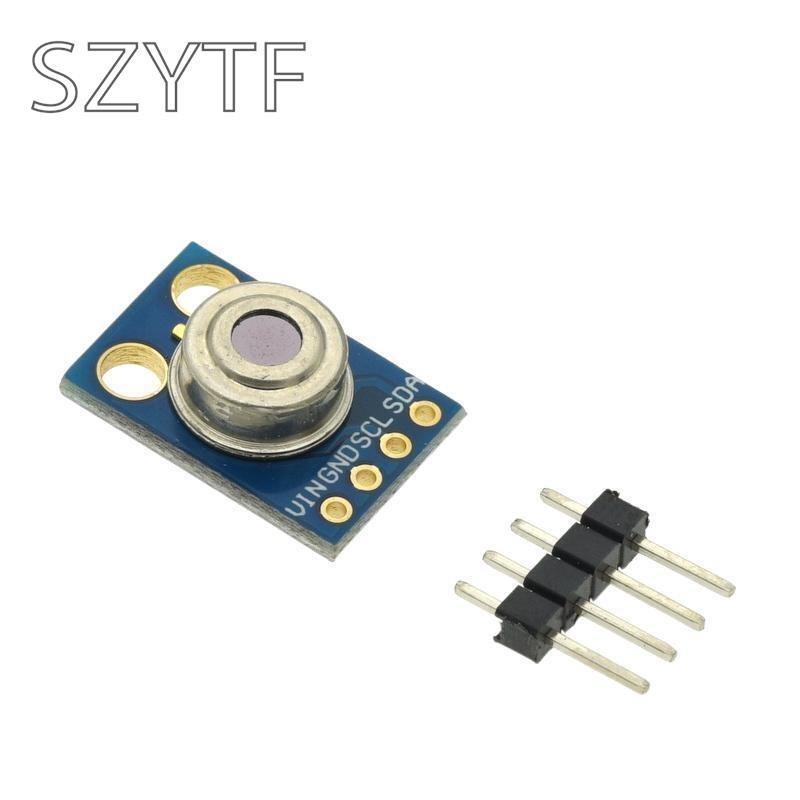

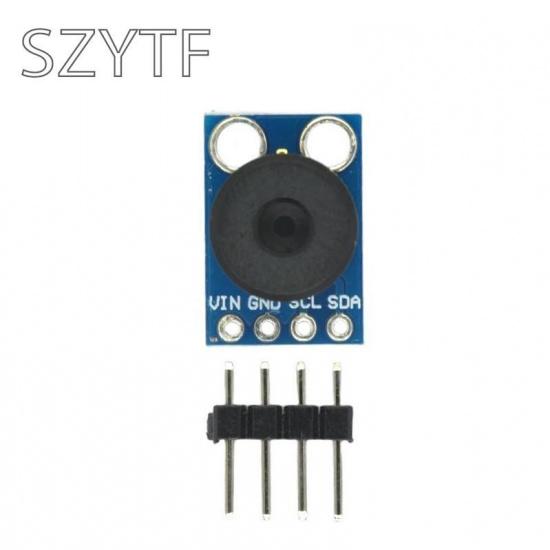

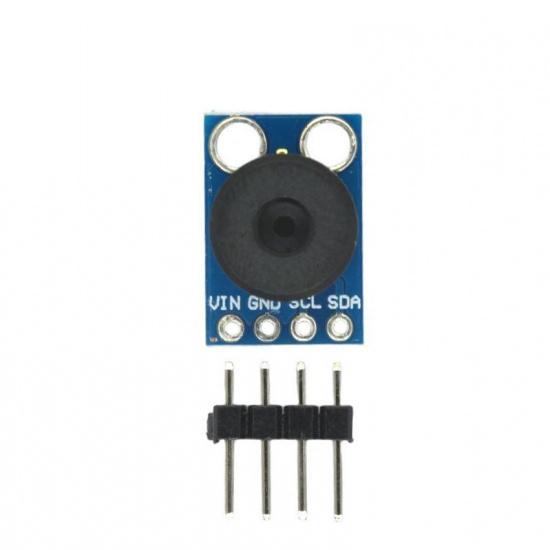

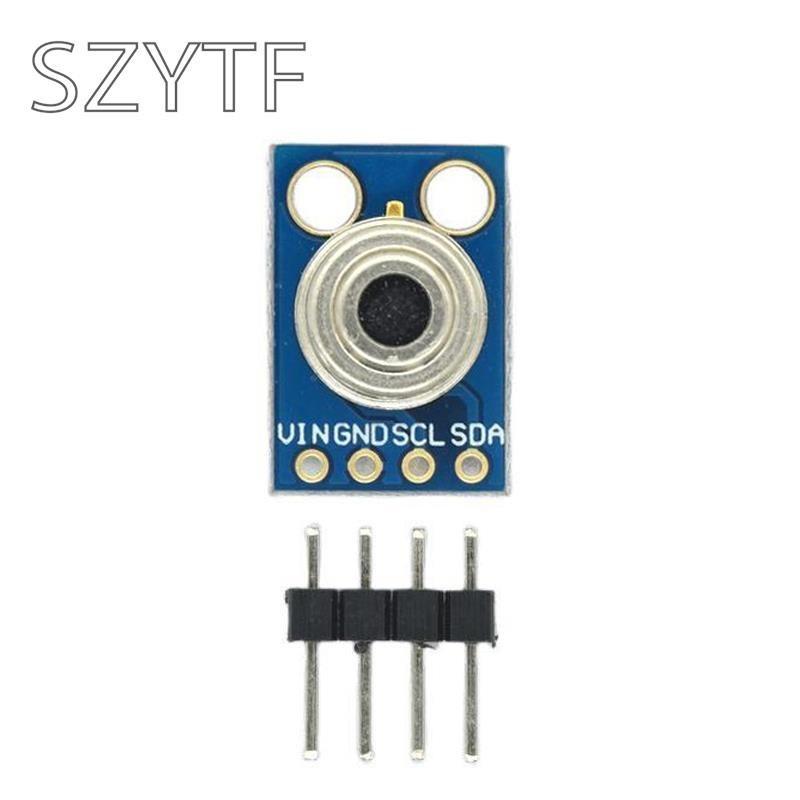

GY-906-BAA/BCC MLX90614ESF Infrared Temperature Sensor Module MLX90614-DCI 7

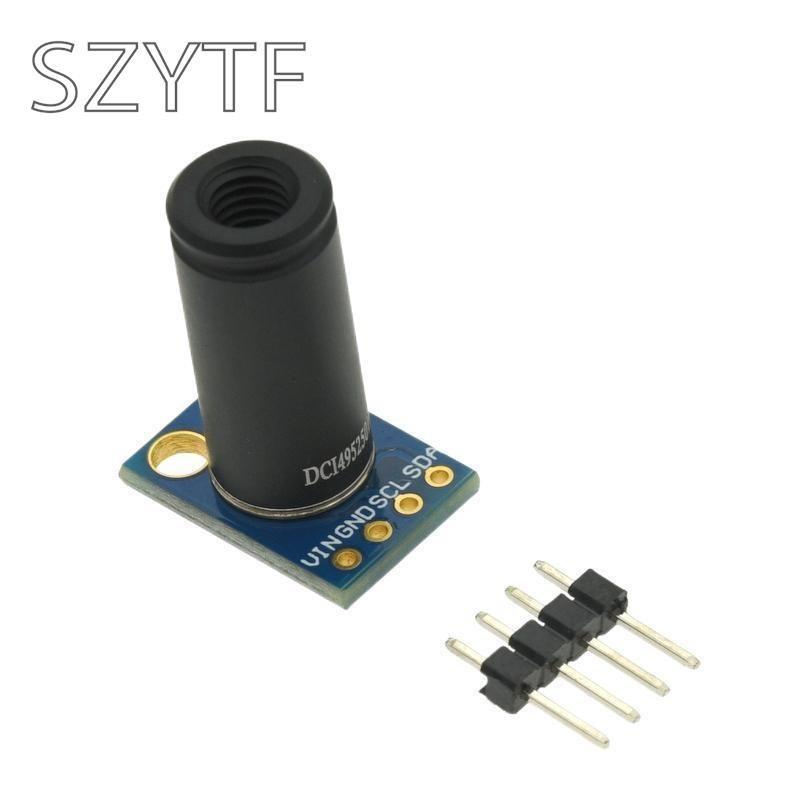

Power supply: 3-5v (internal low dropout voltage regulator) Communication: standard IIC communication protocol The sold MELEXIS MLX90614ESF-BAA-000-TU-ND non-contact infrared thermometer can be used with any microcontroller or can communicate with it through the I2C interface. The sensor comes with a breakout board that contains all the components required for operation and two types of pins. They are not soldered. Please indicate whether you wish to solder one of them. The I2C interface has two jumpers. Depending on your application, you may or may not need to solder, but you don’t need it in most cases. From the manufacturer: MCU-90614 serial port module description introduction: Added body temperature measurement mode output, used as reference body temperature output (for reference only) Measuring distance (when measuring body temperature without compensation): DCI/BCI: within 15cm, the accuracy is about 0.5 degrees higher BCF: within 10cm, the accuracy is about 0.5 degrees higher DCC/BCC: within 5cm, the accuracy is about 0.5 degrees higher BAA AAA: within 3cm the accuracy is about 0.5 degrees higher The forehead can directly output the body temperature value, and can add the compensation adjustment value for calibration and distance adjustment, and save it when the power is turned off.

1. Provide computer software to view data 2. Provide arduino program 3. Provide 51 MCU program 4. Provide stm32 program Power supply: 3-5v Current: 5ma Baud rate: 9600 or 115200 Default automatic output frequency: 10HZ Measuring range: -40…+125°C for ambient temperature -70…+280°C for measuring target temperature

Size: 21.5 length * 23 width * 22.5 height

Features and advantages: Small size and low cost Install on the breakout board with two types of pins: 10k pull-up resistor for I2C interface with optional solder jumper Easy to integrate The factory calibrated temperature range is very wide: -40 ... + 125°C for sensor temperature and -70...Object temperature + 380°C. High accuracy of 0.5°C (medical) calibration in a wide temperature range (Ta and To are both 0...+50°C) 0.02°C measurement resolution Single zone and dual zone version SMBus compatible digital interface Customizable PWM output, can be read continuously Easy to adapt to 8...16V applications Sleep mode to reduce power consumption Different package options for application and measurement versatility Automotive grade Application example: High-precision non-contact temperature measurement Thermal comfort sensor for mobile air conditioning control system Windshield defogging of temperature sensing elements for air conditioning in residential, commercial and industrial buildings Car blind angle detection Industrial temperature control of moving parts Temperature in printers and copiers Control household appliances with temperature control medical insurance Livestock monitoring Motion detection Multi-zone temperature control-up to 127 sensors can be read through a common 2-wire Thermal relay/alarm Body temperature measurement
