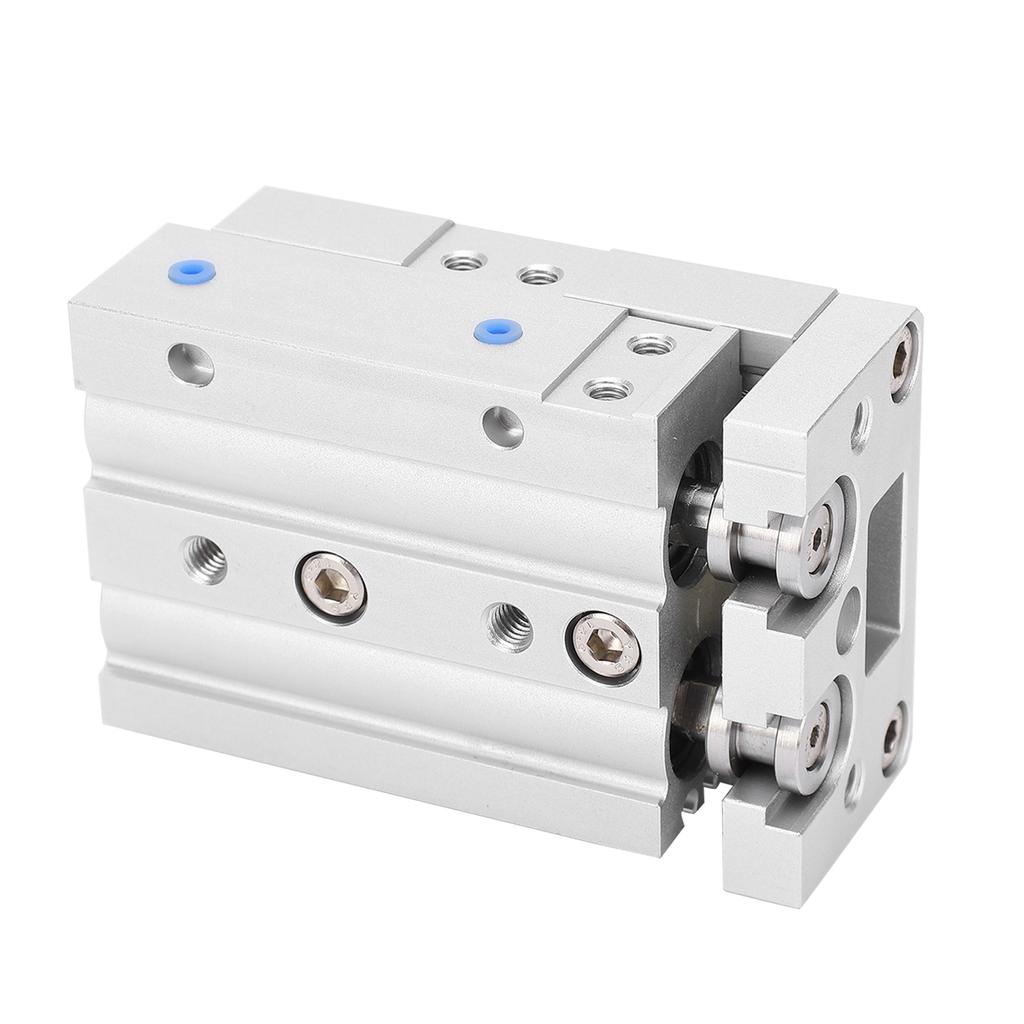

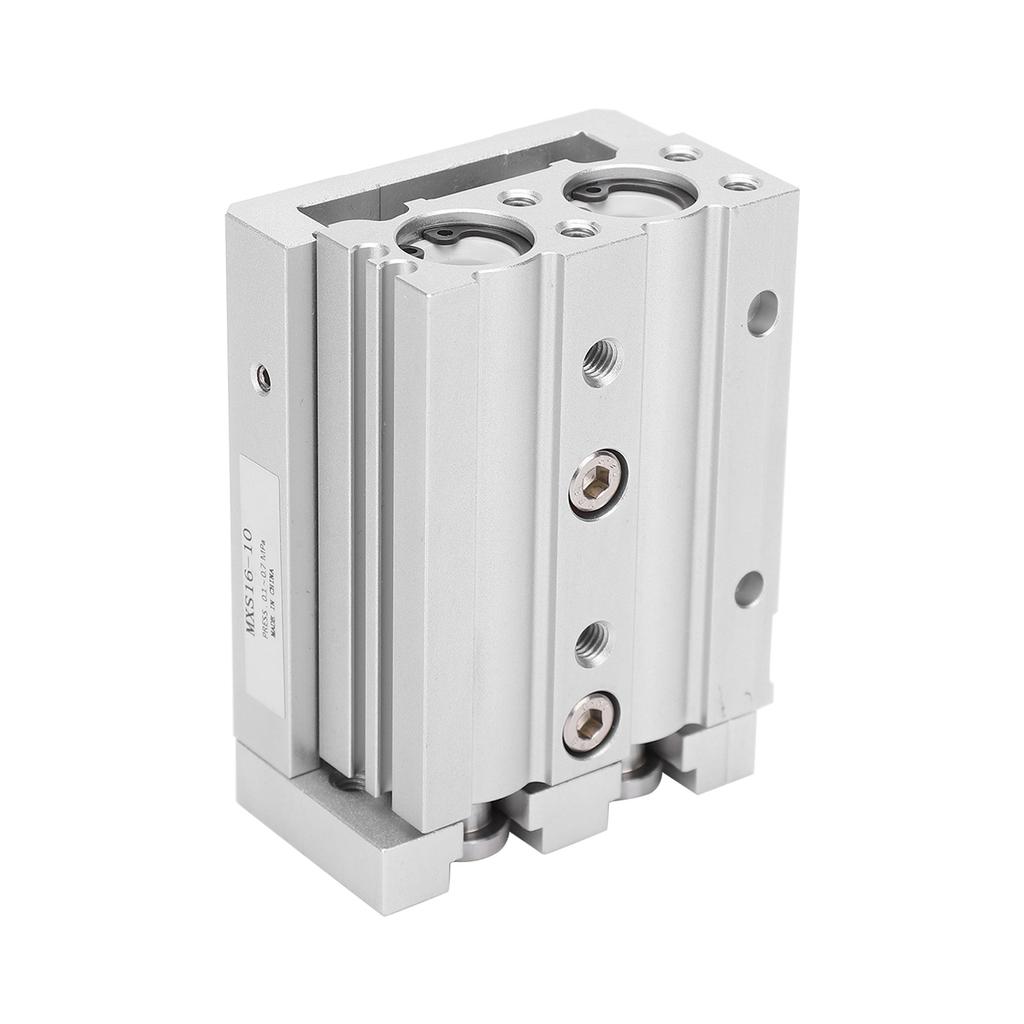

MXS16 Pneumatic Guide Rail Cylinder High Accuracy 16*2mm Bore Size Double Acting

Feature: 1. Double‑cylinder designed, 2 times the output power, thin volume. 2. The combination of cylinder and worktable reduces the overall size. 3. Optional with adjustable stroke device (0‑5mm), meet your differend needs. 4. Crossed liquid column guide designed, small friction force, and there is no gaps between the cylinder and the work table, suitable for precision assembly. 5. Can be installed from three sides, built‑in magnetic rings, can be installed magnetic switch. Specification: Condition: 100percent Brand New Item Type: Pneumatic Air Cylinder Material: Steel Color: As picture shown Model: MXS16 Optional Type: MXS16 10, MXS16 20, MXS16 30, MXS16 40, MXS16 50, MXS16 75, MXS16 100 Optional Stroke: 10mm 0.4in, 20mm 0.8in, 30mm 1.2in, 40mm 1.6in, 50mm 2in, 75mm 3in, 100mm 3.9in Bore: Approx. 16 * 2mm 0.6 x 0.1in Use Fluid: Air Action Mode: Double Acting Maximum Working Pressure: 0.7MPa Minimum Working Pressure: 0.15MPa Environment and Fluid Temperature: 10 +60 celsius (Not Freeze) Piston Speed: 50 500mm s Cushion: Rubber Cushion (standard) Oiling: No Need Takeover Caliber: M5*0.8. Package List: 1 x Pneumatic Air Cylinder
