SVBONY SV215 Zoom Eyepiece FMC Apparent Field of View 3-8mm 1.25-inch 56-degree

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

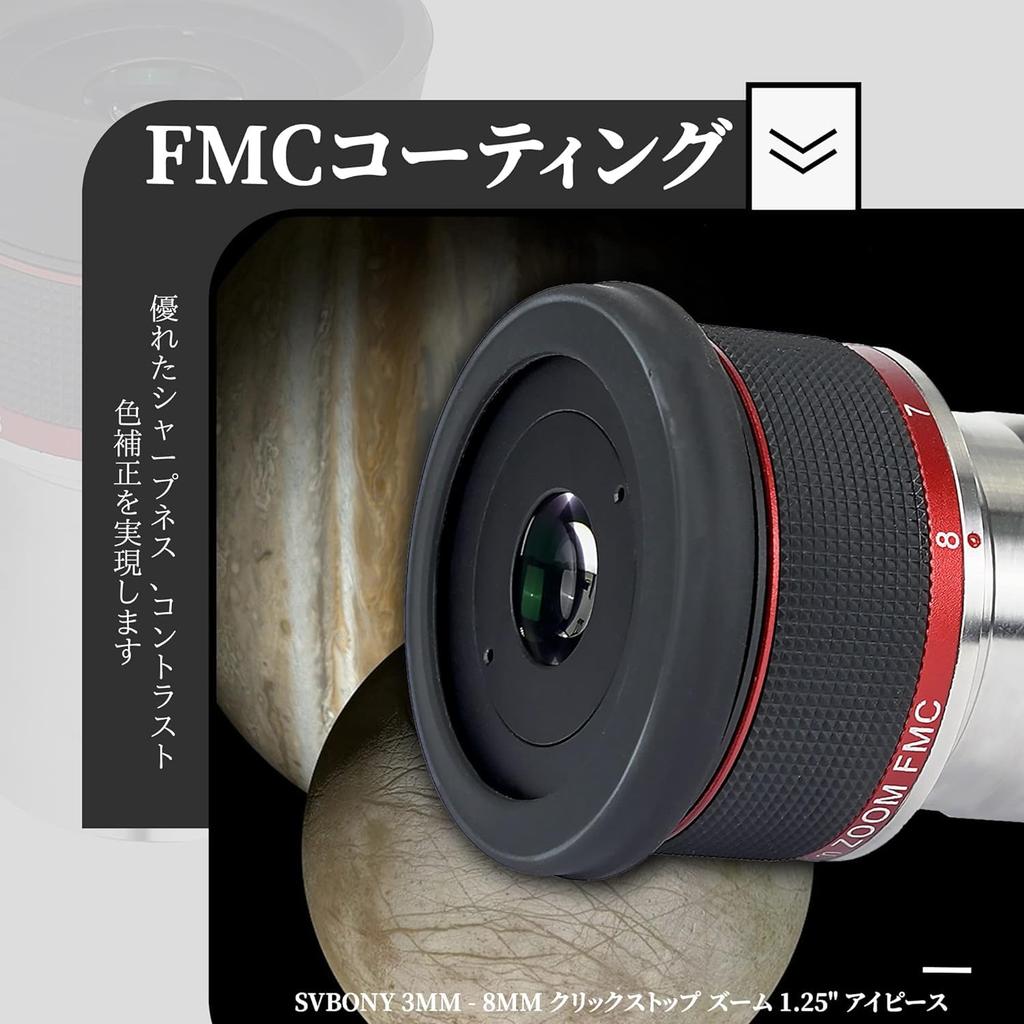

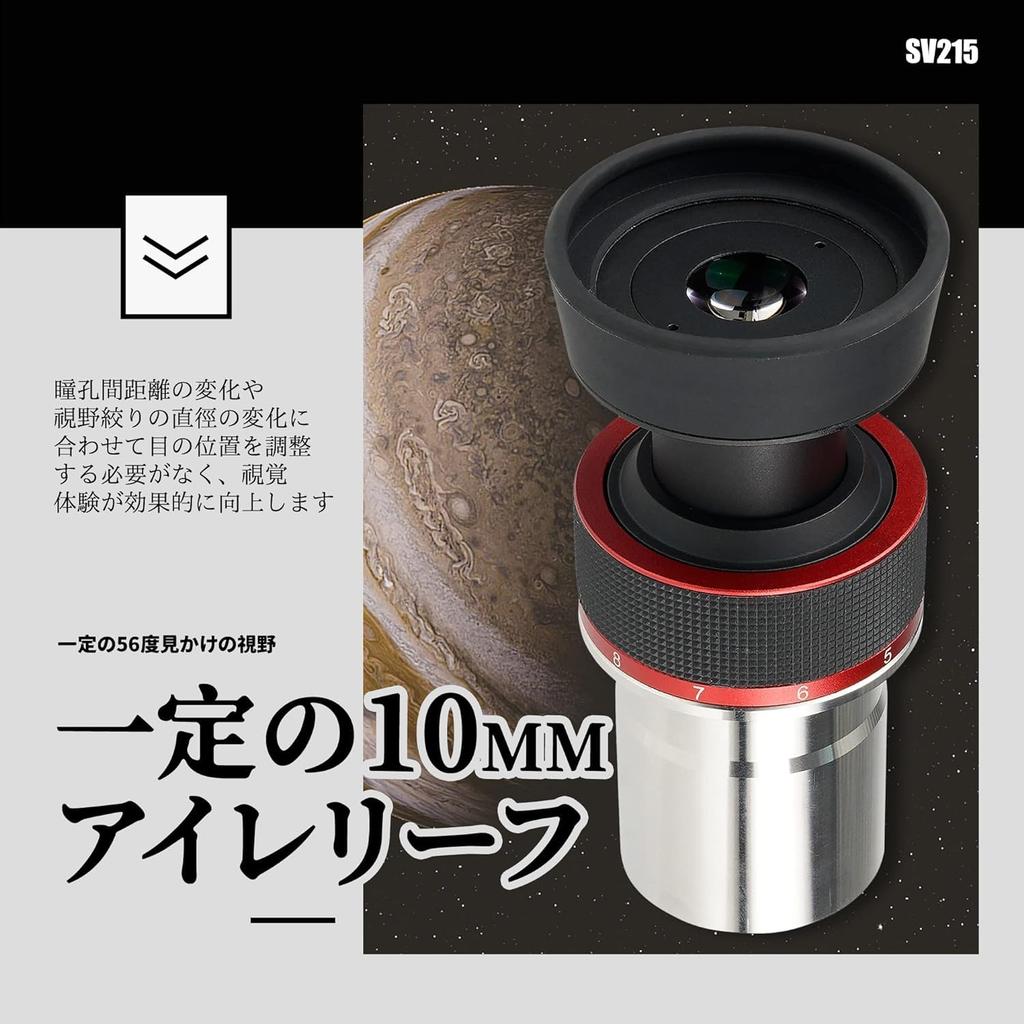

The SV215 zoom eyepiece features a parfocal design. You don't need to refocus regardless of the focal length. (However, slight adjustments may be necessary.) The SV215 zoom eyepiece is primarily suitable for mid-to-high-end short-focal-length refractor telescopes and is mainly for high-magnification observations of the moon and planets. During the zoom process from 3mm to 8mm, the SV215 zoom eyepiece maintains a constant field of view of 56 degrees, which remains unchanged, providing the user with a completely different experience when using the zoom eyepiece. Simultaneously, the exit pupil distance remains unchanged at 10mm. Tube connection length: 36mm. For magnification adjustment, the SV215 continuous zoom eyepiece features a click-stop design. Clicks at 3, 4, 5, 6, 7, and 8 mm allow for quick and precise changes to preset magnifications. The SV215 zoom eyepiece features a lens configuration of 6 elements in 4 groups. Full multi-layer coating provides excellent clarity, contrast, and color correction. The SV215 zoom eyepiece features a foldable, removable, environmentally friendly rubber eye mask and a non-slip rubber protective ring. It has a safety undercut for a secure fit in the eyepiece holder. The interface supports the attachment of standard 1.25-inch filters. If you need to zoom in, rotate the zoom ring above the numbers. Rotating it will also raise the eyepiece. Note: It is normal for the focus ring to be slightly stiff when using it for the first time. It will gradually become smoother after using it a few times. SVBONY SV215 1.25" 3mm-8mm Planetary Zoom Eyepiece High Power for Moon and Planetary Observation Features: 1. The apparent field of view and usable eye relief remain the same even as the focal length changes. 2. Smooth zoom operation with 3, 4, 5, 6, 7, and 8mm click stops allows for quick changes to precise preset magnifications. 3. Parfocal throughout the zoom range (however, fine-tuning may be required). 4. 6-element/4-group, fully multi-coated optics provide superior sharpness, contrast, and color correction. 5. Foldable rubber eyeguard and rubber grip ring. 6. Features a safety undercut for a secure fit in the eyepiece holder. 7. The zoom eyepiece is designed to provide the best balance of contrast, comfortable eye relief, and resolution for important planetary observers, especially those using ultra-premium short-focal-length refractors. Specifications: 1. Brand: SVBONY 2. Model: SV215 3. Focal Length: 3-8mm 4. Barrel size: 1.25 inches. 5. See 1. Field of View: 56° 6. Coating: Fully Multi-Coated 7. Blackened Lens Edge: Yes 8. Eye Relief: 10mm 9. Parfocal: Yes 10. Filter Thread: M28.5x0.6 11. Lens Elements: 6 12. Lens Groups: 4 13. Barrel Type: With Safety Undercut 14. Rubber Eyeguard: Yes Package Contents: 1x SVBONY SV215 3mm-8mm 1.25" Zoom Eyepiece 2x Rubber Dust Covers 1x Mirror Cloth
