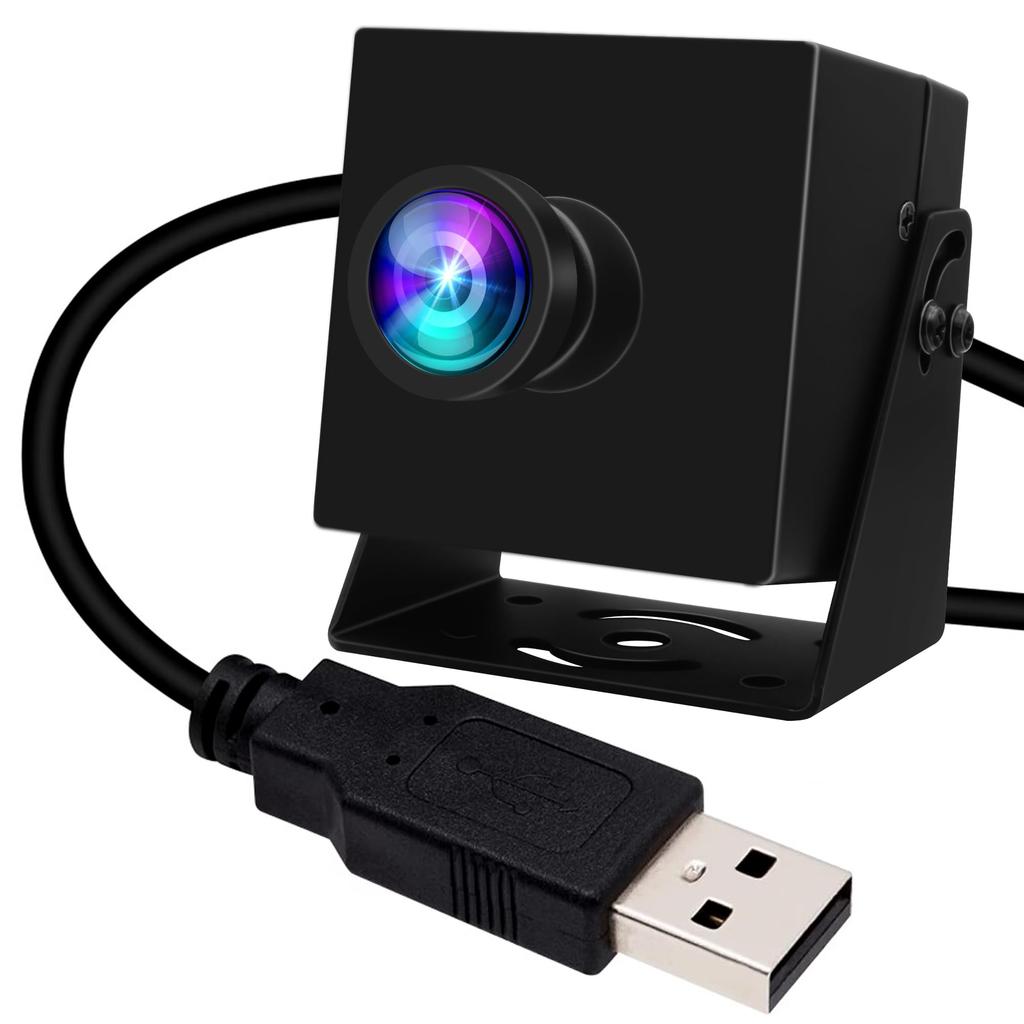

ELP 1080P 120fps USB Camera for Computers 12MP Wide Angle PC Camera 110 Degree Low Distortion Lens Webcam 12MP High Speed Mini UVC Webcam for Desktop

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

12-megapixel USB camera, UHD, maximum resolution 3840x3040. Capture fast-moving objects at high frame rates of 1080P@120fps. The 1/2.3-inch IMX577 sensor achieves high image quality and low power consumption. HD megapixel wide-angle 110-degree low-distortion lens, wide field of view, HFOV approximately 118 degrees. YUY and MJPEG compression formats are optional. Mini lighting: 0.1 Lux. High-speed USB 2.0 interface for high-resolution PC camera interfaces. Small, lightweight, ultra-compact outline, and thin for embedded applications. UVC camera for computers, laptops, PCs, Raspberry Pi, Jetson Nano, etc. Applications: This mini USB camera can be mounted in the most hidden and narrow locations, such as for home surveillance systems, wildlife photography, dashcams, baby cameras, 3D printer monitoring, and mini light burn cameras for laser engraving machines. Model number: ELP-USB12MP01-UH110 Image sensor: SONY IMX577 (1/2.3 inch) maximum. Resolution 3840(H) *3040(V) Sensor size/Image size: 10.7mm x 8.5mm / 5.95mm x 4.71mm Default resolution: 3840 (H) * 2880 (V) Compression formats: MJPEG / YUY2 (YUYV) Resolution and frame rate: 3840x3040 MJPEG@20fps YUY2@1fps 3840X2880 MJPEG@20fps YUY2@1fps 3840X2160 MJPEG@30fps YUY2@1fps 2592X1944 MJPEG@30fps YUY2@1fps 2048X1536 MJPEG@30fps YUY2@3fps 1600X1200 MJPEG@30fps YUY2@5fps 1920X1080 MJPEG@120fps YUY2@5fps 1280X960 MJPEG@120fps YUY2@5fps 1280X720 MJPEG@120fps YUY2@5fps 1024X768 MJPEG@120fps YUY2@5fps 960X720 MJPEG@120fps YUY2@5fps 800X600 MJPEG@120fps YUY2@20fps 640X480 MJPEG@120fps YUY2@30fps 320X240 MJPEG@120fps YUY2@30fps Center resolution 1000LW/PH (center) S/N ratio 24dB Sensitivity 0.65V/lux-sec@550nm Minimum illuminance 0.1lux Shutter type: Electronic rolling shutter / Frame exposure Connection port type: USB 2.0 High Speed AEC/AWB/AGC Support Autofocus support (optional) Adjustable parameters: Brightness, contrast, hue, saturation, sharpness, gamma, white Balance, exposure Lens Parameters: Distortion-free lens, HFOV approximately 118 degrees (other lenses are optional) Power supply and connector: USB bus powered, 4-pin to 2.0mm socket. Power supply voltage: DC 5V Power supply current 240mA Operating temperature -10°C to 65°C Storage temperature -20°C to 85°C USB cable 3M Operating system support: Win XP/Vista/Win7/Win8/Win9/Win10/Win11, etc. UVC-compatible Linux (linux-2.6.26 or later) MAC-OS X 10.4.8 or later UVC compatible Android 4.0 or later
