The camera features a superb Aptina MI5100 image sensor. The five Megapixel USB cameras utilize a high-quality Aptina CMOS MI5100 sensor, effectively delivering sharp images with low color reproduction deviation and high definition. Frame rates: 2592x1944 (15fps), 1920x1080 (30fps).

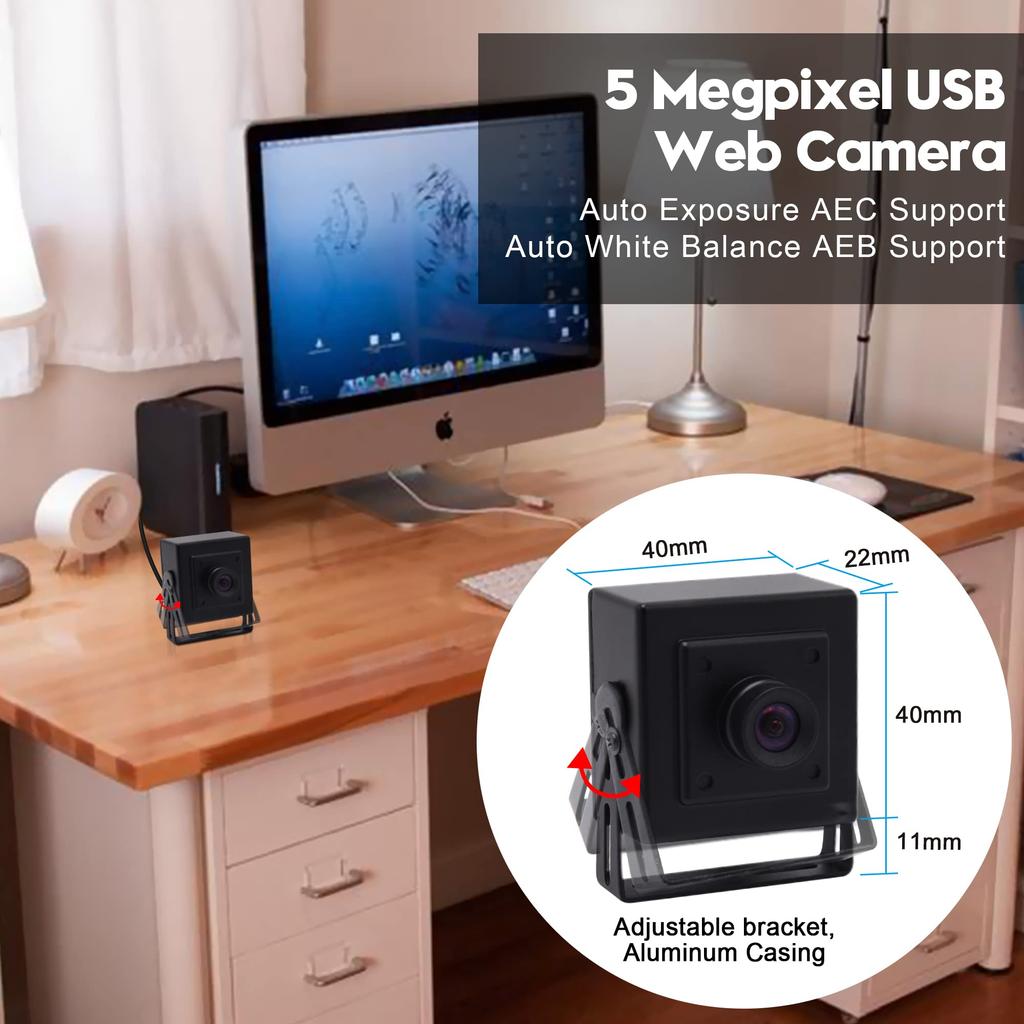

Bracket and metal housing. The 5MP USB web camera with a metal box comes with a 3-meter long USB cable and a swivel bracket, making it easy to place on a tabletop or use it for wall mounting or embedded projects with the included screws.

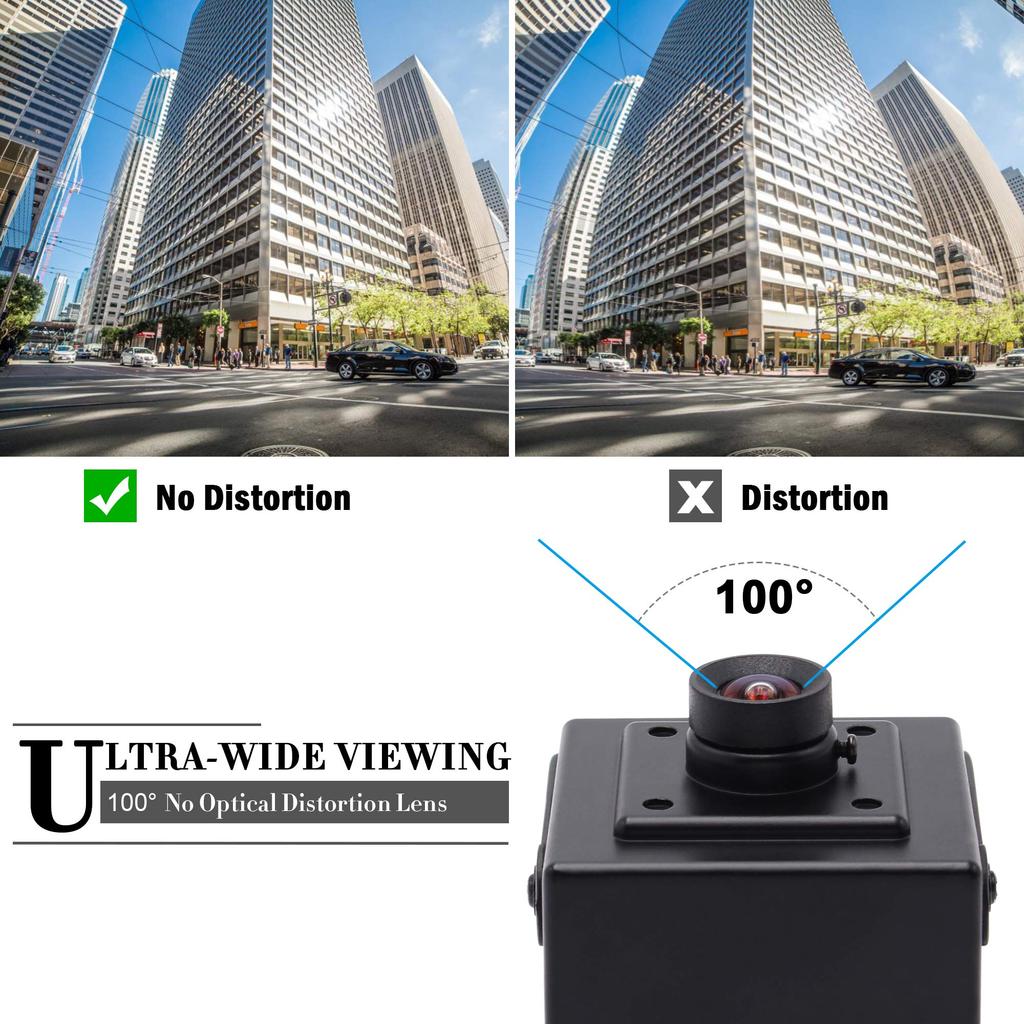

100° No Distortion and Wide Application. This portable USB camera is built with a 100° distortion-free lens that delivers ultra-wide angle without distortion, making it ideal for live streaming, video conferencing, online education, gaming, and security surveillance.
USB 2.0 Plug & Play: This driver-free USB webcam is very easy to use; simply plug the webcam into a USB port. No drivers need to be downloaded or installed. This high-speed USB 2.0 USB camera also supports the OTG protocol (UVC).
High compatibility. 5-megapixel HD USB camera compatible with Windows WinXP/Vista/Win7/Win8, Linux UVC (Linux-2.6.26 or later), and Mac OS X 10.4.8 or later. Works with Android 4.0 or later UVC. Can also be with free software like Yawcam/ContaCam, Windows Ampac, and MotionEyeOS.
USB camera, 5 megapixels: ELP-USB500W05G
Sensor: 1/2.5 inch, Aptina MI5100 CMOS sensor
5.0megapixel, Max.2592(H)x1944(V)pixels
Video format: MJPEG
USB Protocol: USB 2.0 HS / FS
Automatic Exposure Control (AEC): Supported
Auto White Balance AEB: Support
Effective pixels:
2592 (H) x 1944 (V) pixels/2048 (H) x 1536 (V) pixels/
1600 (H) x 1200 (V) pixels/1920 (H) x 1080 (V) pixels
1280 (H) x 1024(V) pixels/1280 (H) x 720 (V) pixels/
1024 (H) x 768 (V) pixels/800 (H) x 600 (V) pixels/
640 (H) x 480 (V) pixels
(Other custom resolutions are available.)
Signal output: USB 2.0 compliant serial data
performance:
2592x1944 @ 15fps MJPEG / 2048x1536 @ 15fps MJPEG
1600x1200 @ 15fps MJPEG / 1280x1024 @ 15fps MJPEG
1920x1080 @ 15fps MJPEG / 1280x720 @ 30fps MJPEG
800x600 @ 30fps MJPEG / 640x480 @ 30fps MJPEG
Voltage DC: 5V
Current: 150mA
Supported OS: "WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above"
If any problem, please feel free to contact us.
We can give you some support
(For example, test software - support Windows systems).
