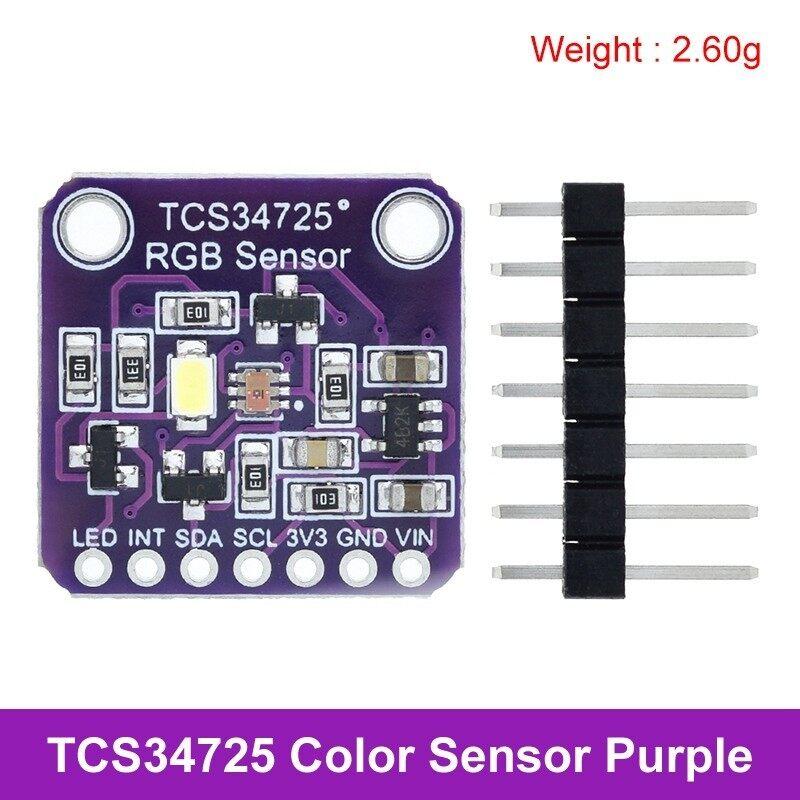

Module Tcs34725 Sensor Color Recognition Rgb Development Board Iic I2c For Arduino Stm32 Two Hole Version

TCS34725 Color Sensor Recognition Module RGB Development Board IIC I2C For Arduino STM32 Two Hole Version

Product characteristics:

1. Red, Green, Blue (RGB), and White Light Sensing with IR Blocking Filter

2. Programmable Analog Gain and Integration Time

3. 3,800,000:1 Dynamic Range

4. Very High Sensitivity ? Ideally Suited for Operation Behind Dark Glass

5. Maskable Interrupt

6. Programmable Upper and Lower Thresholds with Persistence Filter

7. Power Management

8. Low Power ? 2.5-uA Sleep State

9. 65-uA Wait State with Programmable Wait State Time from 2.4 ms to > 7 Seconds

10. I2C Fast Mode Compatible Interface

11. Data Rates up to 400 kbit/s

12. Input Voltage Levels Compatible with VDD or 1.8 V Bus

13. Register Set and Pin Compatible with the TCS3x71 Series

14. Small 2 mm*2.4 mm Dual Flat No-Lead (FN)

Applications

1. RGB LED Backlight Control

2. Light Color Temperature Measurement

3. Ambient Light Sensing for Display Backlight Control

4. Fluid and Gas Analysis

5. Product Color Verification and Sorting
