CCM5D Digital PWM DC Motor Speed Module DC6 12 24V Stepless Speed With Housing Display Duty‑Cycle Controller

Does it include wireless functionality? : No Does it include a Battery? : No High-concerned chemical : none Color : black Output Power : ＜18.65 Model Number : CCM5D Continuous Current(A) : 6A Commutation : Brushless Origin : Mainland China Certification : CE Output Voltage : DC6V-30V

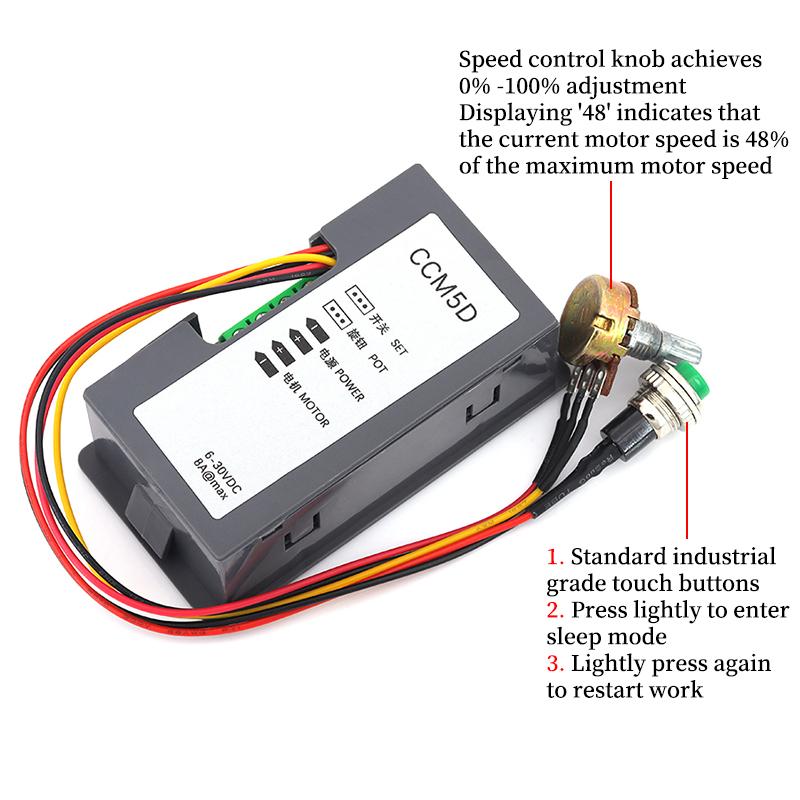

Input voltage: DC 6-24V DC wide voltage input, suitable for 6V/12V/24V DC motors Speed regulation method: PWM pulse width modulation, knob infinitely adjustable duty cycle Display function: digital display screen, real-time display of PWM duty cycle value, intuitive viewing of speed regulation status Structural configuration: Equipped with a plastic shell and protective module, convenient for panel installation and use Output characteristics: DC motor continuous speed regulation, supports motor start stop control, and can achieve 0-100% duty cycle adjustment Applicable motors: DC deceleration motor, water pump, fan, small DC motor Operation method: Adjust the speed with a potentiometer knob and have a built-in power switch Installation: Reserved openings on the shell, suitable for assembly of chassis and equipment panels through openings

CCM5D digital PWM DC motor speed controller with plastic housing and digital display. Wide input voltage DC6‑24V, compatible with 6V 12V 24V DC motors, water pumps and fans. Real‑time digital tube display shows PWM duty‑cycle value, easy for parameter observation. Knob stepless adjust duty cycle from 0‑100%, built‑in power on‑off switch. Complete with protective housing for panel mounting, good for DIY equipment and small automation projects. Notice: Do not exceed rated continuous current; add flyback diode for inductive DC motor load.
