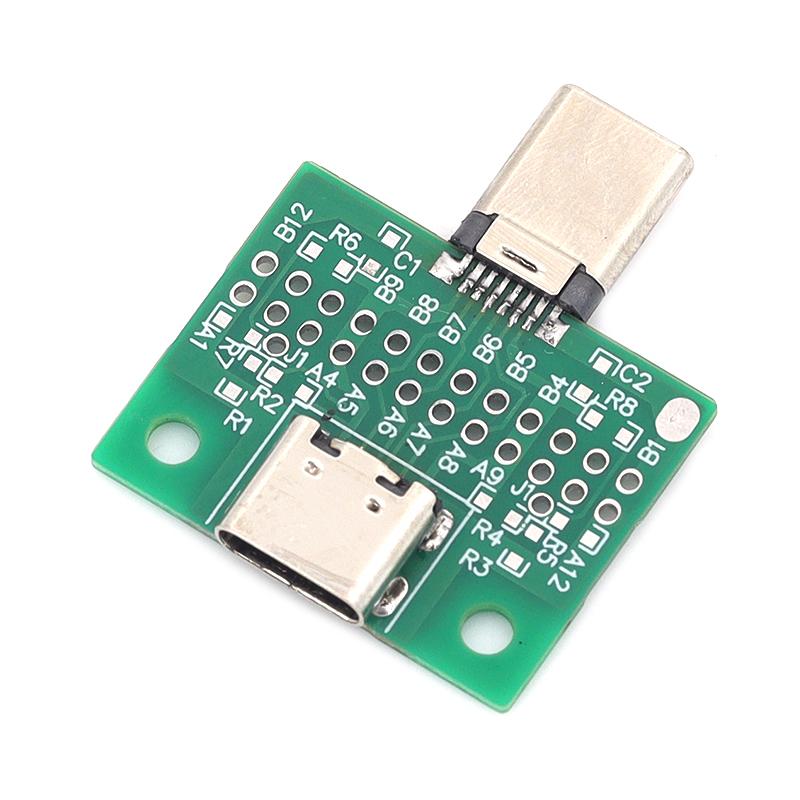

Type-C Male Female Test Board USB2.0 16P Full Pin Out PCB Male To Female Adapter Earphone Extension Test Module

Semi-finishedproduct : No High-concerned chemical : none Electronic : No DIY Supplies : Electrical Brand Name : Stlxy Origin : Mainland China

Interface configuration: Type-C male head+Type-C female seat, male and female direct connection structure Protocol standard: USB 2.0 (up to 480Mbps), supports USB 2.0 data transfer, Type-C analog audio headphone signal Pin specifications: All 16P pin positions are independently led out to solder pads, and each signal is separately exposed for easy measurement and wire flying Product structure: Male and female up and down alignment layout, signal one-to-one correspondence through no switching chip, passive adapter board Functional applications: wire conductivity testing, audio headphone signal debugging, Type-C wire repair, DIY wire modification, oscilloscope signal capture Pad design: Large square pads for convenient multimeter probe measurement, wire soldering, and fly wire modification Applicable signals: D+/D - data, VBUS power supply, GND, CC, SBU1/SBU2 audio differential signal Reminder: Only USB 2.0, does not support USB 3.0 high-speed data, PD fast charging communication debugging Equipped with Type-C male plug and Type-C female socket, straight-through passive adapter design. Compliant with USB2.0 specification up to 480Mbps, support USB2.0 data and Type-C analog earphone audio signal. Complete 16 pins fully broken out to independent solder pads for convenient measurement and wire modification. Passive straight connection without built-in IC, original signal transmission with little distortion. Large-size solder pads support multimeter probe testing, soldering and flying wire modification. Ideal fixture for cable continuity test, earphone audio debugging, Type-C cable repair and signal capture. Suitable for maker experiment, electronic maintenance workshop and lab signal detection work. Notice: Only USB2.0 version,NOT support USB3.0 high speed and PD communication debugging. label:yes
