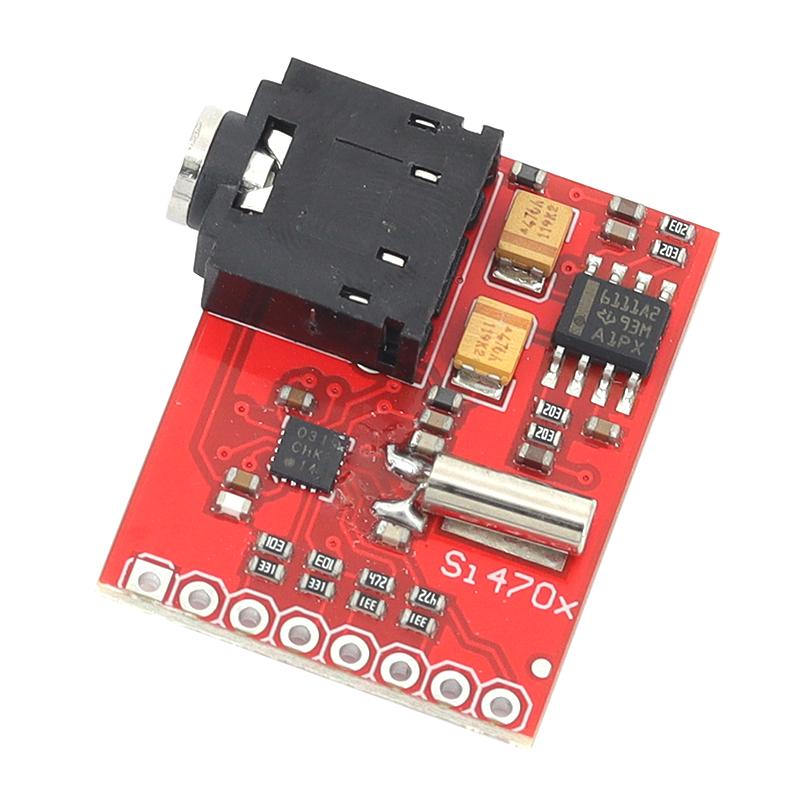

MCU470 Si4703 FM Receiver Development Board FM Tuner Evaluation Module Available in Red / Purple PCB

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Model Number : MCU-470 Si4703 DIY Supplies : Electrical Brand Name : Stlxy Origin : Mainland China

Description

CJMCU-470 The new version is being built with a surface mount headphone jack. This page is for reference only.

This is an evaluation board for the Silicon Laboratories Si4703 FM tuner chip includes an amp and a headphone jack, and that's everything you need to get up and running! Beyond being a simple FM radio, the Si4703 is also capable of detecting and processing both Radio Data Service (RDS) and Radio Broadcast Data Service (RBDS) information. The Si4703 even does a very good job of filtering and carrier detection. It also enables data such as the station ID and song name to be displayed to the user.

Using this board we are able to pick up multiple stations just as well as with a standard FM radio. The board breaks out all major pins and makes it easy to incorporate this great chip into your next radio project. Also, by plugging headphones into the 3.5mm audio jack, you effectively use the cable in your headphones as an antenna! Therefore, this board does not require an external antenna if using headphones or a 3.5mm audio cable longer than 3 feet.

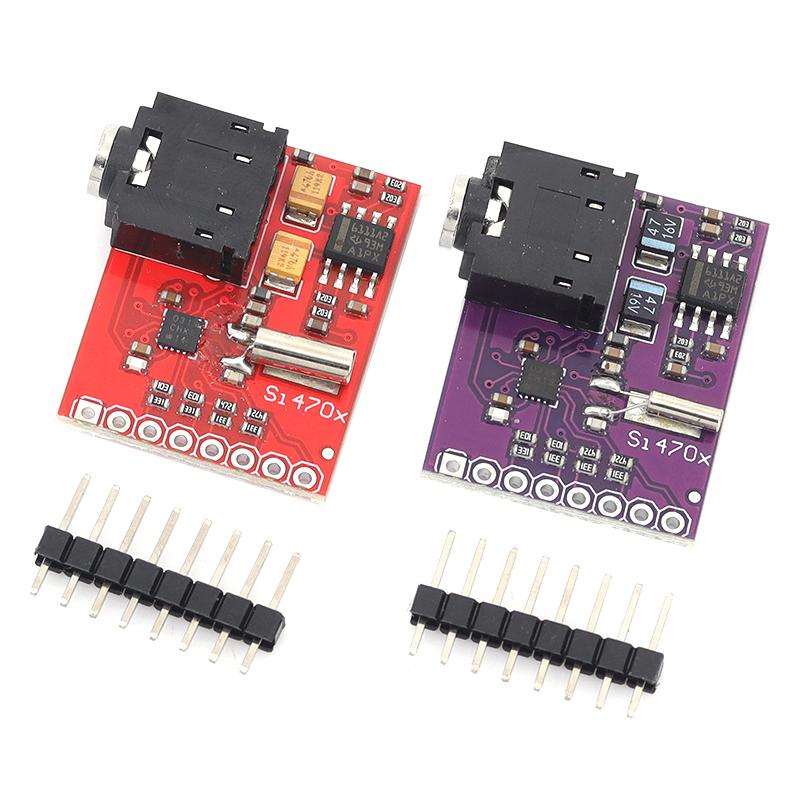

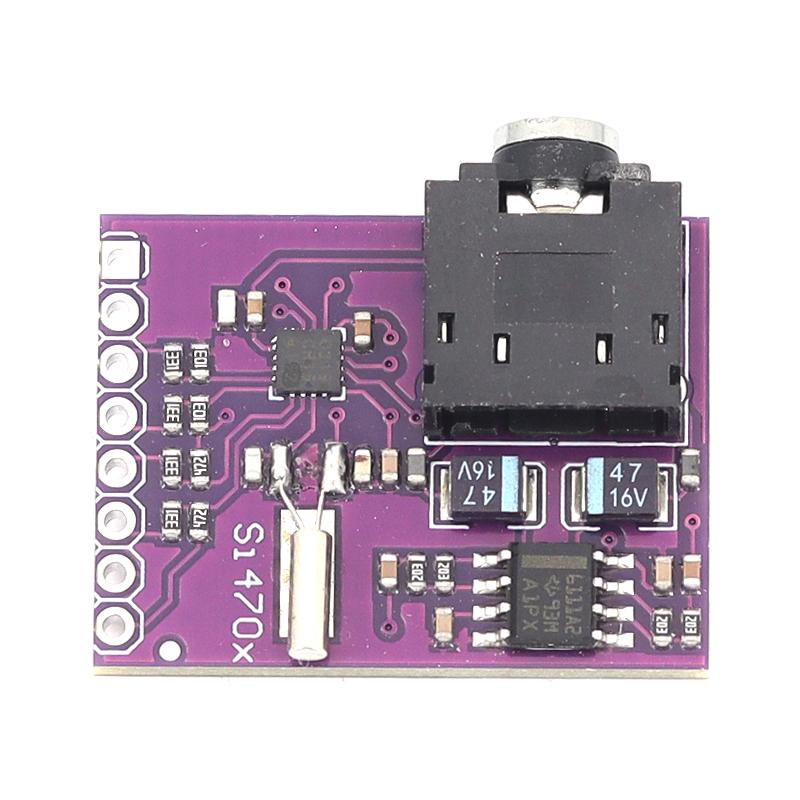

Core chip: Si4703 digital low to medium frequency FM radio tuning chip, supporting RDS/RBDS radio data decoding Frequency range: 76MHz to 108MHz, covering mainstream FM radio frequency bands in China, Europe, America, Japan, and South Korea Communication interface: Standard I2C (2-Wire), compatible with various MCUs such as Arduino, ESP32, STM32, and AVR Hardware version: Available in two versions: red PCB and purple PCB, with fully compatible pin definitions Audio interface: onboard 3.5mm audio mother socket, stereo analog audio output; The headphone cable can directly serve as a receiving antenna Core functions: automatic channel search, AFC automatic frequency control, AGC automatic gain, RSSI signal strength detection, stereo/mono switching, soft mute Power supply voltage: DC 2.7V~5.5V, typical recommended 3.3V power supply, low-power standby suitable for battery devices Pin resources: VCC, GND, SDA, SCL, RST reset pins all lead out, 2.54mm standard pin bank Development Resources: A large number of open-source driver routines that support reading radio station names, program information, and text broadcast content

Main IC: Si4703 digital low-IF FM tuner chip with built-in RDS/RBDS broadcast data decoding function. Frequency range 76MHz~108MHz, supports FM broadcast standards of China, Europe, America and Japan. Standard I2C 2-wire interface, compatible with Arduino, ESP32, STM32 and other mainstream microcontrollers. Two PCB versions available: red solder mask and purple solder mask, fully pin-to-pin compatible. Onboard 3.5mm stereo audio jack; headphone cable can be used as receiving antenna directly. Rich built-in functions: auto station seek, AFC, AGC, RSSI signal detection, stereo/mono switch, soft mute. Wide supply voltage DC 2.7V~5.5V, low power consumption for battery-powered portable projects. Standard 2.54mm pin header with VCC, GND, SDA, SCL, RST breakout. Abundant open-source libraries for quick development. label:yes
