High-concerned chemical : none
EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc
Material : Acrylic
Switch Type : Push Button Switch
Brand Name : Stlxy
Origin : Mainland China
Working voltage: DC 5V~24V wide voltage input, compatible with ternary lithium batteries, 12V/24V car, DC power adapter
Gear specifications: Three versions available: 10A/30A/70A, to meet different power load requirements
Working logic: bistable self-locking (flip mode)
Single press: Output conduction; Press again: Output disconnected, no need to hold down the button continuously
Core advantage: Almost no maintenance current after steady-state locking, suitable for long-term duty equipment of lithium batteries, avoiding continuous power consumption
Switching device: low internal resistance power MOS transistor, small conduction voltage drop, lower temperature rise during high current operation
Button configuration: External touch button terminal, supporting extended lead installation buttons; Micro switches can also be directly welded
Protection function: Built in load anti reverse connection, output anti short circuit protection (depending on version), suppresses surge impact
Applicable loads: LED lighting, water pump, fan, DC motor, vehicle electrical appliances, outdoor energy storage equipment

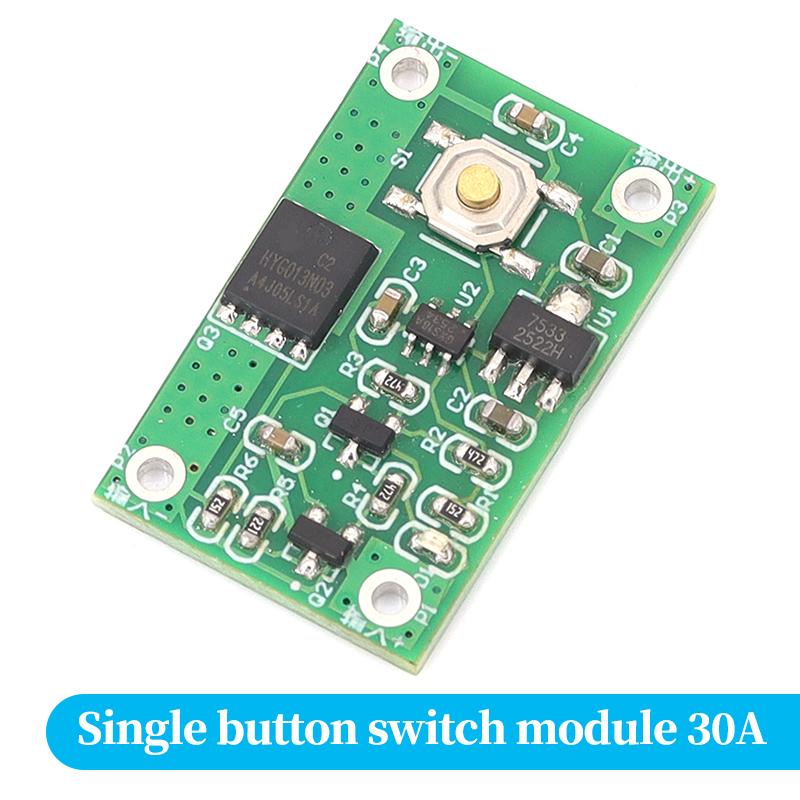

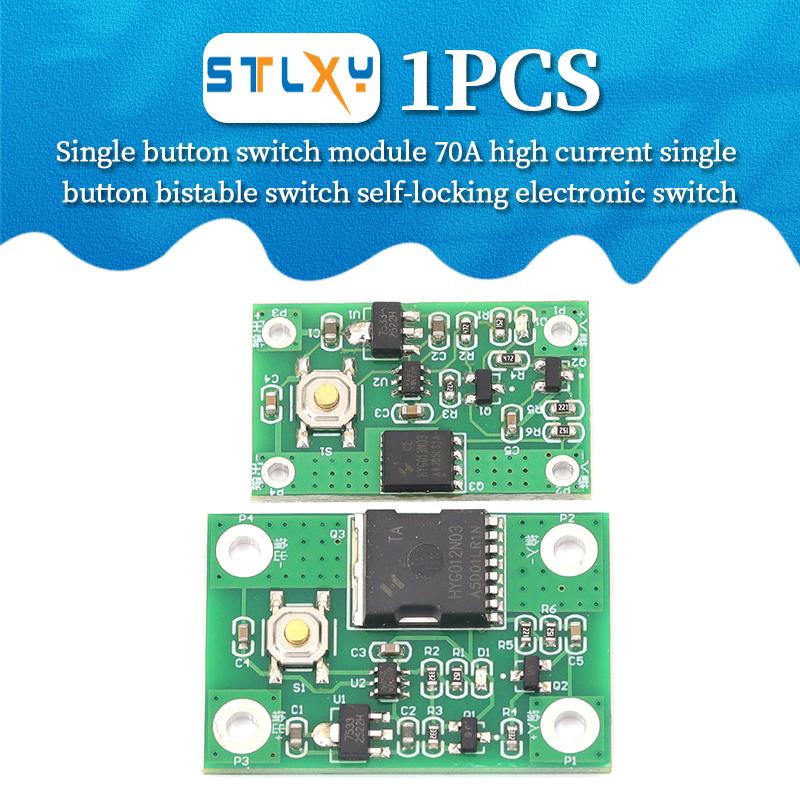

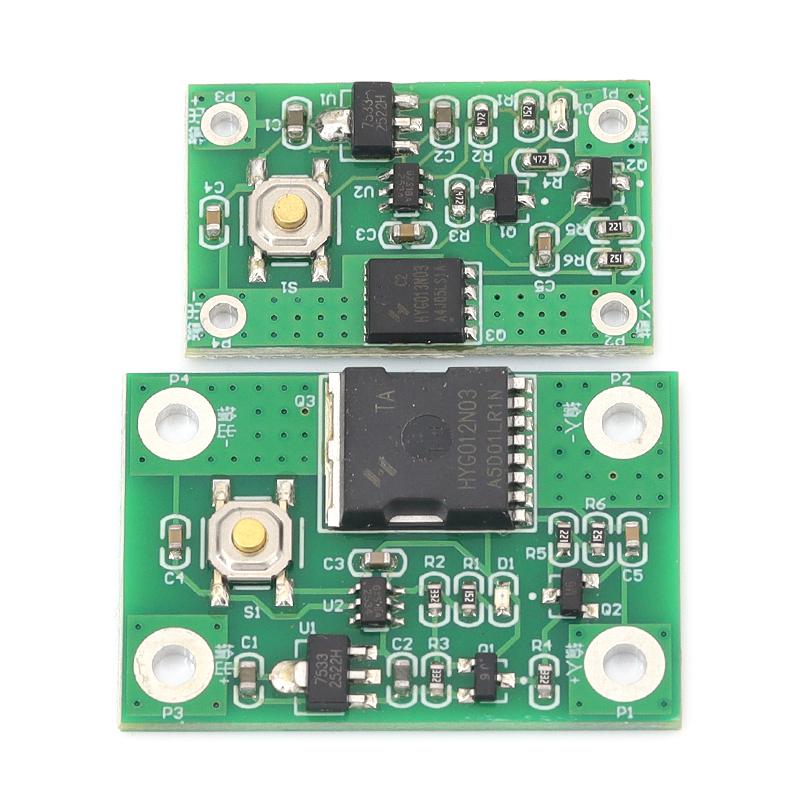

Installation features: Compact PCB with reserved fixing holes for easy insertion into battery compartments and internal modifications of equipment casings
Operating voltage range DC 5V~24V, compatible with lithium battery packs, 12V/24V vehicle and DC adapters.
Three current versions available: 10A, 30A, 70A for different power load requirements.
Bistable toggle logic: press once to turn ON, press again to turn OFF, latching status without holding the button.
Ultra-low standby consumption after state lock, ideal for battery-powered equipment to avoid unnecessary power drain.
Adopt low internal resistance MOSFET to minimize voltage drop and temperature rise under high current.
External touch button terminals support extended wiring for remote button installation.
Suitable for LED lights, water pumps, fans, DC motors, vehicle equipment and outdoor energy storage devices.
Notice: Do not exceed rated continuous current; add heat sink for long-term full load of 70A version.
