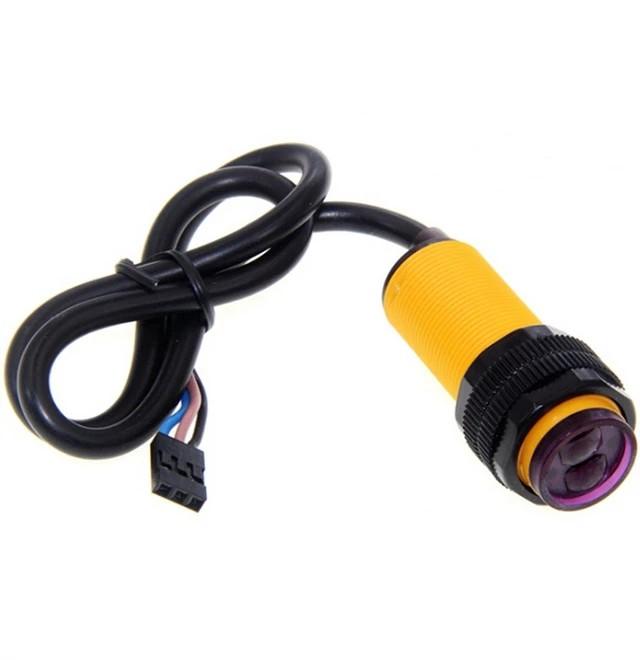

StlxyE18-D80NK infrared obstacle avoidance photoelectric sensor intelligent automotive robot switch detection range 3-80cm

High-concerned chemical : none EU LVD Voltage : Low voltage: Below 50Vac or 75Vdc Material : Plastic Certification : NONE Switch Type : Photoelectric Switch Model Number : Smart Car Robot E18-D80NK Item Type : SWITCHES Brand Name : Stlxy Is Smart Device : no Origin : Mainland China

Description:

This is a set of transmitter and receiver in one of the photoelectric sensor. The detection distance can be adjusted upon request. The sensor has a detection distance and the visible light interference,cheap,easy to assemble,easy to use features of robot obstacle avoidance,and assembly line piece can be widely used in many occasions.

Electrical Characteristics: U: 5VDC I: The 100mA Sn :3-80CM

Size:

Diameter: 17MM Sensor length: 45MM Lead Length: 45CM

Applications:

A production line goods automatic counting device 2,multi-functional reminder 3,the maze robot Red: connected 4.5-5V power supply high

Yellow: connected microcontroller output TTL level to the microcontroller

Green: GND 0V power low Photoelectric sensor (photoelectric switch) NPN normally open Model: E18-D80NK the.

The technical parameters of the photoelectric switch E18: 1,the output current,output,DC / SCR / Relay Control: 100mA/5V supply 2 Current consumption DC <25mA 3,response time <2ms 4,point angle: more than15 °,the effective distance is adjustable from 3-80CM

5,To detect objects: a transparent or opaque body 6,the working environment temperature: -25 °C ~ 55 °C

7,the standard detection object: sunlight 10000LX is the following incandescent 3000LX below 8,Case Material: Plastic label:yes
