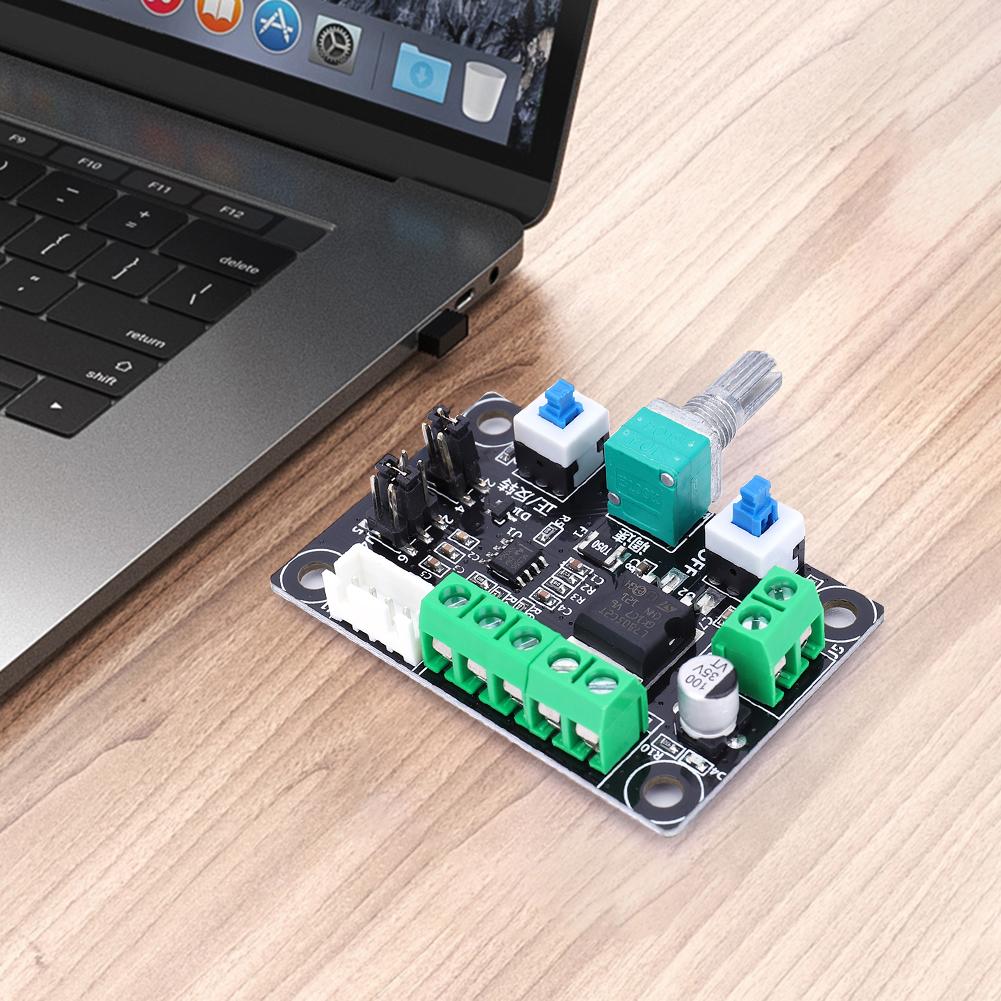

Stepper Motor Controller Board Speeds Regulation Stepping Motor Drive Controller Positive Negative Rotation Control for MKS OSC

High-concerned chemical : none Type : Stepper Controls & Drives Origin : Mainland China Brand Name : ALLOYSEED Stepper Motor Controller Board : Stepping Motor Drive Controller PWM Signal Generating Controller : Stepper Motor Pulse Signal Generating Module Stepper Drive Control Board : PWM Controller Module Board Origin : Mainland China Type : Module Condition : New Model Number : Stepper Motor Controller Board Input Voltage : 8~24V Frequency Paradigm : High 5.4k-160khz, Medium 540-16.6khz, Low 80-2.4khz Signal Type : Pwm/Pulse Direction : Clockwise/Counterclockwise Size : 58.00x51.00x13.00mm/2.28x2.01x0.51inch

PWM Signal Generating Controller Speeds Regulation Stepper Motor Pulse Signal Generating Module Positive Negative Rotation Control 12-24V Electronic Components Features: 1. User-Friendly:This stepper motor driver controller module offers a simple and easy-to-use solution for controlling the speed, direction, and PWM signal generation of your stepper motor system. 2. Safe and Reliable:With a wide input voltage range of 8-24V and built-in safety features, this stepping motor controller module ensures safe and reliable operation for your stepper motor control needs. 3. Comprehensive Functionality:Featuring adjustable frequency signals (high: 5.4k-160kHz, medium: 540-16.6kHz, low: 80-2.4kHz) and the ability to generate both pulse and PWM signals, this PWM signal generating controller module provides comprehensive functionality to meet different control requirements. 4. Direction Control:This stepper motor pulse signal generating module allows for easy switching between clockwise and counterclockwise rotation, giving you full control over the direction of your stepper motor. 5. Compact Size:With dimensions of 58.00x51.00x13.00mm (2.28x2.01x0.51 inches), this stepper drive control module is compact and space-saving, making it suitable for various applications where size constraints may be a concern. Specification: Origin: Mainland China Type: Module Condition: New Model Number: Stepper Motor Controller Board Input Voltage: 8~24V Frequency Paradigm: High 5.4k-160khz, Medium 540-16.6khz, Low 80-2.4khz Signal Type: Pwm/Pulse Direction: Clockwise/Counterclockwise Size: 58.00x51.00x13.00mm/2.28x2.01x0.51inch Product Description: This module is a pulse generator module, supplying the stepper driver as a signal. If you want to control the stepper motor, you must also be equipped with a driver to do so. This simple controller + stepper driver + stepper motor + DC power supply can form a set of simple control platform. Controller has a high 5.4k-160khz, 540-16.6khz, low 80-2.4khz a total of three kinds of frequency signals can be selected with a jumper. It can generate pulse signals or PM signals, which can be selected by jumper wires.

Note: Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! Please allow 1-2cm measuring deviation due to manual measurement.

1*Stepper Motor Controller Board  label:yes
