High-concerned chemical : none
Type : Voltage Regulator
Brand Name : JETTING
Origin : Mainland China
Condition : New
Description:

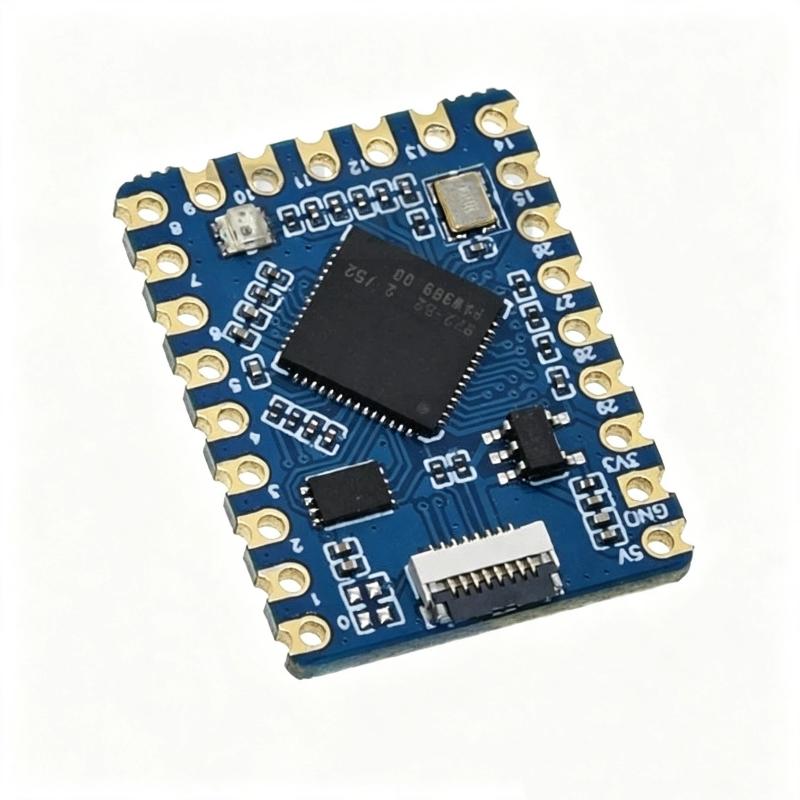

RP2040-TINY Mini Development Board is a compact, high-performance embedded development component powered by the official RP2040 chip, perfect for DIY electronic projects, IoT development, STEM education and small embedded system creation.
Features:
1. High-Performance Processing Core: Original Raspberry Pi RP2040 chip with dual-core Arm Cortex-M0+ processor running up to 133MHz, integrated with 264KB on-chip and 2MB on-board flash memory, supports stable operation of and C/C++ programs, meets the computing demand of most small and medium electronic development projects, greatly improves development efficiency.
2. Durable PCB Substrate: High-grade FR-4 fiberglass printed circuit board, features excellent high temperature resistance, insulation performance, anti-corrosion and stable conductivity, extends the life of the development board, adapts to long-time working under various harsh working environments.
3. Independent USB Adapter Board: Equipped with independent USB-C interface adapter board with gold-plated contacts, supports stable high-speed data transmission and reliable power supply, users can complete program burning and power supply directly without additional soldering operation, reduces development threshold for beginners.
4. Pre-soldered Expandable Pins: Gold-plated pre-soldered GPIO pins, support multiple communication protocols including I2C, SPI, UART, PWM and ADC, users can easily connect all kinds of sensors, display modules and external peripherals, greatly expand the application range of the development board.
5. Stable Matching Connection Cables: Equipped with 2 high-quality anti-interference flat data cables, supports stable signal transmission between the main board and adapter board, users do not need to purchase additional connecting accessories, saves development cost and preparation time.
6. User-friendly Function Buttons: Integrated RESET and BOOT physical function buttons on the adapter board, supports one-key reset and program entering burning mode switching, no need to operate through wiring, simplifies development operation steps.
Specifications:
Category: Microcontroller Development Board
Material: Metal
Size: As the picture shows
Color:As the picture shows
Application: Embedded system development, IoT project construction, DIY electronic creation, STEM education, wearable device development, small sensor control projects
Quantity:1/2/3 Set

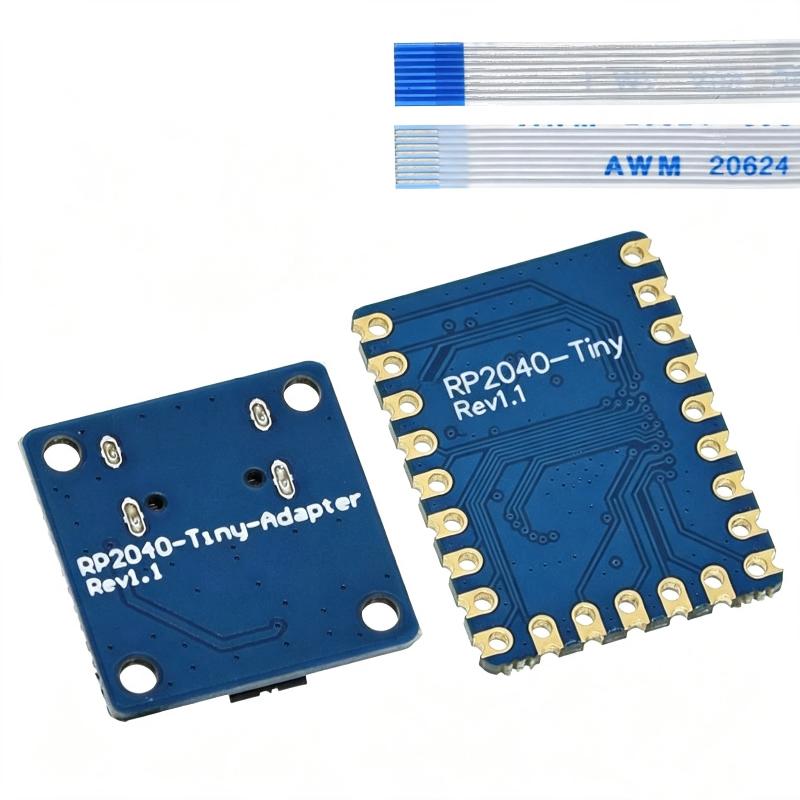

(1 Set= 1 × RP2040‑Tiny Main Board, 1 × RP2040‑Tiny‑Adapter Breakout Board, 2 *2 × FFC Flat Cables)
Note:
1. Please note that the photo does not show actual size, please refer to Description for size details.
2. Please allow differences due to manual measurement, thanks.
3. Due to the difference between different monitors, the image may not reflect the actual color of the item.
label:yes
