DC 9-150V to DC 5V Step-down DC-DC Buck Converter Wide Voltage Regulator Power Module Power Supply

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Material : Other Metal Size : As Description Type : As Description Model Number : Buck Converter DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Certification : NONE Condition : New Type : Step-down Modudle Key Word : Buck Converter Dropship : Support

DC 9-150V to DC 5V Step-down DC-DC Buck Converter Wide Voltage Regulator Power Module Power Supply Features

1. Supports DC 9-150V input, compatible with various power supply systems such as automotive 12V/24V/48V.

2. Adopts a high-efficiency step-down architecture, with high conversion efficiency and low heat generation, ensuring stable long-term load operation.

3. Supports an ultra-wide temperature range of -20℃ to 60℃, suitable for various extreme conditions such as outdoor, automotive, and industrial control applications.

4. Ultra-low standby power consumption as low as 0.3W, high efficiency and full power, more energy-saving and more durable.

5. Modular design, compact size, simple wiring, supports quick installation.

6. Suitable for various industrial fields, smart homes, medical, instrumentation, internet, railway, communications, etc.

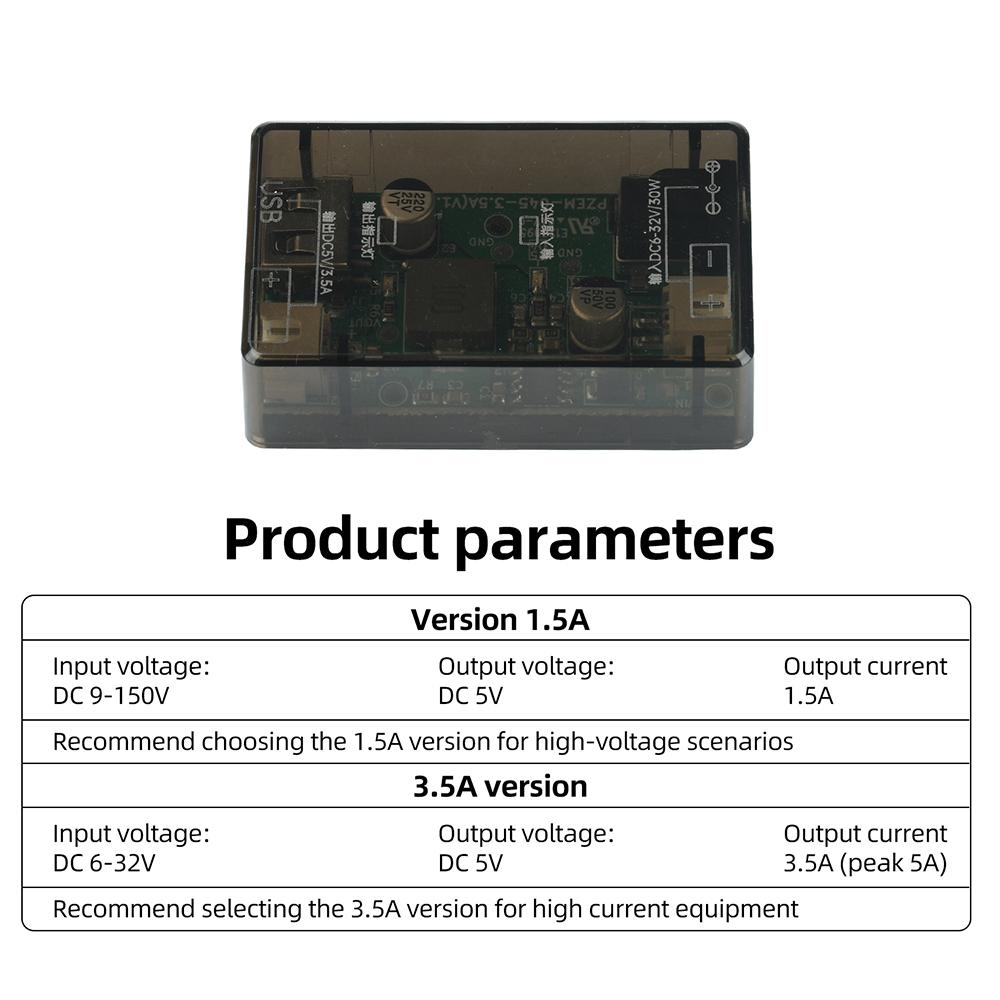

Product Parameters

1.5A Version Input Voltage: DC 9-150V Output Voltage: DC 5V Output Current: 1.5A Recommended for high-voltage scenarios: 1.5A version

3.5A Version Input Voltage: DC 6-32V Output Voltage: DC 5V Output Current: 3.5A (Peak 5A) Recommended for high-current devices: 3.5A version

Precautions: 1. Please refer to the wiring diagram according to the purchased SKU.

2. Only one of the two input interfaces (P1 XH2.54 through-hole terminal/J3 DC power input) can be used at a time. Do not connect both power sources simultaneously to avoid short circuits and reverse current damage.

3. The 3.5A model must be started under light load or no-load. Do not start under full load with high voltage input, otherwise the chip may be burned out.

4. Increased load will cause the module to heat up more. Ensure good heat dissipation during use.

5. Reversing the input polarity is strictly prohibited, otherwise the module may be damaged.

6. The maximum current of the 3.5A model is 5A. This maximum current only supports short-term operation and cannot be used for long-term continuous operation.

Product List: Module *1 XH2.54 Wiring *2 label:yes
