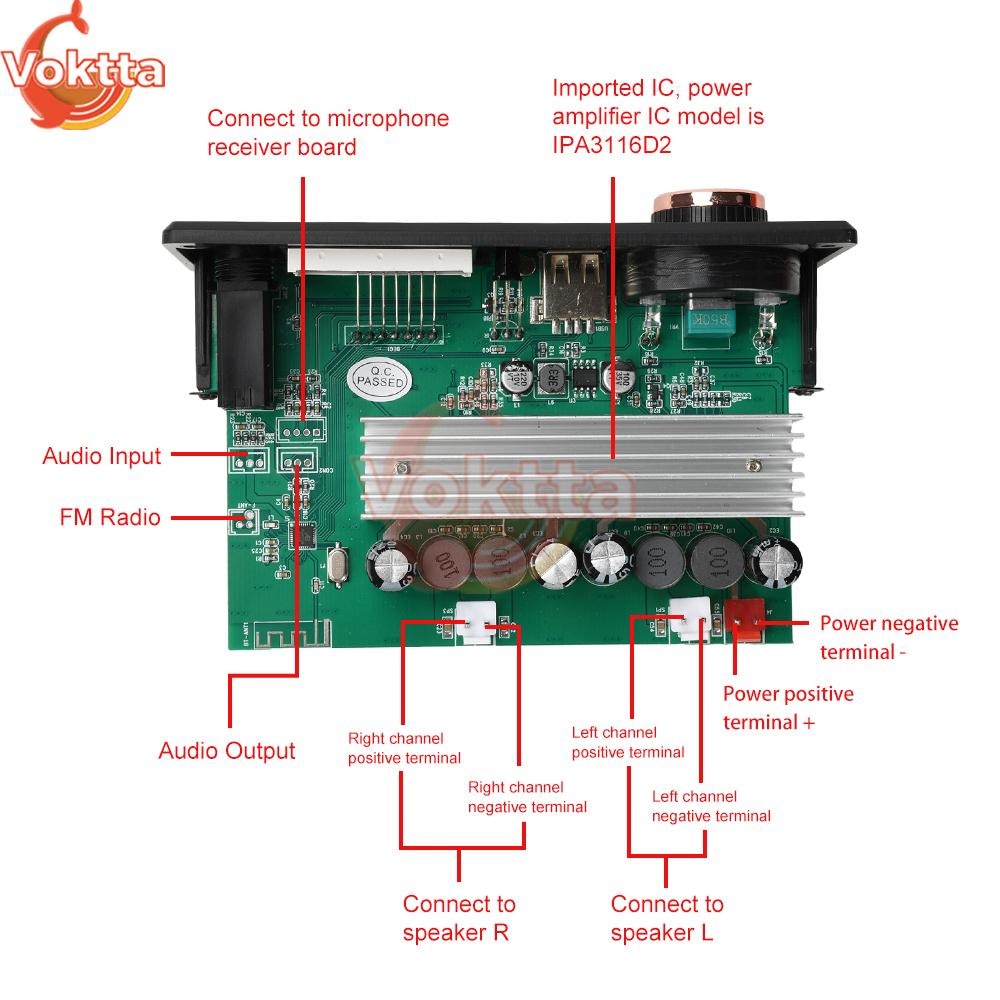

DC 12V MP3 Bluetooth Decoding Board Car Audio MP3 Decoder Player 87-108MHZ FM Radio TPA3116D2 Amplifier Board 2 * 100W

High-concerned chemical : none Electronic : No Model Number : DC 12V MP3 Bluetooth Decoding Board DIY Supplies : Electrical Brand Name : Gaqqee Origin : Mainland China

DC 12V MP3 Bluetooth Decoding Board Car Audio MP3 Decoder Player 87-108MHZ FM Radio TPA3116D2 Amplifier Board 2 * 100W

Features: 1. Supports 2 * 100W high-power design, providing strong audio output. 2. Supports BT 5.3 version, stable connection, and efficient transmission. 3. Support TWS function to create a stereo wireless experience. 4. Multiple audio sources support, including MP3/USB/TF/FM/BT. 5. Supports recording function, requires connection to a USB flash drive or TF card for storage. Parameter: Model: D186BT (microphone interface) 2.0 version Voltage: DC 12V; Current above 2A Power: 2 * 100W Main control IC: AB5362B BT IC: AB5362B BT version: 5.3 Amplifier: TPA3116D2, using two units; Power: 2 * 100W BT calling function, Microphone interface function Recording function Folder switching function TWS function Music format: MP3/WMA/WAV/FLAC/APE lossless format music Radio FM frequency: 87-108 MHz Support Function Introduction: Supports MP3/USB/TF/LINE IN/FM/BLUETOTH/Remote Control Connection Support adjustment of treble/bass/microphone sound size/microphone reverberation Voltage DC 12V, current above 2A Regarding the structure: Panel dimensions: length 131 * width 49 MM, with screw holes around the panel and a depth of 82 MM Recording function description: 1. Press and hold the MODE button to start recording, then press and hold the MODE button again to cancel the recording function and play the recording file; 2. When recording, it is more necessary to connect a storage device, such as a USB flash drive or TF card; 3. Under the storage device, such as a USB flash drive or TF card, long press the PLAY/PAUSE button (play/pause) to enter the recording folder and play the recording file; Package Include: 1 * Decoding board 4 * Line 1 * Remote control

label:yes

Inputs: bluetooth Vehicle audio form factor: 2 din
