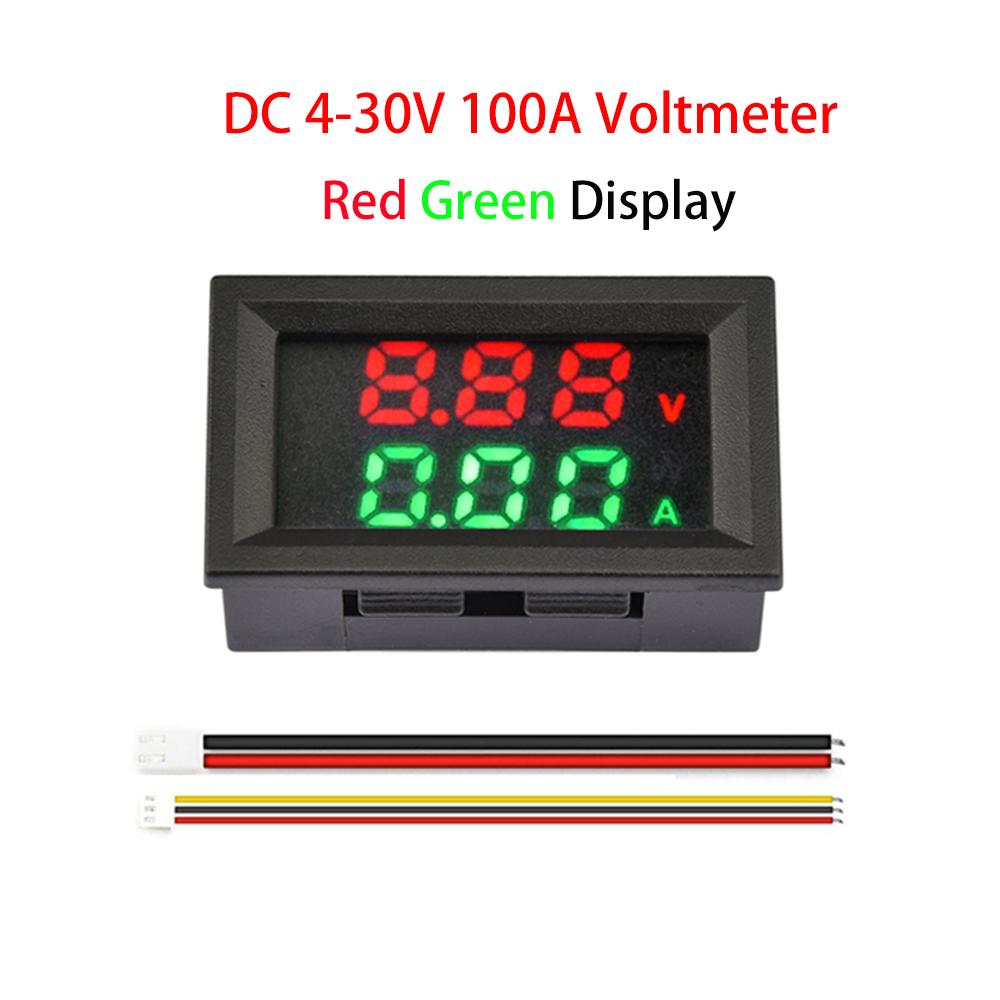

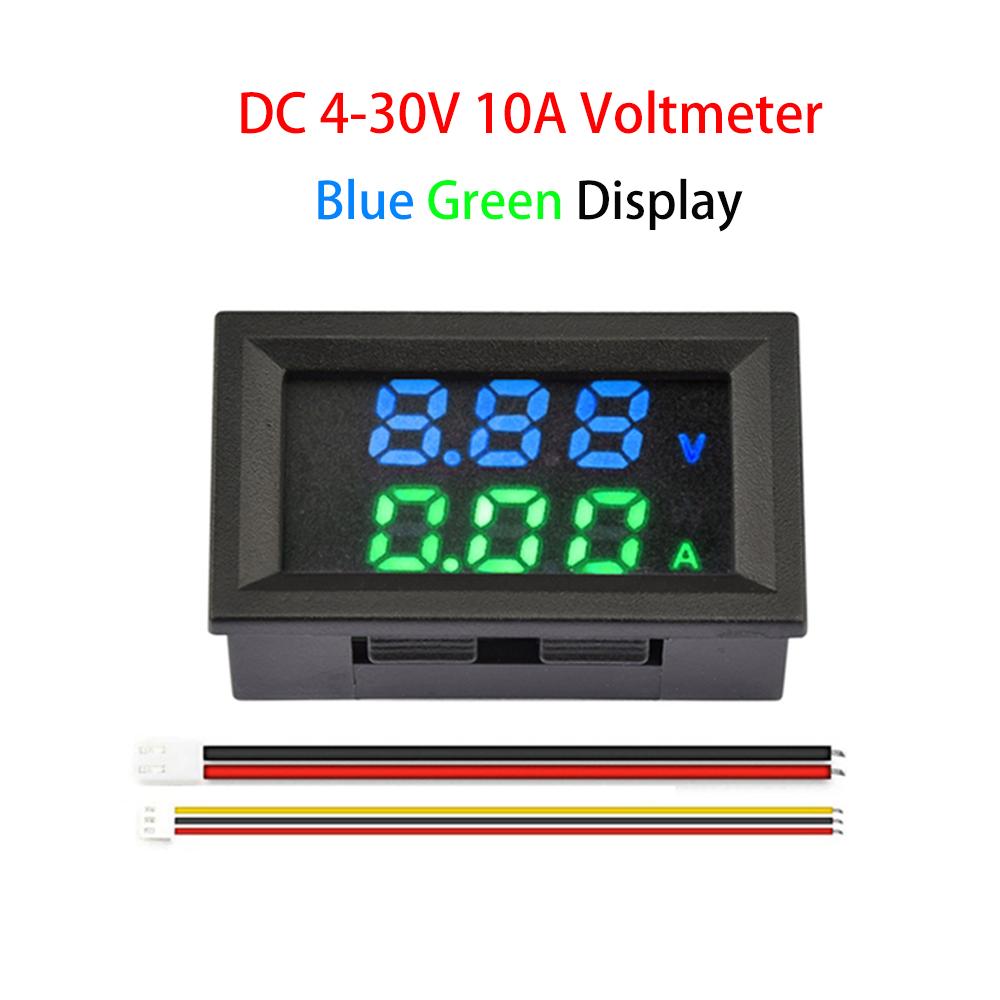

DC 4-30V 10A 50A 100A Digital Voltmeter Ammeter 0-100V 0-100A Current Meter Voltage Tester LED Dual Digital Volt Meter Gauge

Semi-finishedproduct : No Battery Included : no High-concerned chemical : none Voltage range : Other Origin : Mainland China Model Number : 10A 50A 100A Digital Voltmeter Ammeter Brand Name : Gaqqee DIY Supplies : Electrical Power Supply : DC Display Type : Analog-Digital

DC 4-30V 10A 50A 100A Digital Voltmeter Ammeter 0-100V 0-100A Current Meter Voltage Tester LED Dual Digital Volt Meter Gauge Product Features 1. Design patent 2. Multiple voltage specifications: 10A, 50A, 100A 3. Equipped with a 0.56-inch LED digital display screen 4. Easy to use, just follow the wiring diagram to use 5. Compact appearance, easy to carry

Product description 50A/100A must be connected to a splitter for use --M430 is a voltage, current, and power measuring instrument that can only measure and display the voltage, current, and power of the tested circuit. The displayed values can be fine tuned through an adjustable resistor, and it does not have the function of increasing or decreasing voltage or limiting current, which does not affect the actual voltage and current of the tested circuit. --Do not use high voltage above 30V during use, otherwise it may cause overvoltage damage to the product. --The 10A range product comes with a shunt resistor, which may cause a short circuit when directly measuring the current at the testing end. As long as the instrument is connected in series with the load according to the wiring diagram, it can be used normally. --Products with a range of 50A/100A require an external shunt to function properly. After connecting the shunt, a short circuit may occur at the current testing end. Simply connect the instrument in series with the load according to the wiring diagram to ensure normal use. --According to different current ranges, it is divided into 10A, 50A, and 100A working voltage 1.The working voltage of the instrument is DC 4-30V, and it is recommended to use 5-12V. 2.The thin red line is the positive pole of the working power supply, the thin black line is the negative pole of the working power supply, and they belong to the same ground as the thick black line; 3.The maximum voltage connected to the thin red and black lines during use should not exceed 30V, and it is recommended to supply 12V power

Range of measurement 10A: Voltage measurement range 0~100V, display mode 0.00V below 10V, voltage 0.2V jump, error range ± 1V, current measurement range 0~10A, current 0.03A jump, error ± 0.1A DC0.20V~9.99~10.0~100V ( ±1M ) DC0.03A~9.99A ( ±0.1) 50A: Voltage measurement range 0~100V, display mode 0.00V below 10V, voltage 0.2V jump, error range ± 1V, current measurement range 0~50A, current 0.03A jump, error ± 0.5A DC0.20V~9.99~10.0~10OV (±1V ) DC0.03A~9.99~50.0A ( ±0.5A) 100A: Voltage measurement range 0~100V, display mode 0.00V below 10V, voltage 0.20V jump, error range ± 1V, current measurement range 0~100A, current 0.03A jump, error ± 1A DC0.20V~9.99~10.0~100V(±1V ) DC0.03A~9.99~100A ( ±1A)

Packing list Voltage, current, and power meter * 1 Power supply load line * 2
