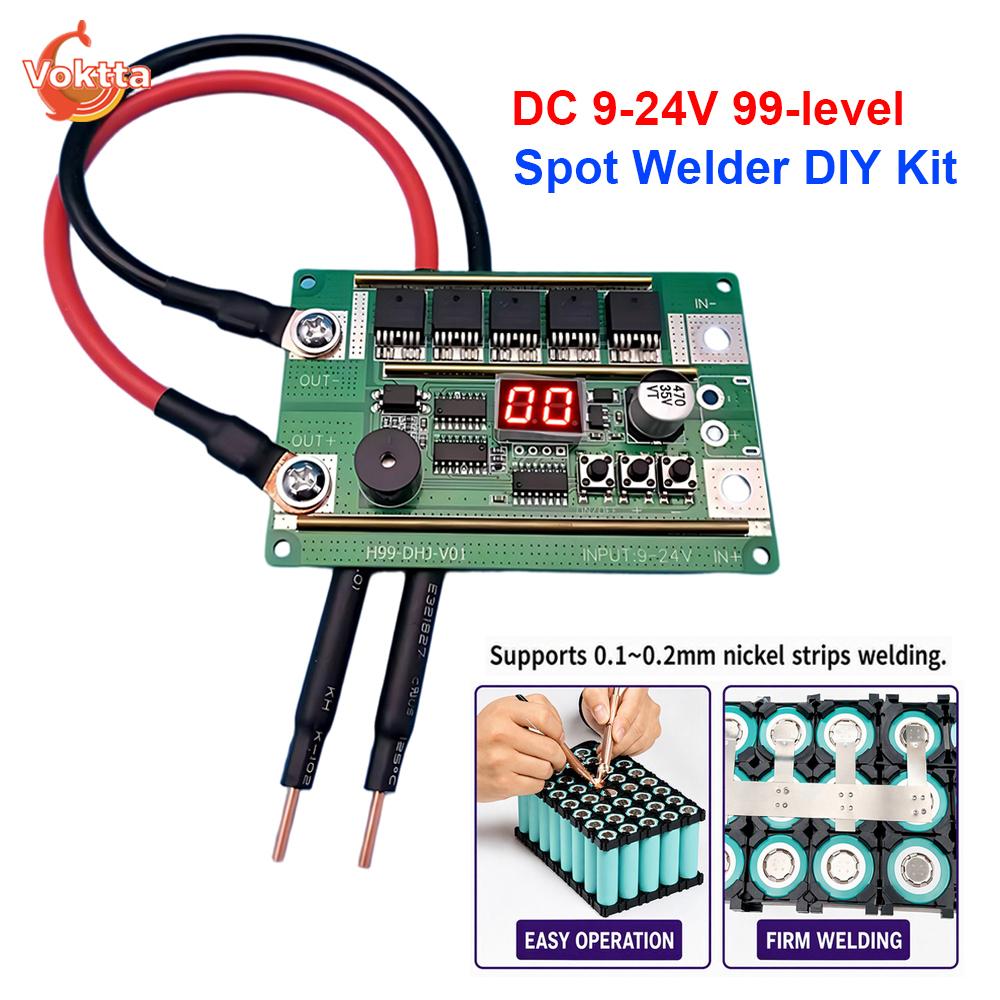

DC 9-24V 99-level Spot Welder DIY Kit 18650 Lithium Battery Spot Welding Machine for 0.1-0.2mm Nickel Sheet Battery Pack Welding

High-concerned chemical : none Model Number : DC 9-24V 99-level Spot Welder DIY Kit Origin : Mainland China

DC 9-24V 99-level Spot Welder DIY Kit 18650 Lithium Battery Spot Welding Machine for 0.1-0.2mm Nickel Sheet Battery Pack Welding

Product Features: 1. 99 adjustable levels: LED digital display, precise control of spot welding energy, suitable for different nickel welding needs 2. DC 9-24V wide voltage input: can be used with a self-contained power supply, and DIY assembly is flexible and convenient 3. Multi material compatible spot welding: supports welding of 18650/21700 cylindrical lithium batteries, mobile phone cells, nickel sheets, and thin steel sheets 4. Automatic standby power saving: automatically shuts down after 15 minutes without operation, paired with buttons for quick gear adjustment, easy to use 5. Small handheld DIY spot welding machine motherboard: comes with a built-in shell installation position, making it easy to make portable battery spot welding equipment

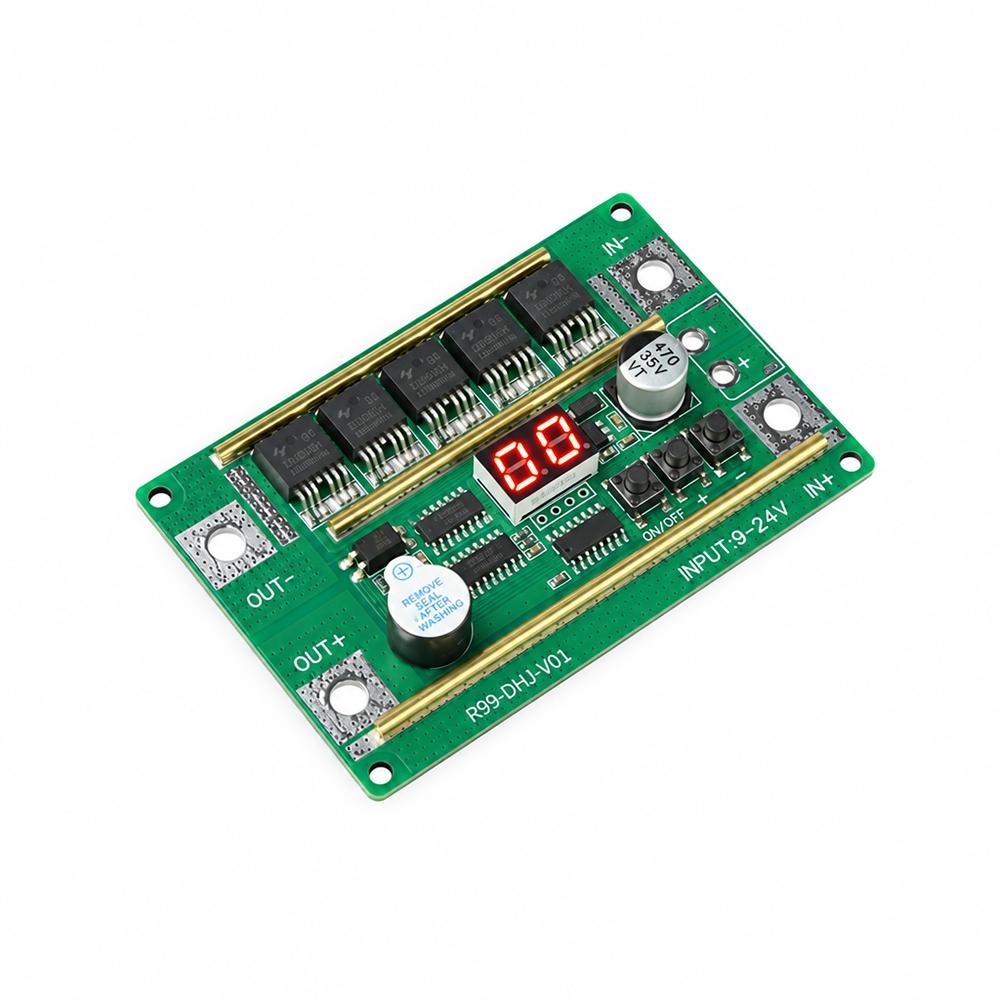

Product Parameters: Input voltage: DC 9-24V Adjustable gears: 1-99 Support spot welding of 0.1-0.2mm nickel sheet PCB size: 90 * 60 * 12mm Line length: approximately 32.5cm Button Function Single press ON/OFF button: No operation for 15 minutes, automatic shutdown will occur Single press+key: increase gear, long press+key: quickly increase gear Single press one key: downshift, long press - key: quickly downshift Gear range: 1-99, with 1st gear being the lowest and 99th gear being the highest Requirements for the length and diameter of the wire: 1. The input line and solder pen line cannot be longer than 300mm 2. The line should be thick and not less than 5 square 10AWG 3. Master the welding method. The welding pen should not be pressed with force, and a slightly greater force than writing is appropriate. The welding should be relatively firm 4. The surface of the welded object should be flat, and the surface of the battery that has been stored for a long time has an oxide layer that needs to be polished and welded firmly

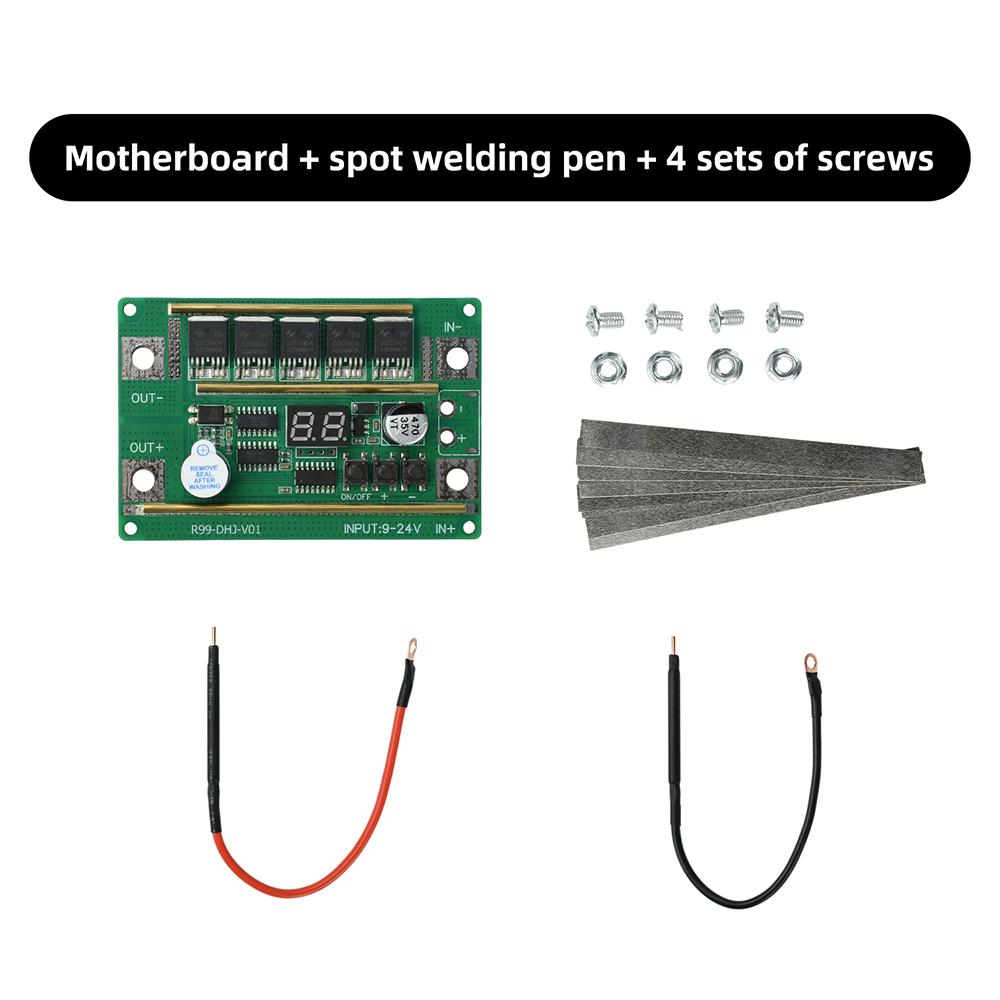

Packing List Spot welding machine * 1 Spot welding pen * 2 Nickel sheet * 10 Screw package * 1
