USB Cable Tester Type-C Micro A Type B Data Line Detection Board Short Circuit Switch Cable Checker For iOS Android Test Board

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Type : USB Cable Tester Model Number : USB Cable Tester DIY Supplies : Electrical Brand Name : Gaqqee Origin : Mainland China Certification : CE Test Board : USB Cable Tester Type-C Type-B : Micro Short Circuit Switch Test Board Data Cable Anomaly Detection : For iOS Android usb cable checker : usb cable tester data speed usb cable tester measuring device : LED Indicator Full Conductivity Tester : Fast Charging Wires Test

USB Cable Tester Type-C Micro A Type B Data Line Detection Board Short Circuit Switch Cable Checker For iOS Android Test Board

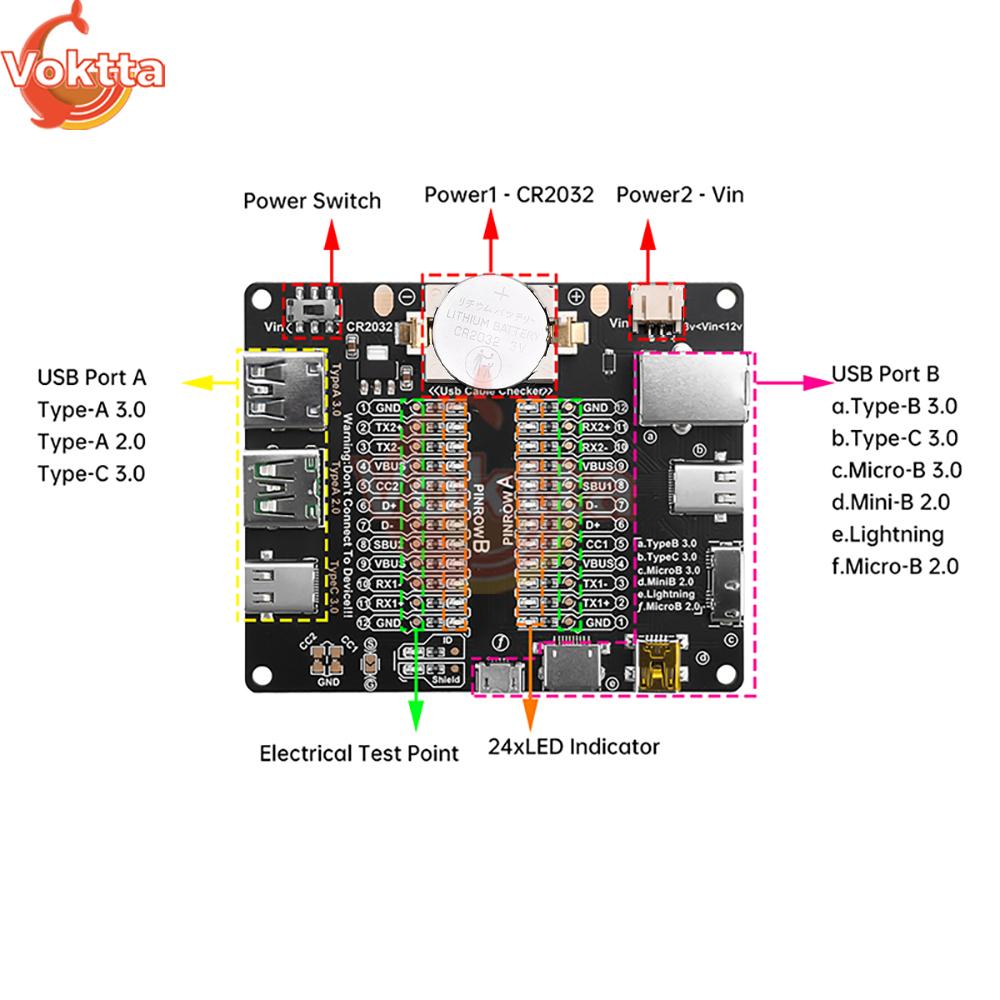

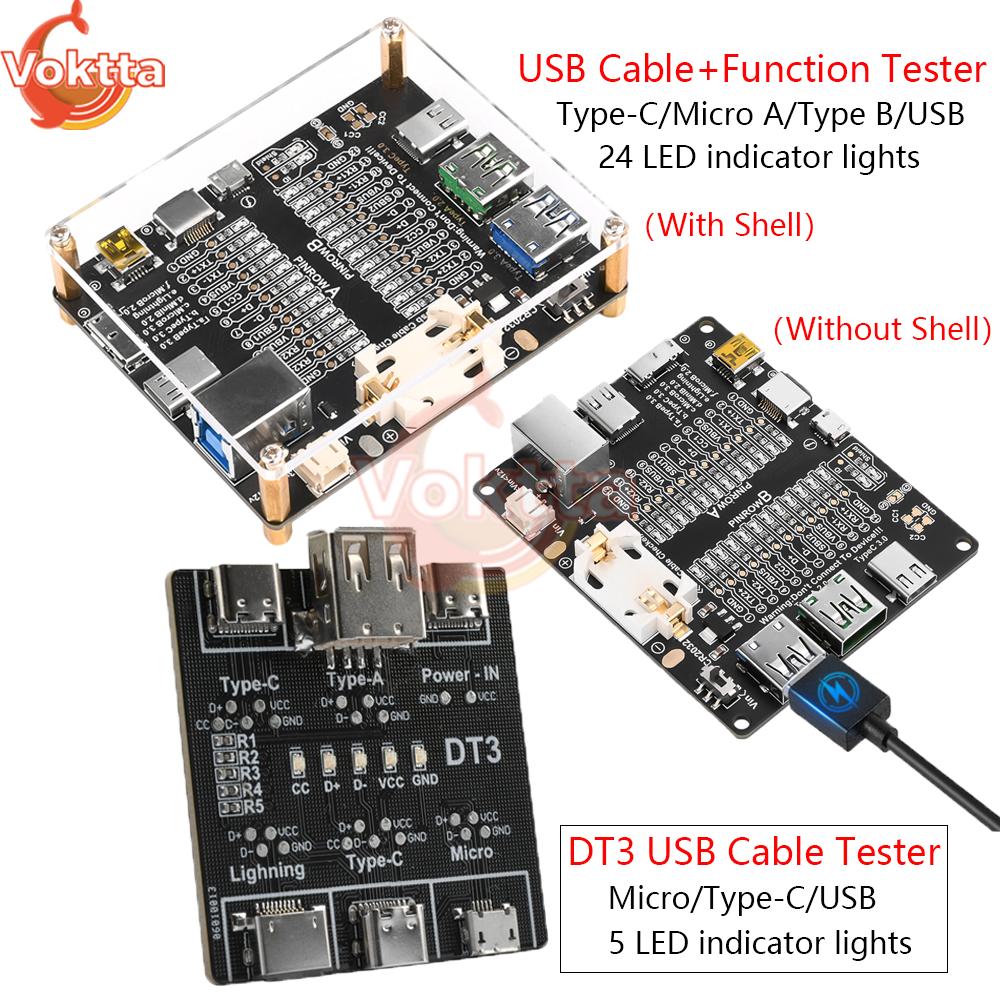

USB Cable+Function Tester Features: 1.The product has a compact size, making it easy to carry and store. 2.Equipped with led indicator lights: The test results are displayed through 24 led indicator lights, with each pin corresponding to one led light. 3.Supports two power modes: Cr2032 button battery or external power supply (vin) within the dc3-12v range, with vin providing directional connection protection. 4.The design is simple and intuitive. Users only need to insert both ends of the usb cable to be tested into the corresponding connectors, and the led indicator light will display the function and connection status of the usb cable. This allows users to intuitively understand the status of the cable (note: The carrying capacity of the cable cannot be tested). 5.Usb cable tester is a reliable tool used to test the connection status and function of usb cables. 6.Measurement types: Typeb 3.0, typeb 2.0, typec 3.0/3.1/3.2, microb 3.0, microb 2.0, minib 2.0, and lightning.

Parameters:  Product name: usb data cable test board Power supply: Battery powered (cr2032 button battery)/external power supply (vin) within the range of dc3-12v Type: with casing/without casing（Without Battery） Product size: 8.5*7cm

Package include: Usb data cable test board*1

DT3 USB Cable Tester Product Features 1: Quickly detect abnormal data lines 2: Compact and convenient 3: Fast detection, easy to carry 4: Multi level protection ensures the stability and security of testing 5: Easy to use

Description Lightning USB Data Cable Testing Board Switch - Micro Type-C Port DT3 USB Data Cable Tester for Quick and Lightweight Testing Quickly detect abnormal data lines. The light on indicates normal power on, while the light off indicates abnormal power on. Multi level protection ensures the stability and security of testing. Compact and convenient, fast detection, and easy to carry. After connecting the power supply from the power port, insert the test cable into the corresponding input port. Four lights on indicate normal power supply, while all four lights on indicate abnormal power supply (normal dual head Type-C connection indicates all five lights on) Size: 5.4 * 5cm, (measured manually) Net weight: 13g

Packing list 1 * Data cable detection board label:yes
