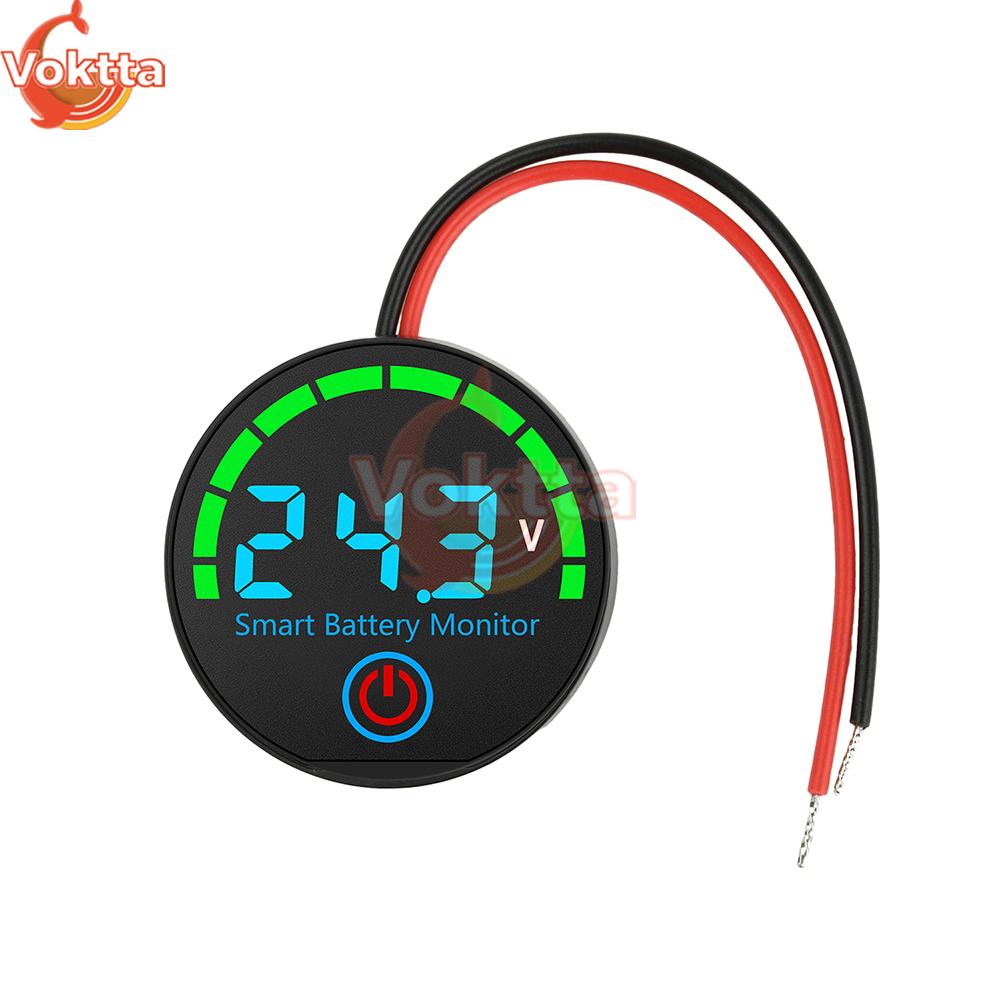

DC7-55V 3-14S LED Battery Level Indicator Digital Voltmeter 12V/24V/36V/48V Voltage Charge Tester Lithium Battery Capacity Board

Semi-finishedproduct : No High-concerned chemical : none Electronic : No Model Number : DC7-55V 3-14S LED Battery Level Indicator DIY Supplies : Electrical Brand Name : Gaqqee Origin : Mainland China Voltage measurement range : DC 7-55V (red display: DC 7-40V) Working current : ≤ 20mA Display mode : LED screen Display colors : red, green, blue, white Measurement of ternary lithium battery L : 3S~12S Iron lithium battery F measurement : 3S~14S Acid battery P measurement : 12V/24V/36V/48V

DC7-55V 3-14S LED Battery Level Indicator Digital Voltmeter 12V/24V/36V/48V Voltage Charge Tester Lithium Battery Capacity Board

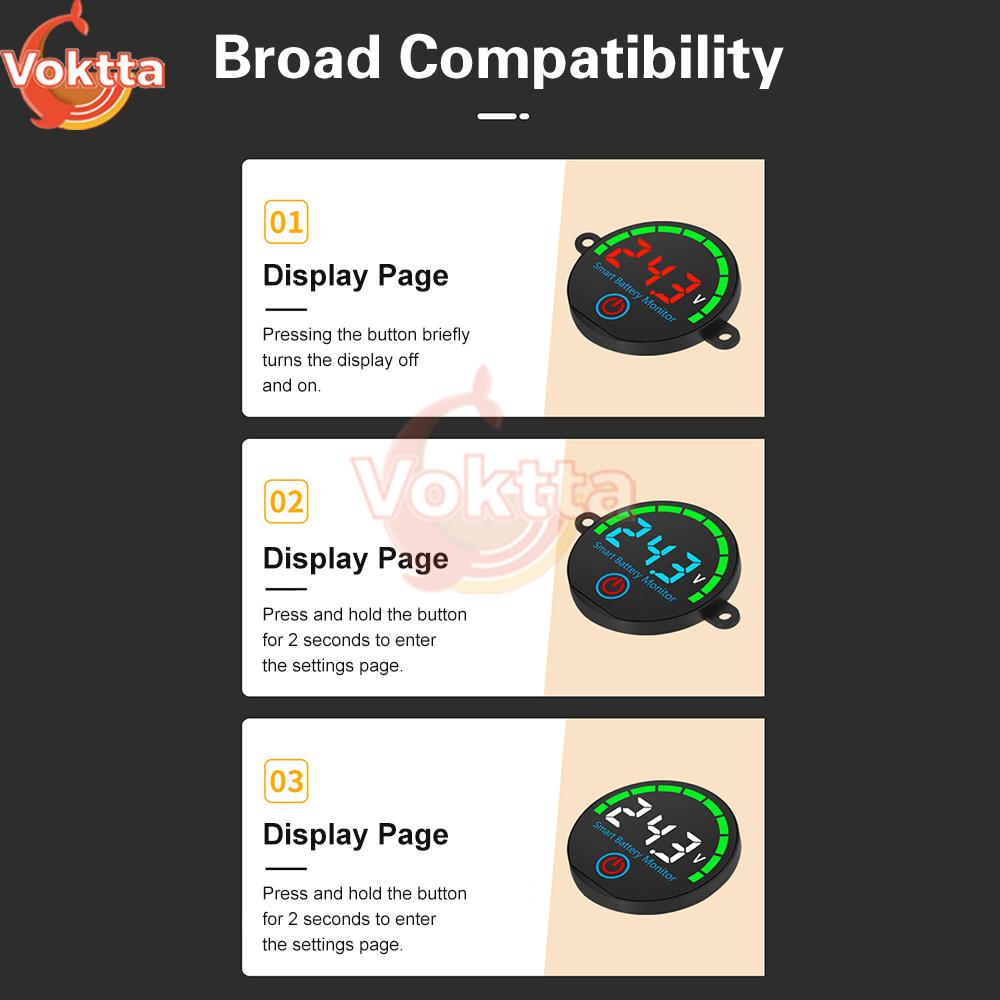

Product Features: 1. Custom high and low voltage settings: Set the fully charged voltage value to 100% and the fully discharged voltage value to 0% 2. Low voltage alarm function: When the battery level is too low, the red lightning symbol will flash 3. Display backlight time setting: Built in adjustable display backlight time setting function, can be constantly on or timed 4. Power outage memory storage function: Even in the event of an unexpected power outage, the current battery level information can be automatically saved 5. Widely compatible with multiple battery types: ternary lithium batteries, iron lithium batteries, acid batteries, etc., suitable for electric vehicles, energy storage systems, and a wide range of industrial and civilian fields

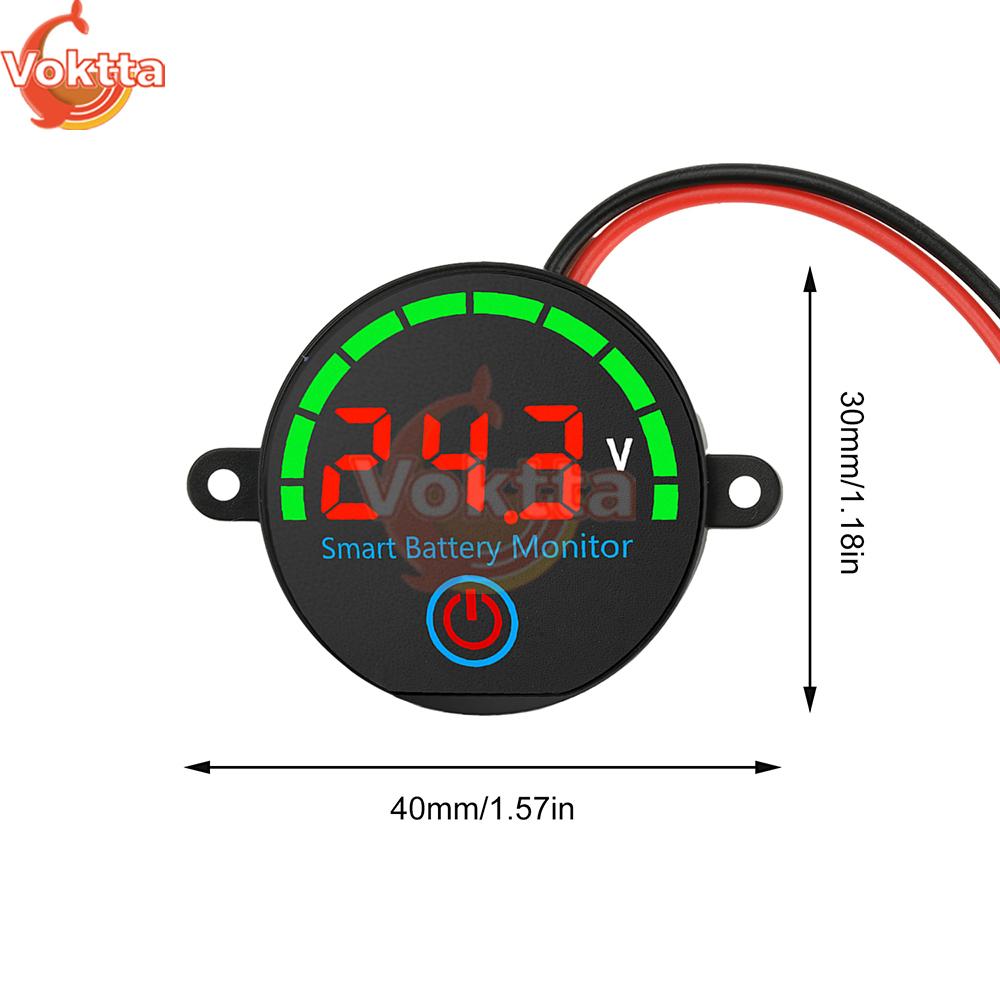

Product Parameters: Voltage measurement range: DC 7-55V (red display: DC 7-40V) Working current: ≤ 20mA Display mode: LED screen Display colors: red, green, blue, white (optional) The default voltage for the first power on of the product is the ternary lithium battery L03S (L03) Measurement of ternary lithium battery L: 3S~12S Iron lithium battery F measurement: 3S~14S Acid battery P measurement: 12V/24V/36V/48V Product size: 30 * 30 * 3mm

Packing List Battery Level Indicator * 1 label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No Voltage: 1.5
