12S 48V Electric Skateboard Controller Kit | Dual Motor ESC Replacement for Skateboard Scooter, Unicycle, Twist Car, Balance Car

12S 48V Electric Skateboard Controller Kit | Dual Motor ESC Replacement for Skateboard Scooter, Unicycle, Twist Car, Balance Car

Features:

*Application areas: scooters, wheelbarrows, torsion cars, balance cars

*The upgrade dual-motor drive ESC is a double layer board and much better than other ESC and Wireless 2.4G remote control transmission to control. (The maximum distance can reach 20 meters.)

*Adopting sine wave solution, the performance is more stable than other ESC and not easy to burn out

*Low speed and high torque.

*How to choose the right controller:

1. Confirm the voltage of your battery

6-series battery is 25.2V, 7-series is 29.4V, 10-series battery is 36V,12-series battery is 48V.

2. Confirm the type of motor

External motor chain, belt drive, use the controller with belt.

Hub motor, motor integrated wheel, please choose the controller with hub.

3. Confirm single drive, dual drive or four drive

Specifications:

Product Name: 12S 48V Electric Skateboard Controller Kit for Dual Drive Motor ESC Replace Parts

Material: Plastic, Metal

Size: Aluminum substrate approx. 104x80mm

Color: Black

Rated Voltage: 48V ( 36V-50.4V )

Rated current: 70A ( single motor 35A )

Rotate speed: 7500r/min ( Hub motor maximum speed of revolution )

Drive mode: Dual Motor Drive

Max. speed: 50KM/H

Max. Loaded: 120kg/264.55 lbs

Remote distance: 20m/65.62ft(Max.)

Sensing: Hall

Power connector: for XT60

Hall interface: 5pin 2.0 connector

Motor : 4mm Banana

Package Content:

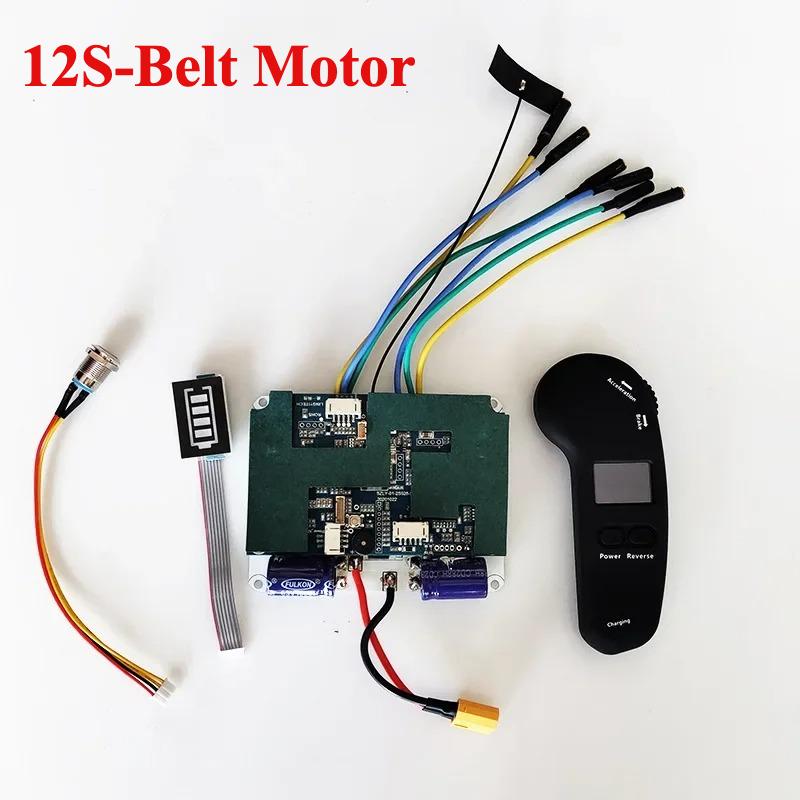

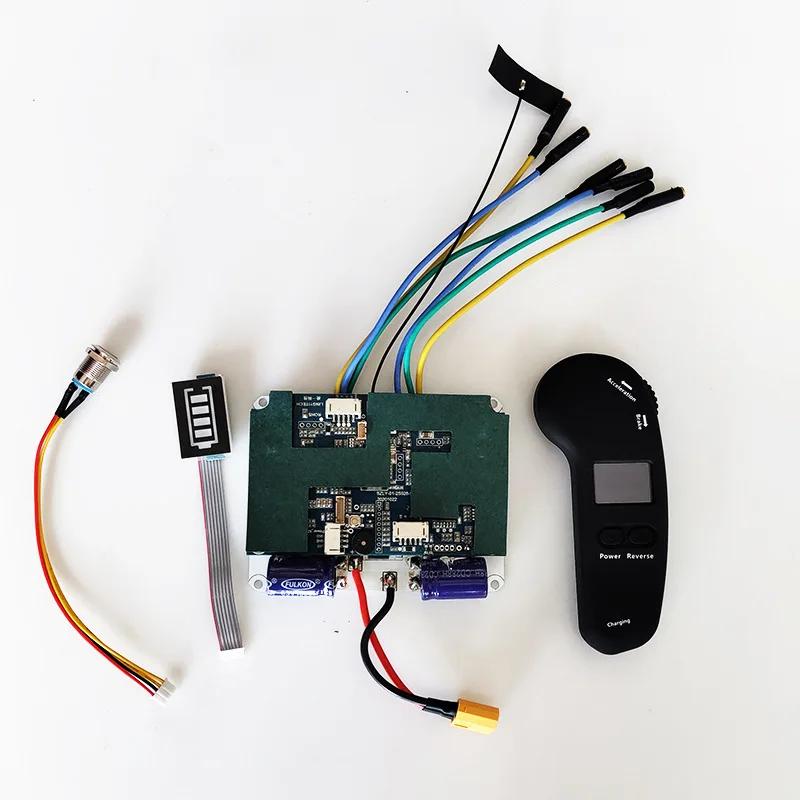

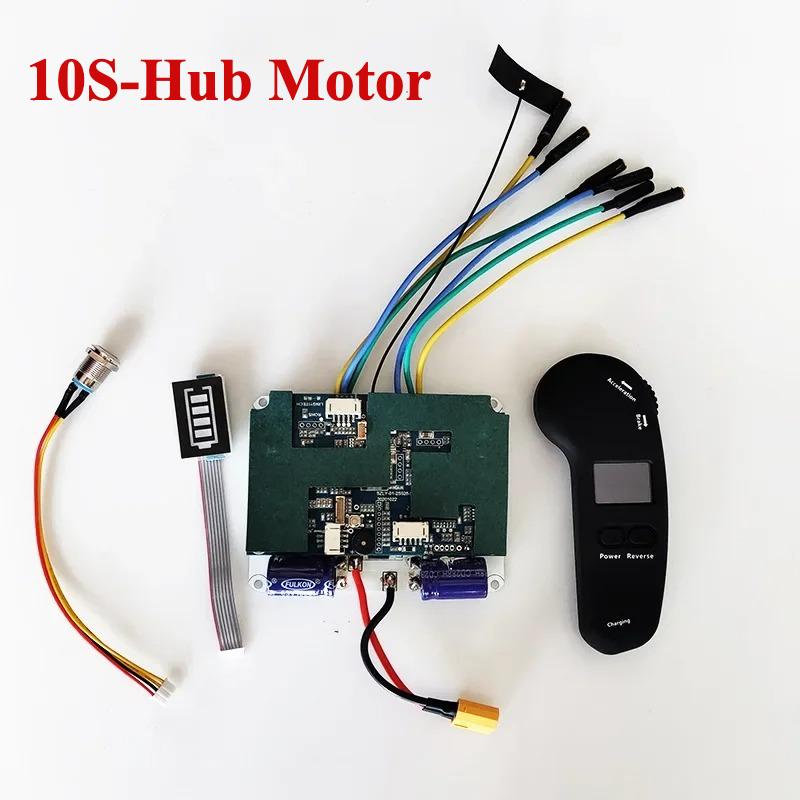

1x controller, 1x remote control, 1x metal switch, 1x power display

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.

Origin: Mainland China Brand Name: NONE
