ELECOM Switching Hub, 2.5G Compatible, 8 Ports, Metal Casing, External Power Supply, All Ports Support 2.5Gbps, Japanese Manufacturer, EHC-LQ01-8

【Specifications】 ■Transmission Speed: 2.5Gbps (2.5GBASE-T), 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T) ■Compliant Standards: IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3 ■Switching Method: Store & Forward ■Communication Method: Full Duplex, Half Duplex ■Flow Control: IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex) ■Number of Ports: 8 ports ■Auto MDI/MDI-X: Supported ■ Auto-negotiation: Supported ■ Connector shape: RJ-45 x 8 ■ Compatible cables: 2.5GBASE-T/1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher ■ Buffer memory: 1 Mbytes (dynamically allocated to each port) ■ Switching fabric: 40.0 Gbps ■ Maximum packet forwarding capacity: 29.7 Mpps ■ Packet forwarding speed: 3,720,238 packets/sec (2.5 Gbps), 1,488,095 packets/sec (1000 Mbps), 148,809 packets/sec (100 Mbps), 14,880 packets/sec (10 Mbps) ■ Number of MAC address entries: 16,384 (total for all ports) ■ Jumbo frames: Supported (10Kbytes) ■Non-blocking: Supported ■EAP transparency function: Supported ■BPDU transparency function: Supported ■Loop detection/prevention function: Loop detection ■PoE specification: Not supported ■Power supply specification: Dedicated AC adapter ■Input voltage: AC100-240V±10% 50/60Hz ■Power consumption: 7.5W (maximum) ■Heat generation: Approx. 27.0kJ/h (maximum) ■Power saving function: Easy power saving E compatible (IEEE) 802.3az) ■Energy efficiency: 0.4W/Gbps ■Maximum effective transmission speed: 20.0Gbps ■Port speed and number of ports during measurement: 2.5Gbps: 8 ports ■External dimensions: Approx. 154.5mm (W) x 85.0mm (D) x 26.0mm (H) (main unit only) ■Weight: Approx. 340g (main unit only) ■Housing material (color): Metal (black) ■Cooling fan: None ■Anti-theft: No security slot ■Installation method: Horizontal installation, wall mounting, magnet (sold separately) (Uses EHB-EX-MG4) ■Wall mounting holes: Yes (Spacing: 76mm) ■Operating environment conditions: Temperature: 0℃ to 50℃, Humidity: 10% to 90% (non-condensing) ■Storage environment conditions: Temperature: -40℃ to 70℃, Humidity: 5% to 90% (non-condensing) ■MTBF: 1,288,000 hours @ 25℃, 386,000 hours @ 50℃ ■Regulatory compliance: EU RoHS compliant (10 substances) ■Applicable standards: VCCI Class B ■Package contents: 1 dedicated AC adapter (approx. 1.8m), 4 rubber feet, 1 safety guide, 1 quick setup guide ■Warranty period: 6 months ■Maintenance service | Delivery: - ■Maintenance service | Send-back extension: - ■Dedicated optional item | Magnet: EHB-EX-MG4

【Description】 ■8-port switching hub with all ports supporting 2.5Gbps. When combined with a high-speed internet connection, it can create a 2.5Gbps communication environment, allowing you to comfortably enjoy high-capacity services such as online games and video streaming.

*This is a theoretical maximum value and does not represent the actual transfer speed. Also, to communicate at 2.5Gbps, both the connected LAN cable and equipment must be compatible with 2.5GBASE-T.

*Fanless design ensures silent operation. Recommended for use in homes and offices where quiet operation is important.

*Compact model that can be held in one hand, allowing for installation in small spaces.

*Equipped with a loop detection function. The flashing LED lamp notifies you of network loop occurrences, prompting you to resolve network problems.

*Uses polymer aluminum solid electrolytic capacitors on the main board. This results in a highly reliable switching hub with a long-life design.

*Uses a tracking-resistant outlet plug on the AC adapter. Prevents tracking phenomena even after long-term installation.

*Supports Easy Power Saving E function. When combined with switches and terminals compatible with IEEE 802.3az (EEE standard), it automatically achieves energy savings without any effort. Significant power savings can be achieved in environments where the computer is shut down. ■Easy Power Saving E function saves up to approximately 79% of power. [Measurement method]: Data is transferred from a load device to this product. Power consumption after 1 minute is compared between when all ports are communicating and when they are not. ■By attaching the separately sold optional magnet for the hub (EHB-EX-MG4), it can also be installed on metal surfaces. ■Environmentally friendly, compliant with the EU RoHS directive. The EU RoHS directive is a directive established by the EU (European Union) regarding the restriction of the use of certain hazardous substances in electrical and electronic equipment. ■This product meets one or more of our company's environmental certification standards and displays the 'THINK ECOLOGY' mark. ■Committed to environmental protection, the product packaging is made only of paper, cardboard, and plastic bags.

【Product Inquiries】 Product support introduces "Frequently Asked Questions" and "Support Community" by category. Contact us here: 8056.jp 8-port switching hub with all ports supporting 2.5Gbps. When combined with a high-speed internet connection, it can create a 2.5Gbps communication environment, allowing you to comfortably enjoy high-capacity services such as online games and video streaming. *This is a theoretical maximum value and does not represent the actual transfer speed. Also, to communicate at 2.5Gbps, both the connected LAN cable and equipment must be compatible with 2.5GBASE-T.

The fanless design ensures silent operation. Recommended for use in homes and offices where quiet operation is important.

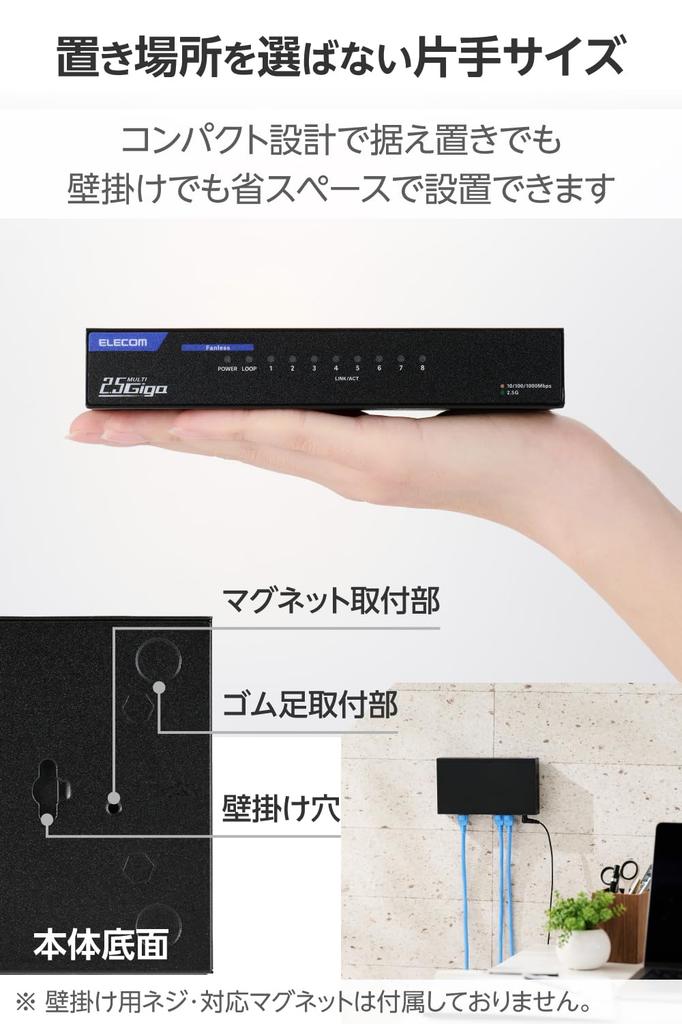

Its compact size allows it to be held in one hand and installed in a small space.

It features a loop detection function. The flashing LED lamp notifies you of network loop occurrences, prompting you to resolve network problems.
