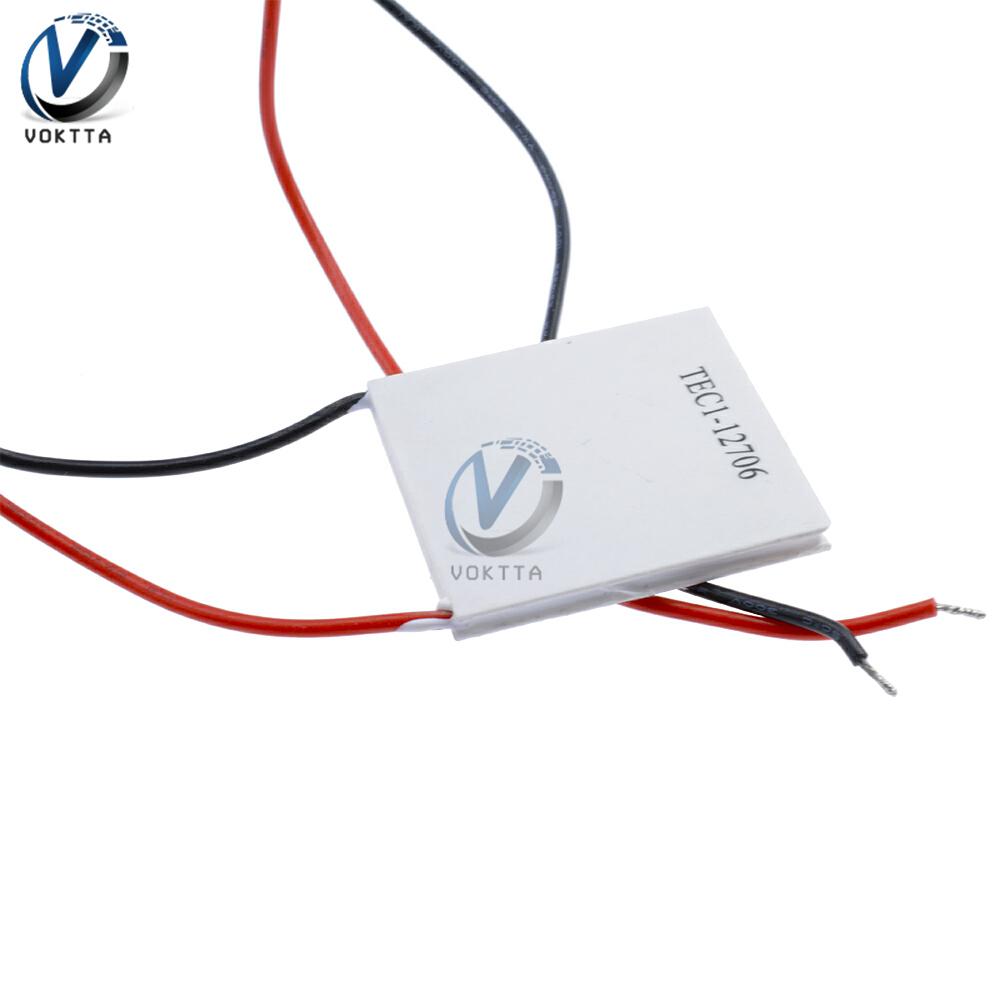

40X40MM 12V Refrigeration Unit Radiator Cooler Peltier Thermoelectric Element Module TEC1-12715 TEC1-12706 TEC1-12703

<kse:widget data-widget-type="customText" id="1005000000746008" type="custom"></kse:widget> <kse:widget data-widget-type="customText" id="1005000008381216" type="relation"></kse:widget> TEC1-12715 TEC1-12706 TEC1-12703 Refrigeration Unit Radiator 40X40MM 12V Cooler Peltier Thermoelectric Element Module

Product Features: 1. The product is compact and small 2. Easy to use 3. Long service life 4. High quality 5. Widely applicable

Product parameters: Chip model: TEC1-12715 Dimensions: 40 * 40 * 3.2mm ± 0.1, with 127 pairs of component pairs Maximum voltage: 15.8V Maximum current: 15A Recommended voltage: 12V Maximum temperature difference: 65 ℃ Maximum cooling capacity: 130W Assembly pressure: 85N/cm2 Working environment: Temperature range -55 ℃~85 ℃ (excessively high ambient temperature will directly affect refrigeration efficiency) Packaging process: Surrounding 704 silicone rubber seal or epoxy resin seal Packaging standard: foam box, storage condition, ambient temperature -10 ℃ -40 ℃ Individual weight: 22g

Wire specification: wire length 195mm Chip model: TEC1-12703 Dimensions: 40 * 40 * 4.0mm ± 0.1, with 127 component pairs Wire specification: Lead length 310mm ± 5mm RV standard wire single head 5mm tin plated Internal resistance: 4.0~4.3 Ω (ambient temperature 23 ± 1 ℃, 1kHz Ac test) Large temperature difference: △ Tmax (Qc=0) above 60 ℃. Working current: Imax=12 (when starting at rated voltage) Rated voltage: DC12V (Vmax: 15.5V) Cooling power: Qcmax 27W Assembly pressure: 85N/cm2 Working environment: Temperature range -55 ℃~83 ℃ (excessive temperature drop directly affects refrigeration efficiency) Packaging process: standard 704 silicone rubber seal on all sides Packaging standard: foam box, storage condition, ambient temperature -10 ℃~40 ℃ Storage conditions: -40~60 ℃ How to operate to cool? Basic material operation: 1. Prepare 5 large items, including refrigeration fins, radiator, thermal grease, insulation pad, and power supply 2. Apply silicone grease to the cold and hot surfaces of the refrigeration unit 3. Install the refrigeration unit onto the radiator and place a thermal insulation pad in the middle 4. Power on the locking screw and cool it down Model: TEC1-12706 Size: 40mm x 40mm x 3.6mm Working current: 4.3-4.6 A Rated voltage: 12V DC Working temperature: -30 ° C to 70 ° C. Cooling power: Qcmax 30-60w

Packing list: refrigeration chip * 1

Brand Name: Voktta Origin: Mainland China High-concerned chemical: none DIY Supplies: Electrical Model Number: TEC1-12715 TEC1-12706 TEC1-12703 Refrigeration Unit Radiator
