Oculink PCIe 8i 8i 8x Slimline SSD Data Active Cable 50cm PCI-Express SFF-8611 - SFF-8654

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

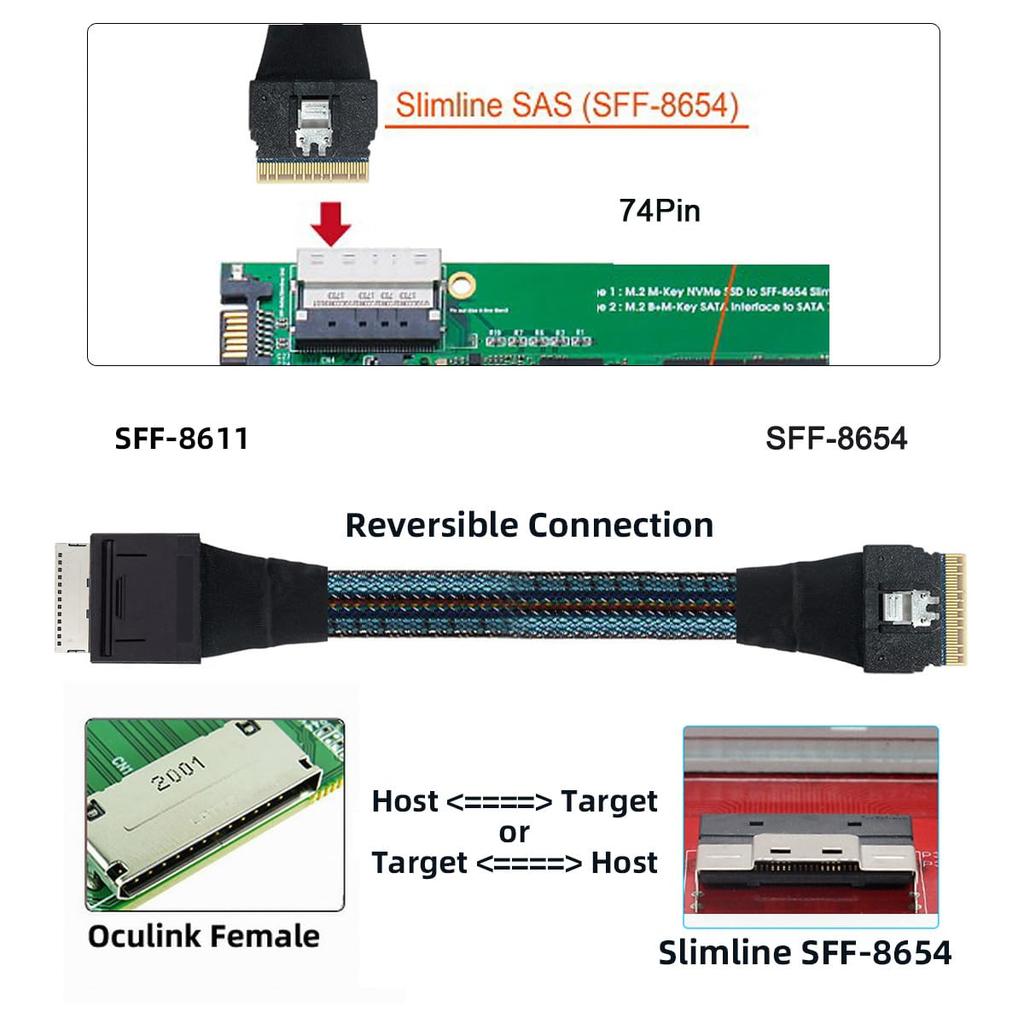

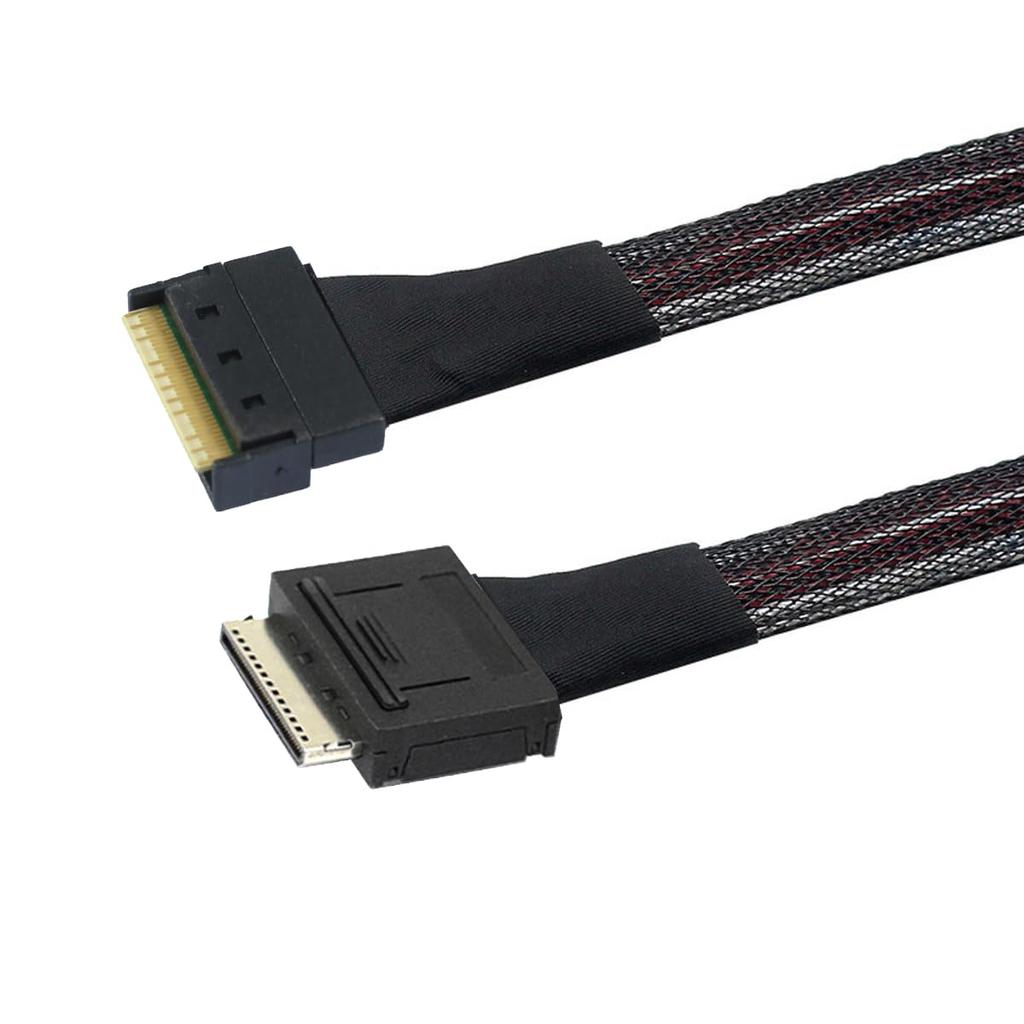

1) This OCuLink 8x cable can be to connect internal devices, such as connecting a backplane with an SFF-8654 connector to a controller with an OCuLink SFF-8611 connector. It can also be to connect a backplane with an SFF-8611 socket to a controller with an SFF-8654 socket. OCuLink SFF-8611 male to SFF-8654 male, mating lock: with active latch. 2) It transmits PCI Express 4.0 signals using the PCIE protocol. It supports PCIE 4.0 data transfer, achieving data transfer speeds of up to 64Gbps, and supports connections for GPU graphics cards, SSDs, expansion cards, etc., and is backward compatible with PCIE 3.0. 3) By using an optional cable, you can connect, for example, one SSD or an eGPU graphics card. It is suitable for converting PCIe sockets on small hosts, desktops, and laptops to SFF-8654 8X sockets and also features mounting holes. 4) High-Speed Data Transfer: The adapter cable is designed for use with SSDs using SFF-8654 8x connectors, enabling fast and reliable data transfer at speeds up to 64Gbps. 5) Only motherboards with a removable PCI-E channel are supported. The operation of the four disks is controlled based on the PCIE channel of the motherboard. Motherboards without PCIE signal splitting can only recognize one disk. Culink PCIe PCI-Express SFF-8611 8i to SFF-8654 8i 8x Slimline SSD Data Active Cable 50cm This OCuLink 8x cable can be to connect internal devices, such as connecting a backplane with an SFF-8654 connector to a controller with an OCuLink SFF-8611 connector. It can also be to connect a backplane with an SFF-8611 socket to a controller with an SFF-8654 socket. OCuLink SFF-8611 male to SFF-8654 male connector, with active latch for mating. Maximum data transfer speed of 16Gbps, cable length: 50cm. System Requirements: Free OCuLink 8x 80-pin interface.
