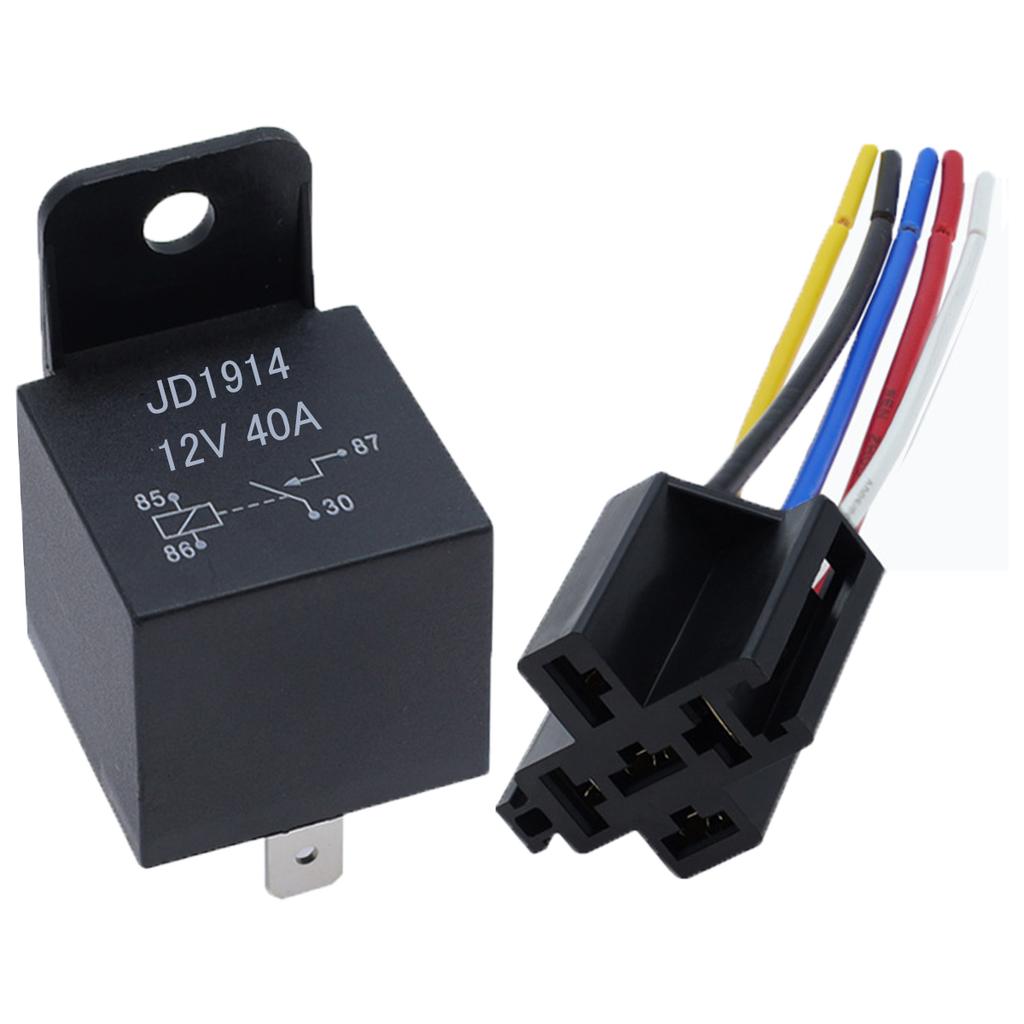

4 5 Pin 4P 5P 40A Waterproof Car Relay Long Life Automotive Relays Normally Open DC 12V/24V Relay For Head Light Air Conditioner

Specification: 100% Brand New Contact Material: Silver Alloy Colour: Black Rated voltage: DC 12V / DC 24V Working current: 40A Number of needles: 5 needles Electrical life: 100000 operations Mechanical life: 10000000 operations Feature: Red copper coil. Cu-AG-Cr alloy contacts. Copper overcurrent protection. Fine workmanship and excellent performance. Built to last. For fog lamps, headlamps, battery control, oil pump control, fan control, air conditioner, wiring harness. Package Included: 1*Relay (4 styles are optional)

Tips

The back of the product is plastic, not iron

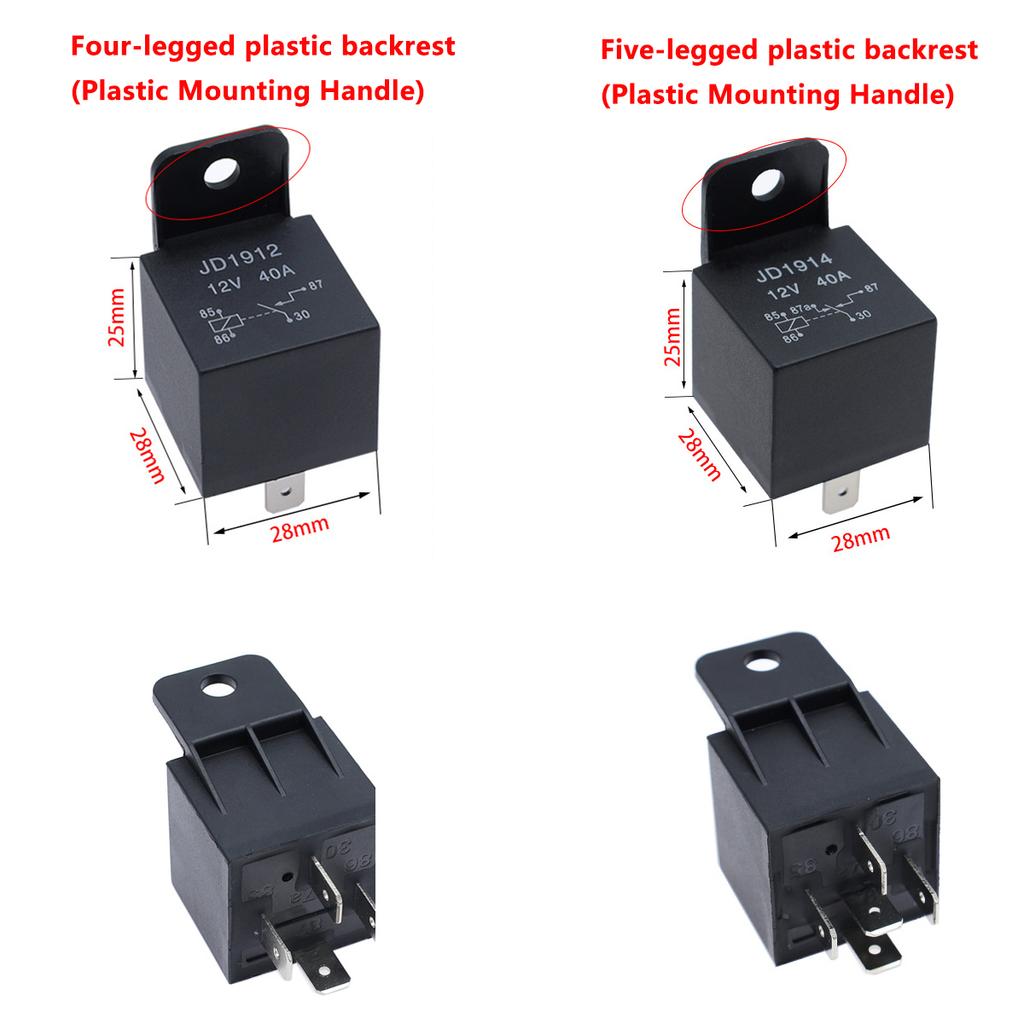

Model Name: JD1912,JD1914,JD2912,JD2914 Insulation resistance:: ≥1,00M2 semi_Choice: yes Brand Name: ledom Origin: Mainland China High-concerned chemical: none Product Type: Relays and accessories Item Width: 2.8 Contact Resistance:: ≤50mS2 Is It Charged: No Item Height: 2.5 Item Length: 2.8 Rated current: 40A Item Type: Car Relays Special Features: Automotive Relay contact load: 40A 14VDC protective features: Waterproof and flame retardant Coil power: 1.7W Coil Power: 14VDC 24VDC Choice: yes Voltage range: Low voltage non-USB (below 75V DC, below 50V AC) External Testing Certification: ce
