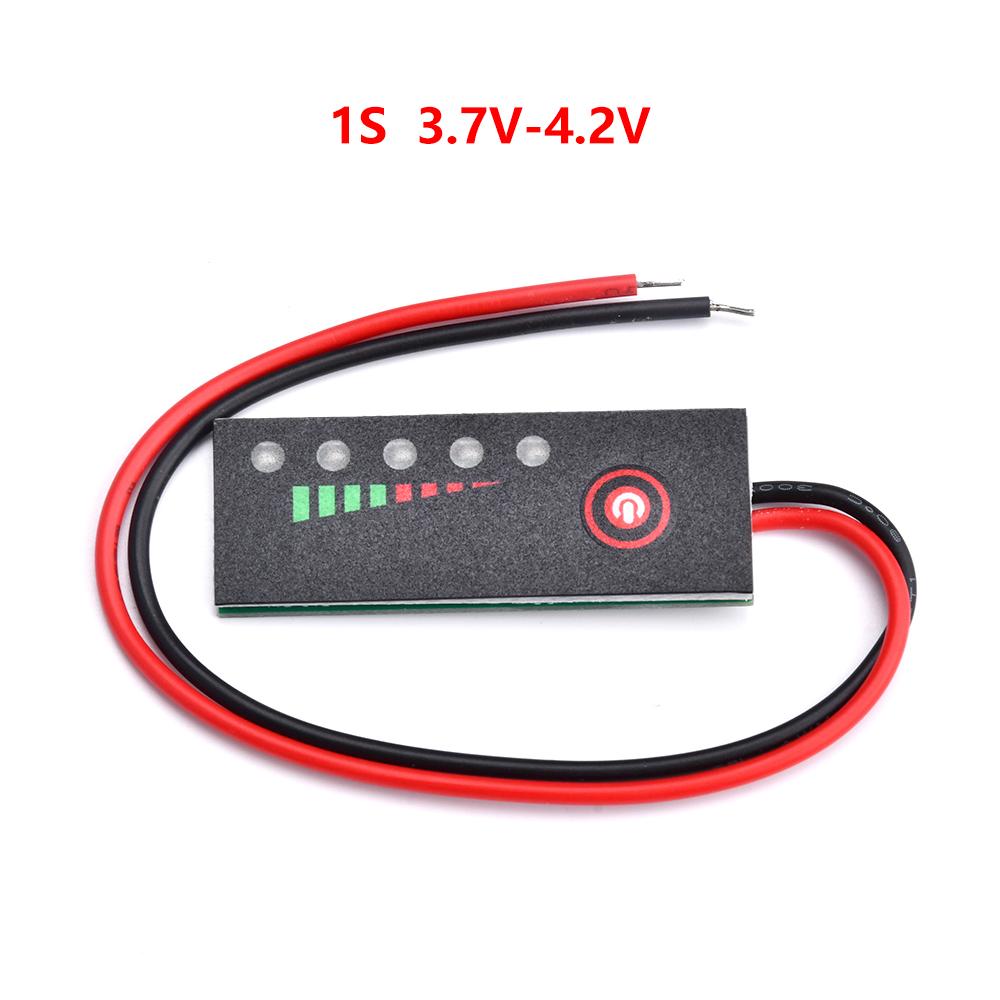

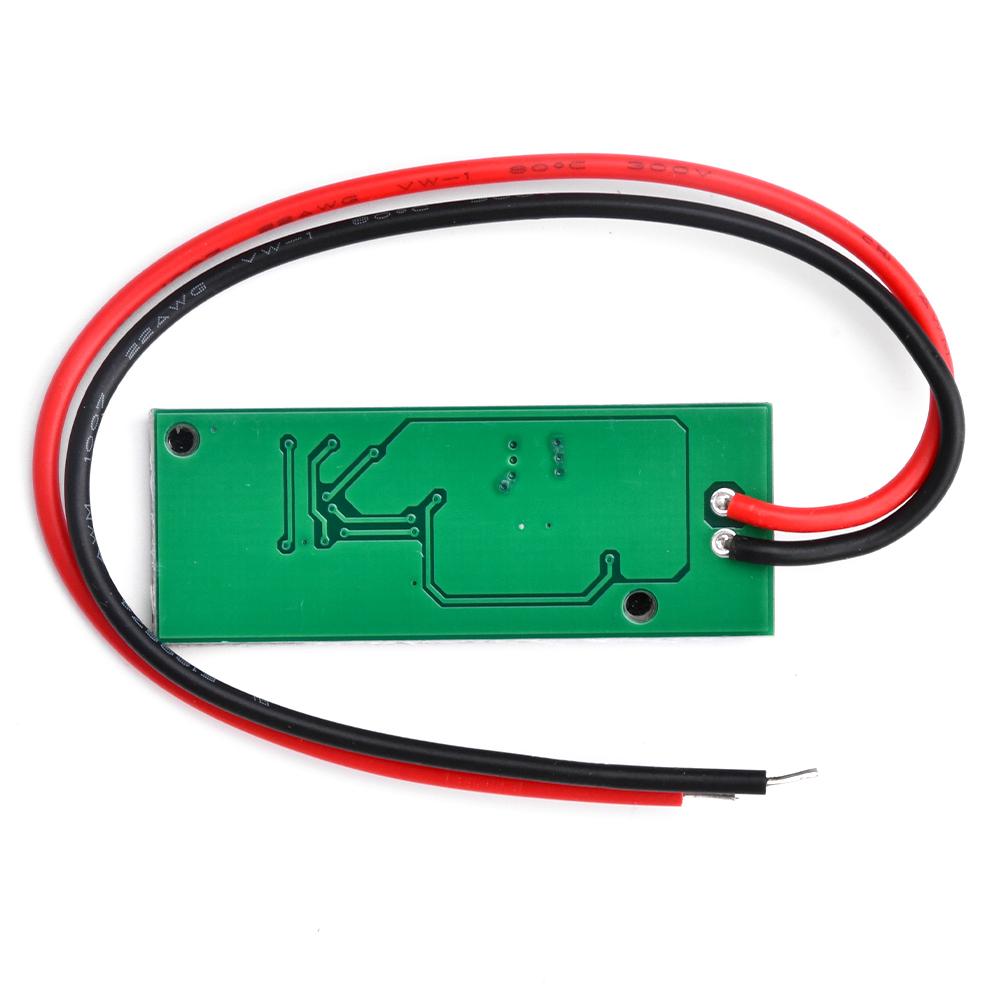

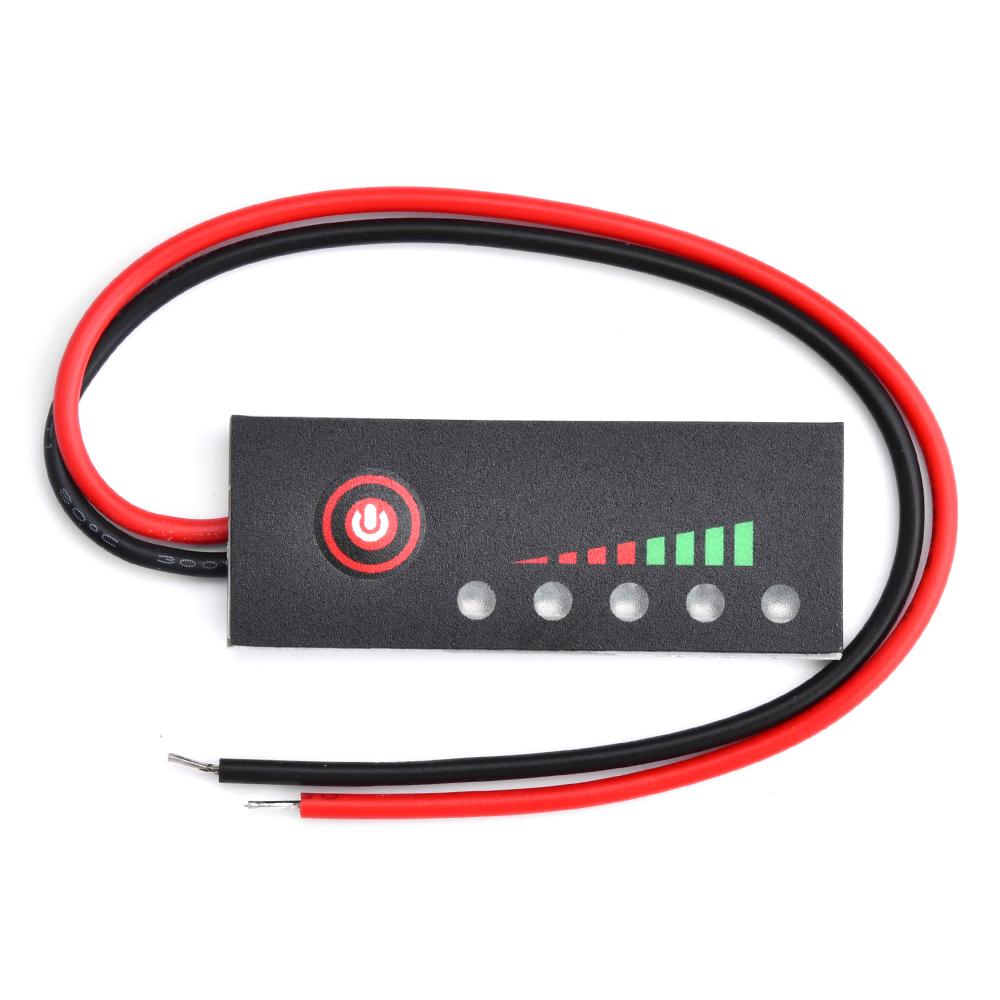

Battery Level Indicator 1/2/3/4/5/6S 3.7-25.2V Lithium Battery Li-ion Capacity Indicator Board Power Display Charging Tester

Semi-finishedproduct : No Data Record : No High-concerned chemical : none Electronic : No Model Number : Battery Level Indicator DIY Supplies : Electrical Brand Name : Aideepen Origin : Mainland China Style : Lithium Battery Li-ion Capacity Indicator Certification : CE

Battery Level Indicator 1/2/3/4/5/6S 3.7-25.2V Lithium Battery Li-ion Capacity Indicator Board Power Display Charging Tester Features: 1. Using high-quality materials, durable 2. Ultra-thin power display, 5 LED indicators, the display is more intuitive and more beautiful 3. With reverse connection function, even if the positive and negative connections are reversed, it will not burn 4. Small and exquisite appearance 5. Wider range of use, lithium batteries, lead-acid batteries, lithium iron phosphate, electric vehicle batteries and electric equipment can be used

Parameter: Allowable error: ±2%; 4-stage power: 25% 50% 75% 100% Working current: 15ma Lead length: 15cm Dimensions: 40x 15x 2.5mm Net weight: 8g Working temperature: -10℃~65℃

Install: 1. Connect the positive and negative terminals of the display board to the positive and negative terminals of the battery under test, press the red button lightly with your finger, and the IED light will light up to display the real-time battery level. 2. Release your finger, the LED light will go out after a delay of 3-10 seconds, and it will not consume power at all when it is static. 3. With reverse connection function, even if the positive and negative connections are reversed, it will not burn, just adjust it Lithium battery display battery parameters: (the following data are reference values, there will be a 2% error range, do not shoot if high accuracy is required)

Reminder: 3.7V lithium battery uses 1 red power indicator and 4 green battery indicators (other voltage ranges are 1 red power indicator and 4 blue battery indicators) (Note: N is the number of battery cells) The first power indicator is red When the battery voltage is greater than N×3.3V, the second blue light is on When the battery voltage is greater than N×3.5V, the third blue light is on When the battery voltage is greater than N×3.7V, the fourth blue light is on When the battery voltage is greater than N×3.9V, the fifth blue light is on

Package list: Battery indicator*1 label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port Quick charge: No Voltage: 1.5
