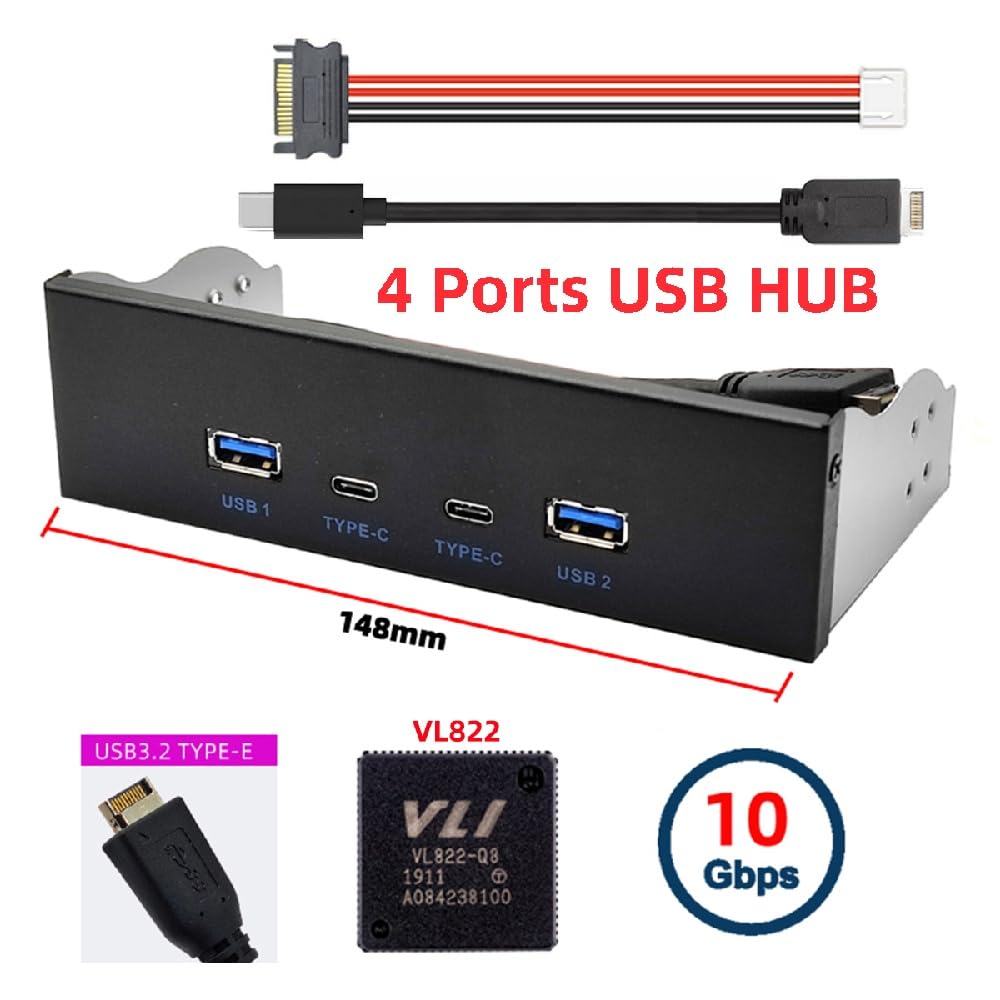

Xiwai 10Gbps USB Front Panel HUB Connector Motherboard Cable 10Gbps for Tray 3.1 Type-A & Type-C 4-Port - Type-E 5.25-inch CD-ROM

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

Compliant with USB-based specifications 3.1/3.0/2.0, USB Type-A interface, and 5.5-inch bays on the front panel of a PC. Compliant with USB 3.1 SuperSpeed (10 Gbps, 5 Gbps), USB 2.0 High-Speed (480 Mbps), and USB 1.1 Low-Speed (1.5 Mbps). Supporting Multiple IN, a new feature of USB 3.1 Gen2, it fully utilizes the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate, providing a highly integrated, application-specific design. Chipset: The VL822 supports Multiple IN, a new feature of USB 3.1 Gen2, fully utilizing the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate and providing a highly integrated, application-specific design. It allows you to connect an additional high-speed power supply, providing a maximum throughput of DC 5V 2A when in conjunction with a SATA port power supply. If your device cannot receive enough power from a USB port, our USB power adapter is the solution. This adapter allows power to be supplied from a SATA port, such as the SATA power supply on your PC. The Type-C female port only transfers USB 3.1/3.0 data and power; it cannot connect to USB-C video/audio/Thunderbolt devices. The Type-C connector is a new USB 3.1 design, featuring a reversible design with reversible plug and cable directions. USB Type-A interface and 5.5-inch bay on the PC front panel, compliant with USB 3.1 Super-Speed (10Gbps, 5Gbps), USB 2.0 Hi-Speed (480Mbps), and USB 1.1 Low-Speed (1.5Mbps). Supporting the new Multiple IN feature of USB 3.1 Gen2, it fully utilizes the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate, providing a highly integrated, application-specific design. The VL822 chipset supports Multiple IN, a new feature of USB 3.1 Gen2, and fully utilizes the available bandwidth of the USB 3.1 Gen2 bus to achieve a 10Gbps data rate, providing a highly integrated, application-specific design. Our USB power adapter solves your problem of needing to connect an additional Fast Power adapter and providing a maximum throughput of DC 5V 2A when with a SATA port power supply. With this adapter, you can power it from a SATA port just like a PC's SATA power supply. If you are using external devices such as portable 2.5-inch hard drives, a standard USB cable may not be able to supply the necessary power for the device to operate. This problem can be easily solved by using this USB 3.0 adapter and SATA power cable together. Wide Compatibility: Fully compatible with Windows 11/10/8.1/8/7/Vista/XP. Transforms a 5.25-inch CD drive space into a versatile hub with four USB 3.1 Gen 2 USB-A ports. Enhances the expandability of your desktop computer and meets a variety of needs. Easy installation and significant PC case expansion. Quickly add ports via the available 20-pin USB 3.2/USB 3.1 Key-A Type-E header to connect various external USB devices (please ensure your motherboard has a Type-E header before purchasing). The Type-C female port only transfers USB 3.1/3.0 data and power; it cannot connect to USB-C video/audio/Thunderbolt devices. The Type-C connector is a new design for USB 3.1, with a reversible design for the Type-C connector, and reversible plug and cable directions.
