DC 12V CNC Electronic Load Tester Voltage Current Power Monitor LED Display 0~150V 20A 150W With Temperature Controller

Charger included : Y Battery Included : no Accessory Type : Battery Accessories Brand Name : occkic Origin : Mainland China Certification : CE

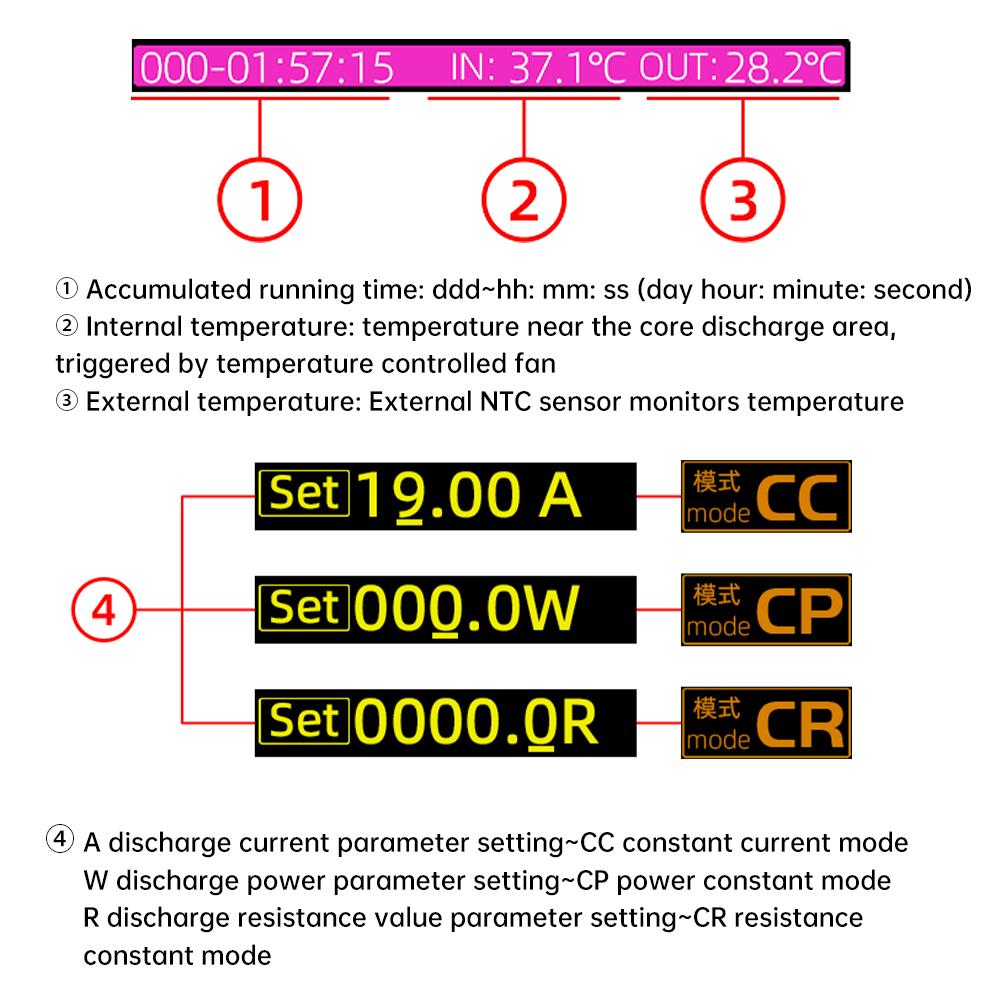

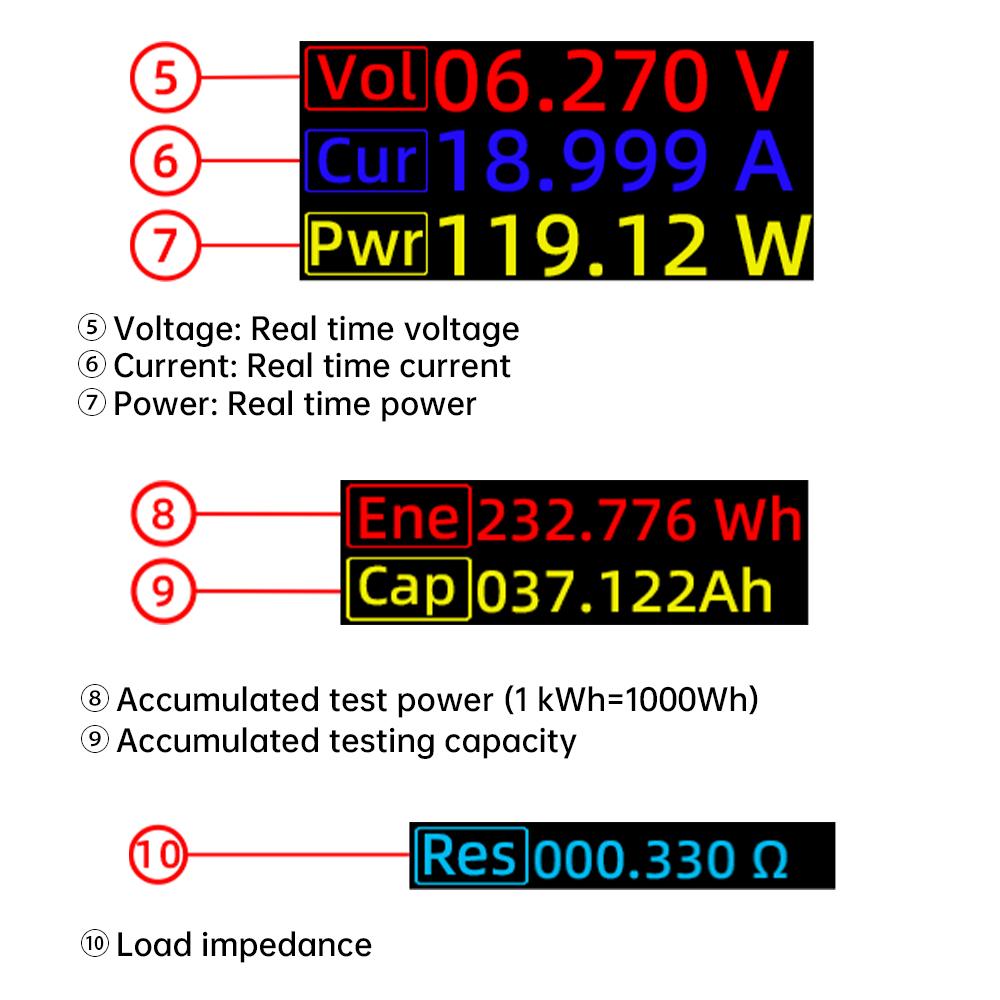

Features: 1. 2.4-inch color screen, clear vision: 2.4-inch high-definition color screen, data display vivid and intuitive, clearly visible. 2. Precise temperature control: with NTC sensor, real-time temperature monitoring to ensure reliable test results and prevent temperature difference from being misdiagnosed. 3. bilingual interface: Chinese and English switch freely, to meet the needs of global users, convenient and efficient operation. 4. four safety protection: over-voltage, over-current, over-temperature, over-power automatic protection, to ensure safe and worry-free use. 5. One key to zero: simplify data management, one key to quickly zero the accumulated data, improve work efficiency. Parameter: Operating voltage: DC12V Equipped with 12V 1A power adapter Load voltage (U): DC0~150V Load current (I): DC0~20A Load power (P): 0~150W (Maximum load 60W above 120V) P=U×I≤150W Wiring: A+ V+ V- A- four-wire system, downward compatible with two-wire system Electricity metering limit: 999999.9Wh Capacity measurement upper limit: 99999.9Ah Accumulative timing range: ddd:hh:mm:ss (days:hours:minutes:seconds) Operating modes: three modes CC-constant current mode CP-constant power mode CR-constant resistance mode Over-voltage protection: Support maximum 150V adjustable over-voltage protection. Overcurrent protection: support for maximum 20A adjustable overcurrent protection Over-power protection: Support maximum 150W adjustable over-power protection. Over-temperature protection: internal temperature >75℃, trigger over-temperature protection. Voltage limit discharge: also called low voltage protection, support, the default is not limited to voltage discharge, according to the demand for their own settings Time-limited discharge: support for up to 99 hours: 59 minutes time-limited discharge Heat dissipation mode: program-controlled fan, automatic operation when internal temperature ≥40℃ or current >3A. External Temperature Measurement: Connect the NTC 3950 10K 1% temperature sensor to measure and display the temperature of 0~100℃. Chinese and English interface switching: Support Zeroing accumulated data: Support Voltage and current no-load zeroing: Support Voltage open calibration: Support Current Open Calibration: Support Screen Brightness Adjustment: Support Screen sleep standby setting: Support PC Software Online: Not Supported Restore factory settings: Support Product Size：195×98×88mm Package include: Tester*1 Adapter*1
