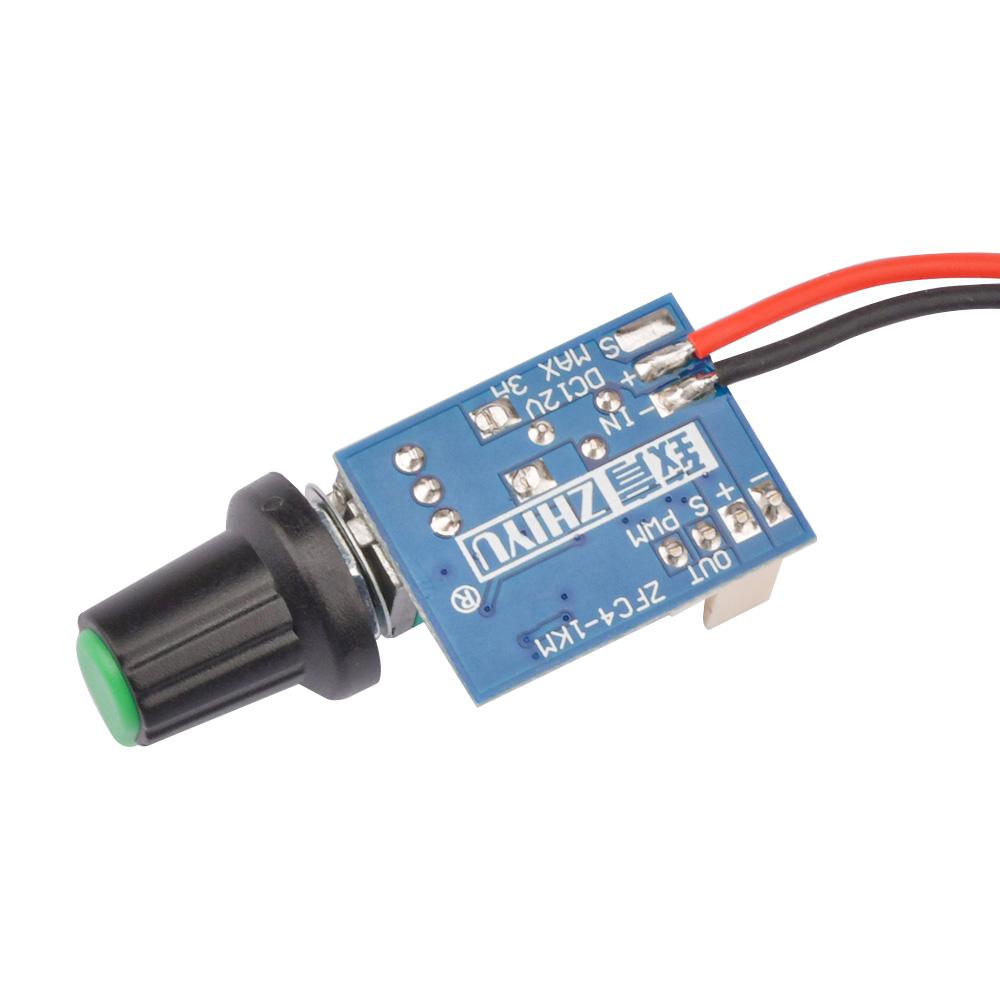

DC Motor Speed Controller PWM Speed Adjustable Switch With Knob Switch Electrical Equipment Governor Module Power Supply 12V

High-concerned chemical : none Type : others Origin : Mainland China Brand Name : occkic Working voltage : DC12V PWM signal mode : 5V25KHZ Fan current : no more than 3A Loss of circuit board itself : less than 20mA without fan

Features: 1. Using high-quality materials, the quality is guaranteed 2. With switch, can be turned off 3. The appearance of the product is exquisite 4. Simple and convenient wiring 5. Stable performance

Parameters: Working voltage: DC12V (can work under 8-15V voltage, please pay attention to the same fan voltage) Fan current: no more than 3A, this current is limited by switches and connectors, and can be expanded by power lines alone Loss of circuit board itself: less than 20mA without fan PWM signal mode: 5V25KHZ PWM signal output range: 0%-100% Start position PWM adjustment range: 0%-60% Output interface model: 2510-4P dislocation, conventional CPU, chassis fan socket, pin spacing 2.54mm

Function Description: Pay attention to the positive and negative poles and the power supply voltage. After the power supply fan is connected, it can be used. The potentiometer is turned off counterclockwise to the end, and the clockwise end is the maximum output. A separate small adjustable resistor (starting speed adjustment) on the board is used to adjust the speed of the just-open position If the speed change of the fan is opposite to the adjustment direction, it means that the fan is a reverse-sequence fan, and the (PF) setting point needs to be short-circuited with solder, and the power must be cut off before operation to avoid damage! The short-circuited PWM signal changes in the reverse direction with the adjustment, and the reverse-sequence fan can realize forward adjustment.

Precautions: This is a four-wire PWM fan speed controller. It can only control 12V four-wire fans that support PWM speed regulation. For example, many 12V four-wire chassis or CPU fans cannot control 2-3-wire fans.

Package includes: pwm fan controller Module X1 label:yes
