Model Number : mobile power supply case
Item Type : DIY Box & Shell
Brand Name : occkic
Origin : Mainland China
Features

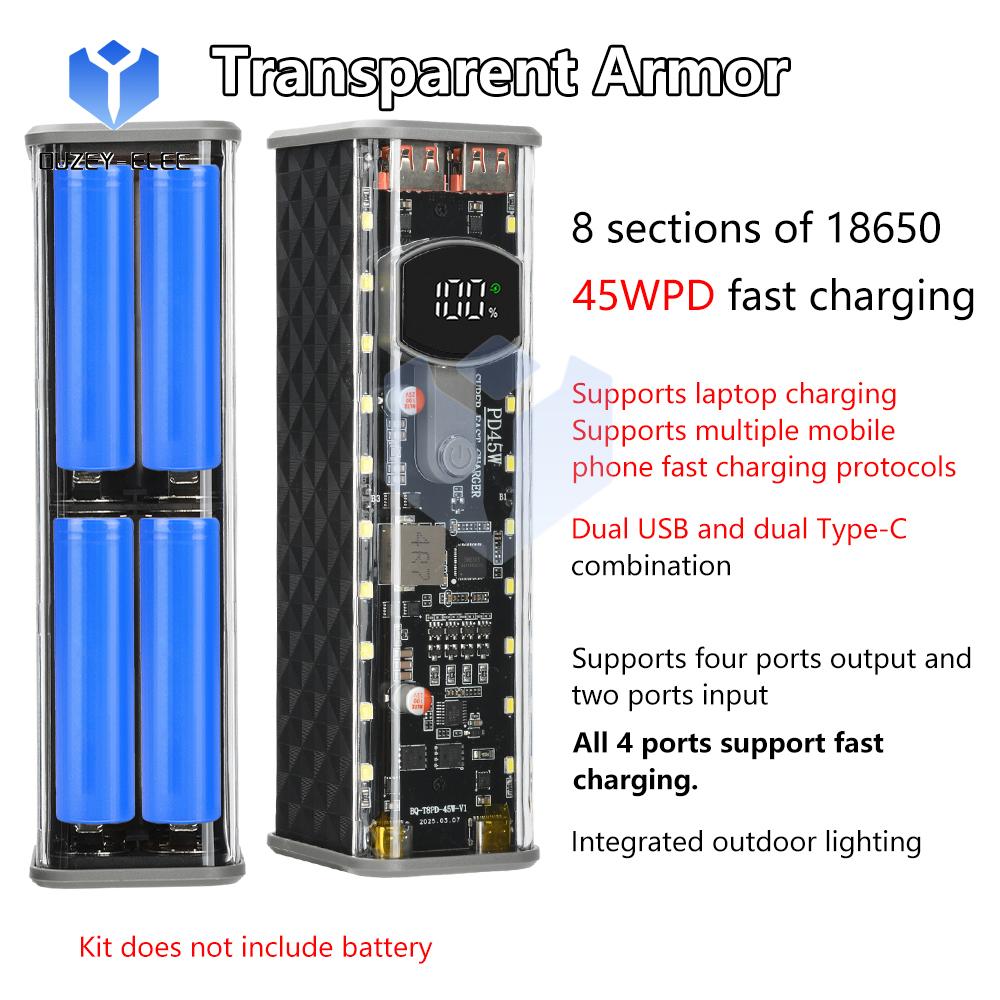

1.Mecha transparent design, full of sense of technology, internal structure at a glance, show personality
2.Support 8 18650 batteries installation, large capacity energy storage, to meet the demand for long time power consumption
3. Welding-free design, easy and fast assembly, suitable for electronic enthusiasts to start making.
4.Equipped with PD fast charging protocol, compatible with a variety of devices, providing efficient and convenient charging experience.
5. Built-in outdoor lighting, emergency lighting at night, multi-purpose, portable and practical
Parameter
PD+Flash Charge+Super Fast Charge+Quick Charge Version Parameters:
Output Power: 22.5W (Peak 25W)
USB1+2 Outputs: 5V/3.1A, 9V/2.5A, 12V/1.87A (Multiple simultaneous outputs are 5V only.)
IN1 Input (IP): 5V/2A (Simultaneous inputs are not supported.)
IN2 Input (Micro): 5V/3A. 9V2A (side charging and discharging only 5V)
Type-C input: 5V/3A, 9V/2A, 12V/1.5A;
Type-C output: 5V/3.1A, 9V/2.22A,12V/1.67A (support PD protocol to have output)

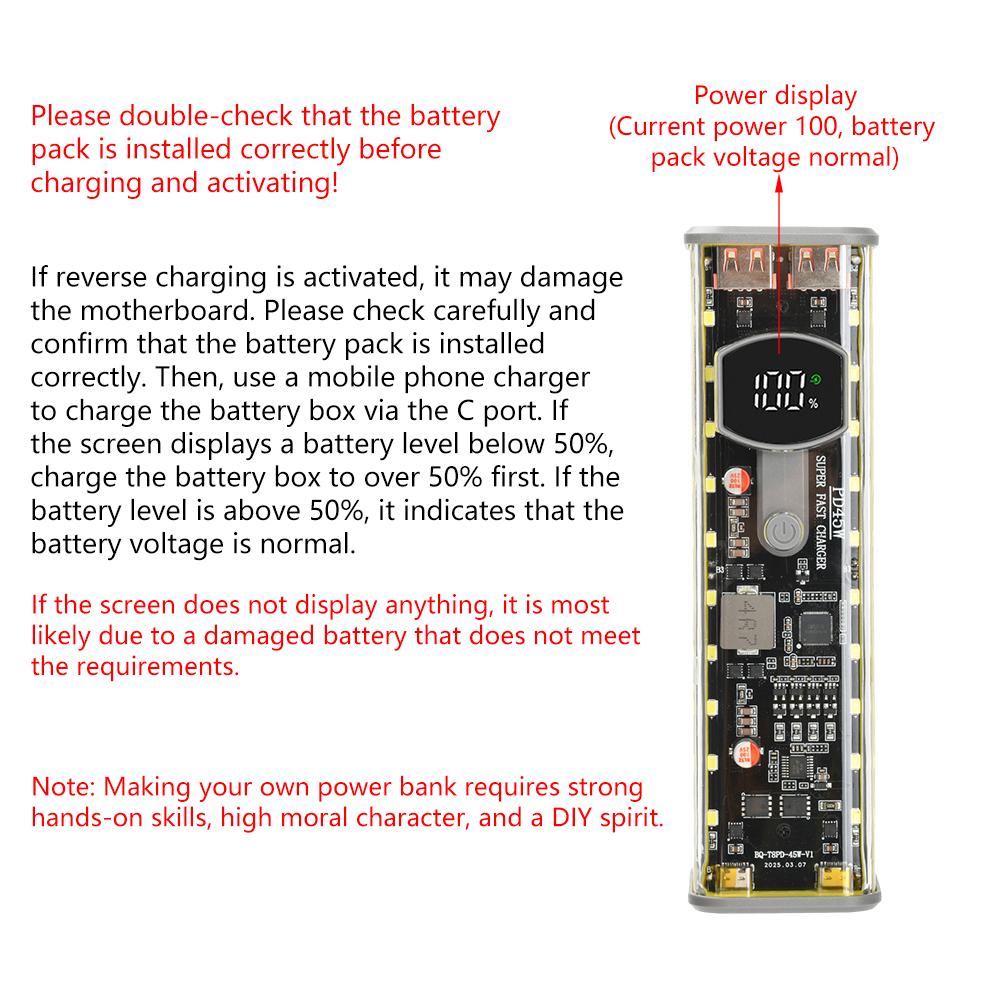

Key function: click to show the power level; long press to turn on the LED light and then click to switch the light control mode
Color: black frame + gray + transparent , yellow frame + gray + transparent
Effective voltage: 3.15V-4.15V (spring has a voltage drop)
Capacity requirements: the minimum real capacity of the battery pack can not be less than 10,000 mA, otherwise the power did not fall out of the battery has not actually discharged the power
Note: If the phone's private protocol is not supported (USB without fast charging), you can use PD charging (TYPE-C output), PD public protocol output is more stable.
Fast charging specifications (support protocols): (
with data transmission charging cable, one of the following protocols can be successful communication handshake)
support 5V, 9V, 12V voltage stalls input/output
compatible with BC1.2, IP (charging cable control)
integrated SCP 22.5W super fast charging output protocol
integrated QC2.0/QC3.0 output fast charging protocol
integrated FCP, AFC input/output fast charging protocol
Support PPS, PE2.0, SFCP output fast charging
Support PD2.0/3.0, PE1.1 input/output protocols
Note: The product only allows the installation of 21700 (21 * 70MM) flat battery, voltage between 3.5V-4.2V, more than two years of batteries, the number of cycles more than 300 times the battery, basically does not last; found that charging intermittently, only a few minutes, ten minutes, half the time the cell phone can not be charged, these are all the reasons why the battery is over-performing. In addition the product does not support modification, welding. If the use of non-compliant batteries are not responsible for after-sales. The motherboard is retrofitted with an anti-reverse connection chip, installing the reverse does not burn the motherboard, but due to the spring shrapnel is one piece, the battery broken skin, battery short-circuit, a positive and a negative, series connection will cause the burn spring, but re-installed correctly, the motherboard can always be used normally, will not burn.
Package include
Chargemaster case *1 (battery not included)
Accessory kit *1
label:yes
Battery capacity: 43200
Charge indicator: No
Number of ports: 1 port
