High-concerned chemical : none
Charging Current : 10A
Usage Scenario : Power BMS
Certification : CE
Balance Function : Active Balanced BMS
Handware or Smart : Handware BMS
Charge and Discharge Port : Common Port BMS
Type : LI-ION Battery BMS
Origin : Mainland China
Brand Name : occkic
Function : Overcharge Protection,Over Discharge Protection,Overcurrent Protection,Short Circuit Protection
Product features:
1. A variety of models, respectively 4S, 3S, ternary lithium, lithium iron phosphate and lithium titanate universal,
2. Hybrid balance, no need to detect the pressure difference between batteries, directly through the capacitor adjacent energy transfer to high frequency equivalent parallel, single-chip main control with low resistance MOS tube, excellent low power performance and high efficiency and high precision balance effect, long-term use of balance accuracy up to 0.005V-0.01V, lower circuit power consumption.
3. The operating power consumption is about 1.5-2.5mA. When the voltage of a single battery is lower than 2.5V, it can be automatically closed or manually closed through the switch.
4. The maximum equilibrium current is about 6A, the larger the pressure difference, the larger the current, 1V pressure difference is about 6A; 0.5V about 3A; 0.2V is about 1.2A (the above parameters are 4S power lithium battery, with 10CM 0.75mm square, measured, voltage acquisition and measurement point is the on-board plug).
5. Can be extended combination, according to the battery series mode to choose the appropriate combination of modules, modules can be reduced or extended, series can be reduced or multi-board cascaded expansion use, please see the specific connection mode.
Product parameters:
Models and specifications; 4S/6S/17S
Balanced mode: active balanced energy transfer
Balance current: maximum 6A (the greater the pressure difference, the greater the current, vice versa)
Balancing accuracy :0.01V
Operating power consumption :1.5mA to 2.5mA
Low voltage protection :<2.5V Automatic shutdown Power consumption :OmA
Applicable battery: ternary lithium, lithium iron phosphate, lithium titanate applicable voltage: 2.5V-4.4V
Product size: Figure
Plug :15EDG-3.81
Supporting wire: 4S/6S wiring length 30cm, 17S wiring length 40cm, random color
Running indicator:
Running indicator. If the indicator is on, the system is running normally. If the indicator is off, the battery voltage is lower than 2.5V. The battery is hibernated or the battery switch is off
Hybrid active balancing:
The adjacent capacitor energy transfer, and then through high frequency equivalent parallel, to obtain high precision and efficient balance effect, low power design, simplify the complex, the circuit does not need to detect the pressure difference between batteries, long-term operation state to protect the battery voltage balance. The operating power consumption is only 1.5mA to 2.5mA, and the single battery voltage is lower than 2.5V to enter the hibernation state, and the hibernation power consumption is lower than uA
Level to protect the battery from excessive discharge.

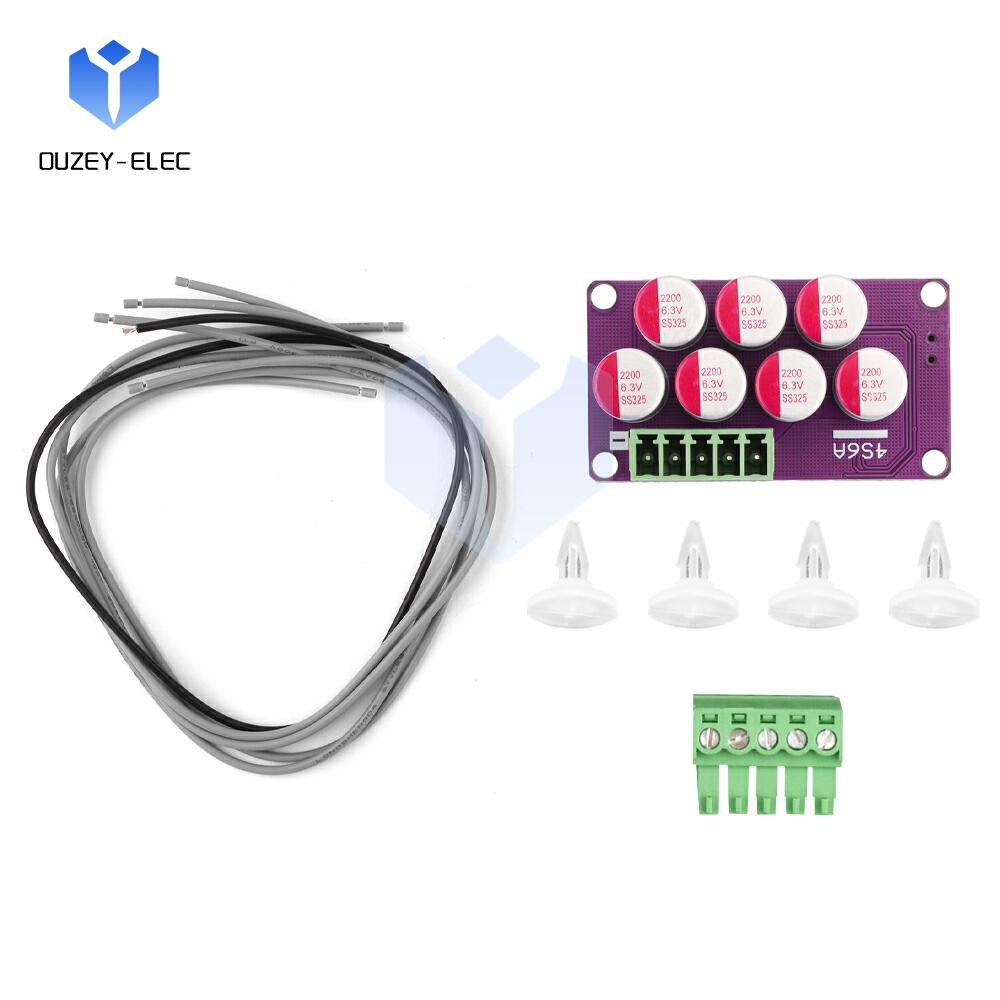

Product list:
1X main circuit board,
1X Connection Plug (1007 18AWG 0.75mm)
Several wires
Note:
Pay attention to the polarity, line sequence error or short circuit, will cause irreversible damage to the components, please be careful to protect the wire circuit and wire insulation.
