2~5S 100W Bidirectional Fast Charging Module 18650 Lithium Battery Control Board Charge/Discharge Module LED Battery Indicator

High-concerned chemical : none Charging Current : 10A Usage Scenario : Power BMS,Energy Storage BMS Certification : CE Balance Function : Passive Balanced BMS Handware or Smart : Handware BMS Charge and Discharge Port : Common Port BMS Type : LIFEPO4 Battery BMS Origin : Mainland China Brand Name : occkic Function : Overcharge Protection,Over Discharge Protection

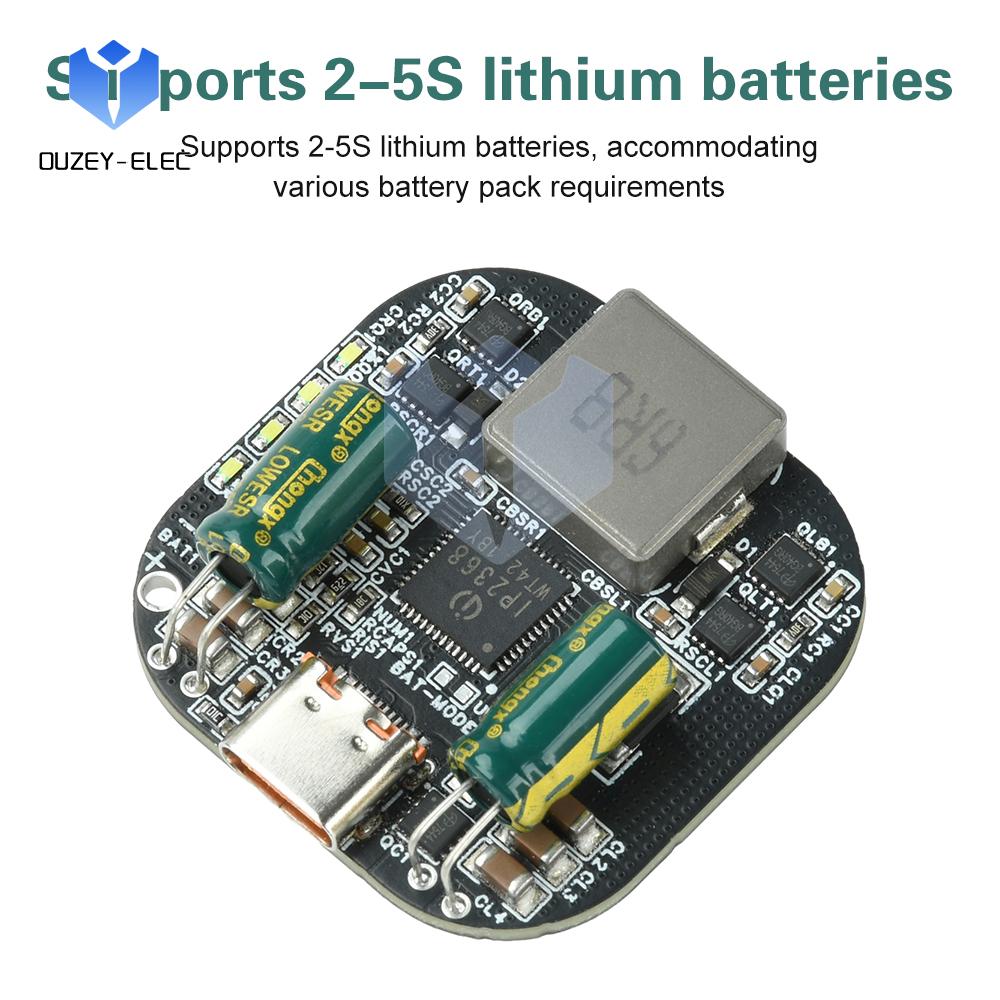

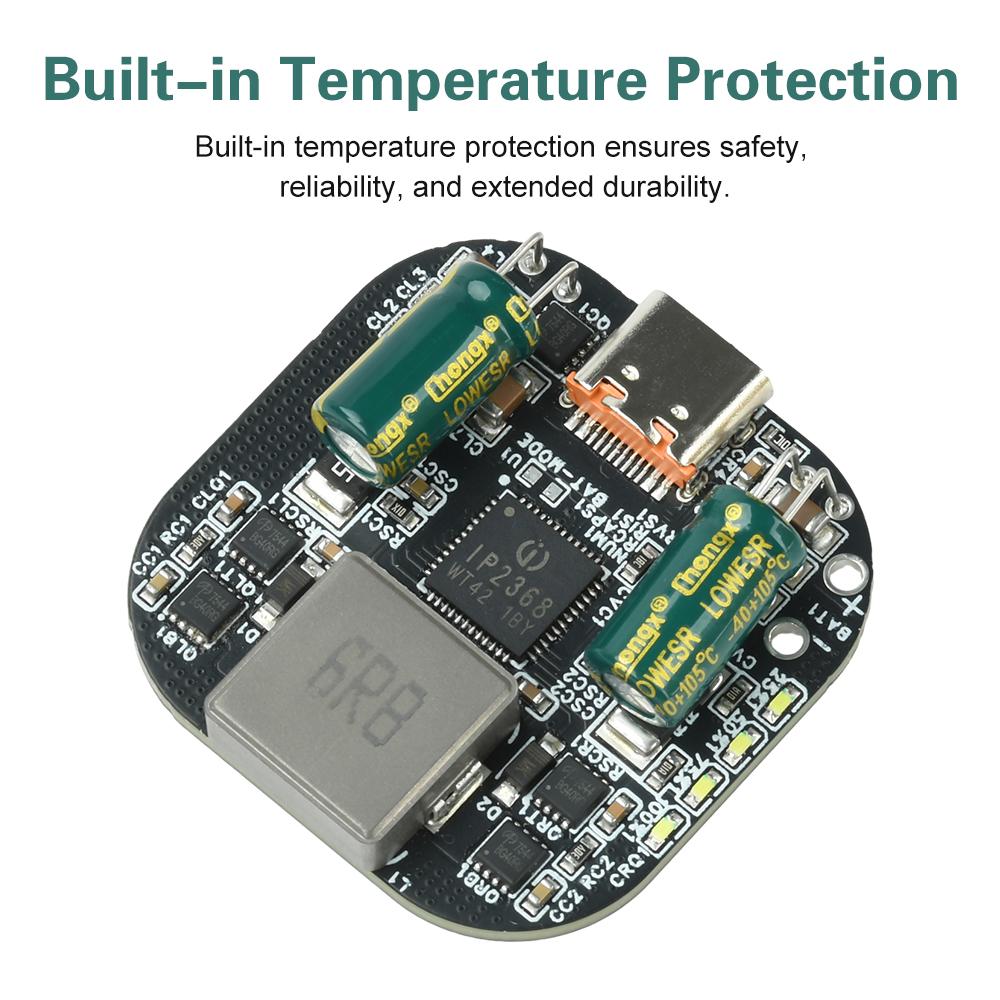

Product Features: 1. Supports 2-5S lithium batteries, accommodating diverse battery pack requirements 2. Bidirectional 100W high power for efficient and rapid charging/discharging 3. Type-C port supporting PD3.0 fast charging protocol 4. Built-in temperature protection for enhanced safety, reliability, and durability 5. Component-free backplate facilitates heat sink installation 6. Integrated 4-LED battery indicator for real-time status monitoring

Product Specifications: Voltage: 2-5S lithium batteries or lithium iron phosphate batteries Interface: Type-C port Power: 100W Supports multiple fast-charging protocols including FCP, AFC, SCP, DRP, SRC, PD3.0 Factory default: 4S 60W 4000mAh. Backplate free of components for custom heatsink installation Default temperature protection included; compatible with 2S-5S batteries. Dimensions perfectly match 4S 18650 battery packs 4 LED indicators display charging/discharging status and current capacity Ideal for DIY high-performance fans, ultra-fast power banks, and rapid charging of drone/RC model batteries Capacity-to-resistance relationship: 5000mAh corresponds to 6.2kΩ 10000mAh corresponds to 12.4kΩ 15000mAh corresponds to 18.7kΩ 20000mAh corresponds to 24.9kΩ 25000mAh corresponds to 30.9kΩ Calculation formula: RCAP = Qmax / 800 Example: 6.2kΩ = 5000mAh / 800 Power vs. Corresponding Resistance Values: 20W corresponds to 5kΩ 30W corresponds to 7.5kΩ 45W corresponds to 11.2kΩ 60W corresponds to 15kΩ 100W corresponds to 25kΩ Calculation formula: PCCIN = 4 × RISET Example: 100W = 4 × 25kΩ Relationship between battery cell count and corresponding resistance: 2 cells in series corresponds to 6.2kΩ 3 cells in series corresponds to 9.1kΩ 4 cells in series corresponds to 13kΩ 5 cells in series corresponds to 18kΩ

Product list: Module × 1

label:yes

Battery capacity: 43200 Charge indicator: No Number of ports: 1 port
