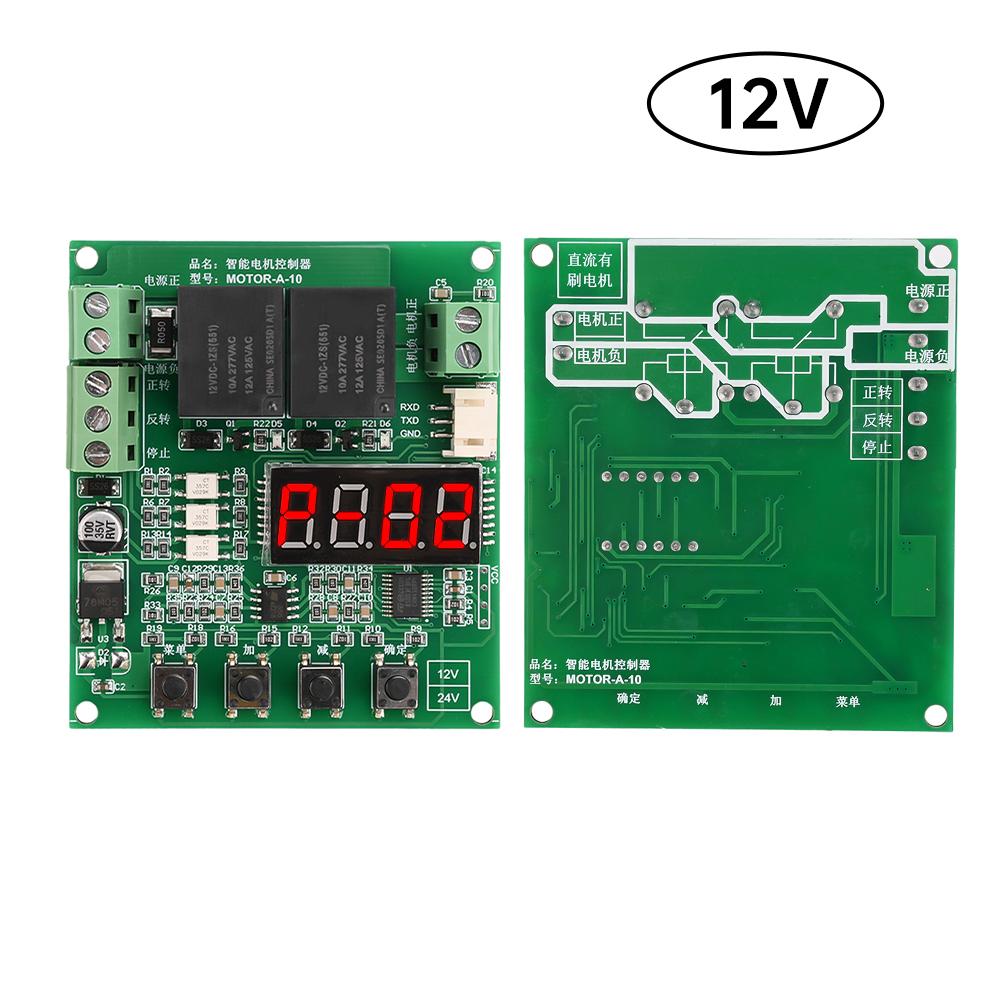

DC 12V/24V Motor Drive Controller Governor Forward/Reverse Rotation Control with Limit Timing Delay Overcurrent Stall Protection

High-concerned chemical : none Type : General Purpose DC Drives Origin : Mainland China Brand Name : occkic

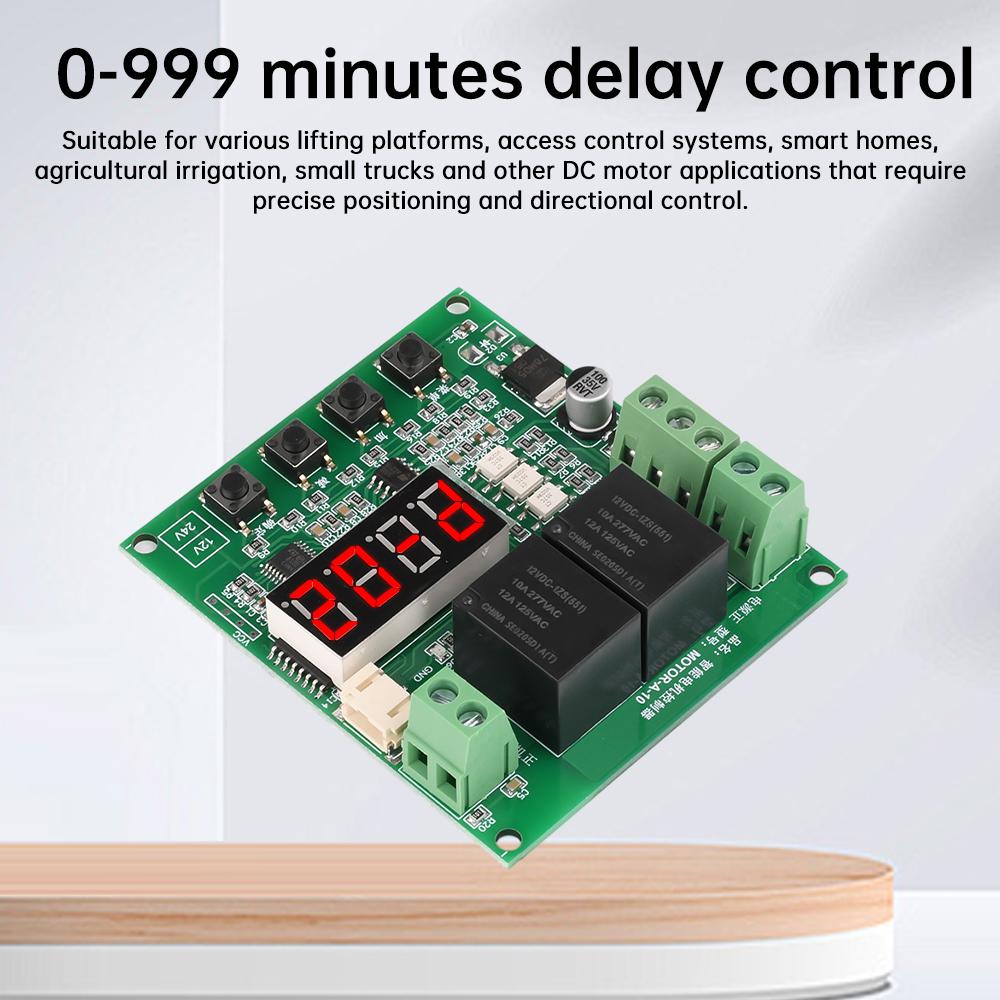

Product selling points: 1. Free to switch the motor forward or reverse, simple operation, suitable for mechanical equipment that need to change the direction of movement 2. Built-in limit switch interface, can be connected to external limit switches to achieve position control and protection, to avoid mechanical collision damage. 3. Support set running time, automatically control the motor running cycle, suitable for automation control scenarios, enhance work efficiency. 4. When the motor is overloaded or blocked, the controller can automatically reduce the output or cut off the power supply, effectively protecting the motor and circuit from damage. 5. Suitable for all kinds of lifting platforms, access control systems, smart homes, agricultural irrigation, small trucks and other DC motor applications that require precise positioning and direction control.

Product parameters: Power supply: optional DC12V/24V Input signal: high level (PNP) [DC4-26V]. Trigger logic: pulse (width judgement), edge (counting) Motor action: forward pass, reverse, forward and reverse, counting forward and reverse Protection: 1. current protection (blocking stop, set the maximum blocking current 8A) 2. Limit protection (stop when touching the limit switch) 3. Timing protection (forward, reverse, timing time to stop, 0.01-999 minutes adjustable) Timer: two 0.01-999 minutes timer Communication: TTL serial communication, parameter power-off storage Display: four eight-segment digital tube

Setting steps: I. Function setting: Setting 1: module power on, menu key long press 1S to enter setting 1 Setting 2: display (P-XX), short press plus or minus button to select output mode, short press OK button to enter setting 2 Setting 3: display (IX.XX), short press plus or minus key to adjust motor protection current, short press OK key to enter setting 3 Setting 4: Display (nX.XX), short press plus or minus key to adjust motor forward time, short press OK key to enter setting 4 Setting 5: Display (FX.XX), short press plus or minus key to adjust motor reverse time, short press OK key to enter setting 5 Setting 6: Display (LX.XX), short press plus or minus key to adjust the value (short press menu key to switch setting position) short press OK key to enter setting 6 Save setting : Display (rXXX), short press plus/minus button to adjust value, short press OK button to save setting. (Note: Long press the plus and minus keys to quickly add or subtract values.)

Second, auxiliary settings (important) 1. Module power into standby mode, display (P-XX) current mode, signal triggered to enter the working state display countdown, working state short press OK key can pause, short press again to start 2. Setting 1 state long press menu key 1S to enter setting 0, display (A-XX) short press plus, minus button to adjust whether to restore factory settings, press OK to save, module restart 3.Setting 1 state long press OK key to close the display d-0F, and then long press OK key to open the display d-on (set off the display, power on again will automatically delay 60S to close the display, any key to wake up) 4.Setting state 120 seconds without operation to exit the setting interface

Package list: Motor controller *1

label:yes
