Voltage range : No voltage
Output Power : 50-150（include150）
Item Type : others
Electronic : no
Charger included : N
Battery Included : no
High-concerned chemical : none
Model Number : Mobile Power Bank Module
Accessory Type : Charger Accessories
Brand Name : occkic
Origin : Mainland China
Certification : CE
Battery type : lithium polymer battery
Maximum output power : 65W/100W
Product size : 72x27x6mm
Feature : 5 USB ports
Feature 1 : Type-C, Lightning, MicroUSB, Type-A1, Type-A2
Features:
1.Multi-interface design, with 5 USB ports, Type-C, Lightning, MicroUSB, Type-A1, Type-A2.
2.Easy to use, wide application range
3.High efficiency and reliability
4.Portable mobile power module
5.Nixie tube power display
Parameters:
Battery type: lithium polymer battery
Maximum output power: 65W/100W
Default is nixie tube power display

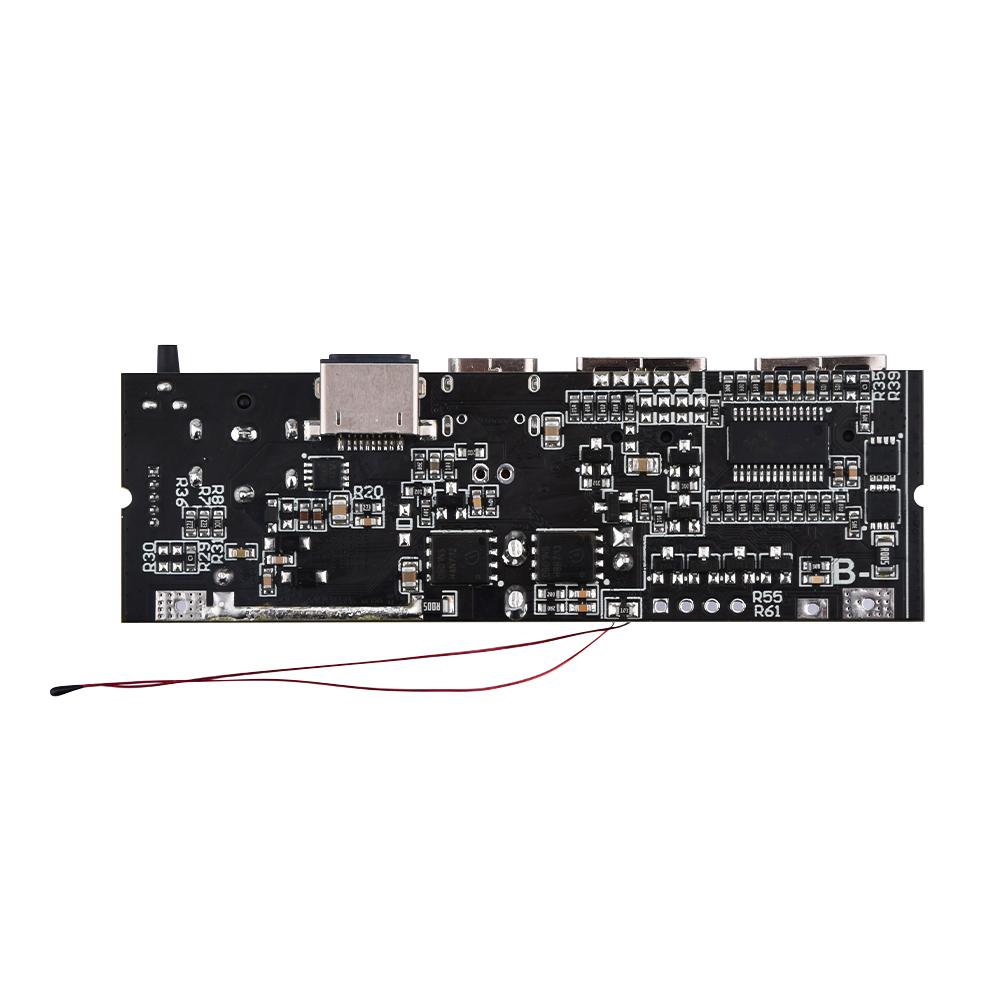

The motherboard has five USB ports by default, Type-C, Lightning, MicroUSB, Type-A1 and Type-A2.
In addition, the DC port can only be charged and cannot be discharged. Input 5-12V
Lightning supports PD2.0 fast charging input.
Type-C supports AFC/FCP/SCP/VOOC/PD3.0/PD2.0 fast charging input.
Support PPS/PD3.O/PD2.0/AFC/FCP/QC3+/QC3.0/QC2.0/SCP fast charging output.
Type-A1/Type-A2 supports Apple/AFC/FCP/VOOC/QC3+/QC3.0/QC2.0/SCP fast charging output.
MicroUSB supports AFC/FCP/SCP fast charging input.
Type-C supports input and output bidirectional fast charging.
Input supports 5V/9V/12V/15V/20V voltage.
PPS output supports 3.3V-21V/3A.
PD3.0/PD2.0 output supports 5V3A/9V3A/12V3A/15V3A/20V5A.
QC2.0 output supports 5V3A/9V3A/12V3A.
QC3.0 supports 5V-12V output voltage, 200mV/Step
AFC output supports 5V3A/9V2A/12V2A.
The input supports 5V/9V/12V voltage.
FCP output supports 5V3A/9V2A/12V1.5A.
The input supports 5V/9V/12V voltage.
SCP output supports 5V4.5A and 10V2.2A.
Input supports 5.5V3A.
VOOC output support 5V@4A 。
The Type-A1/Type-A2/Type-C interface can be discharged simultaneously.
maximum 5V@3A , please use single port for quick charging.
Product size: 72x27x6mm
Matters needing attention:
1: The wire connected to the battery outside the main board must be able to withstand 10A current, and at least use more than 1 square meter of copper wire, and 1.5 square meters of ordinary wire. It is not necessary to be too thick, but it cannot be too thin. Too thin will have potential safety hazards. (Because the battery terminal current is high)
16AWG wire is recommended.
2: The motherboard has its own protection chip, which only supports 2-5 strings of batteries. The 6-string lithium iron phosphate battery needs its own protection board, and the overcurrent protection current of its own protection board must be greater than 15A, otherwise it can not work normally, which will seriously damage the motherboard chip.
3: Because the current at the battery end is too large, the battery must be welded with thick wire to test. It is not allowed to use crocodile clip to clamp the pad to test the charge and discharge. We refuse after-sales if we must do this.
4: 4.15V/4.2V/4.35V/4.4V 18650, polymer and ternary lithium battery can be used for selecting battery. Large monomer can be used. The capacity of single battery string is not more than 25000mAh, and the display will be inaccurate if it exceeds the capacity. Support 3.65V lithium iron phosphate, not disposable dry batteries, nickel hydrogen, nickel chromium, lead acid batteries, etc. The battery shall be at least 2 strings and at most 6 strings, and the total voltage shall not exceed 23V. The minimum charging and discharging current of a single battery string should be more than 10A. If not, please lower the power.
5: The battery capacity of the motherboard must be preset. Please see the introduction in the details.
6: It supports OPO flash charging and HW super fast charging. Different protocols have different power. 65W and 100W are the power of PD protocol. VOOC is 20W and SCP is 22.5W. Please confirm the demand before taking the picture. We will not accept the return of your mobile phone if it does not support your mobile phone. All welded products are not supported for return and replacement. (Unsupported mobile phones are not available to third parties because their own protocols are not disclosed.)
7: The battery connected to this motherboard must meet the requirements and be connected in series. If your battery is a common capacity small current single or multiple parallel batteries, please refer to other motherboards.
8: The wire connecting the battery to the main board must be thick, and the battery must be able to pass more than 10A without heating
Package include:
1X module
label:yes
Battery capacity: 43200
Charge indicator: No
Number of ports: 1 port
