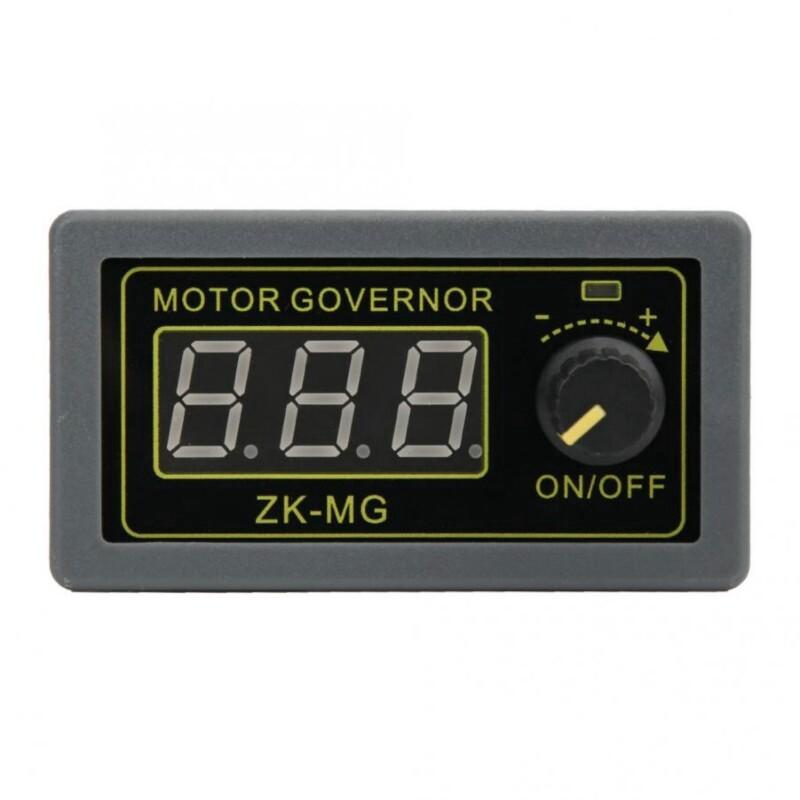

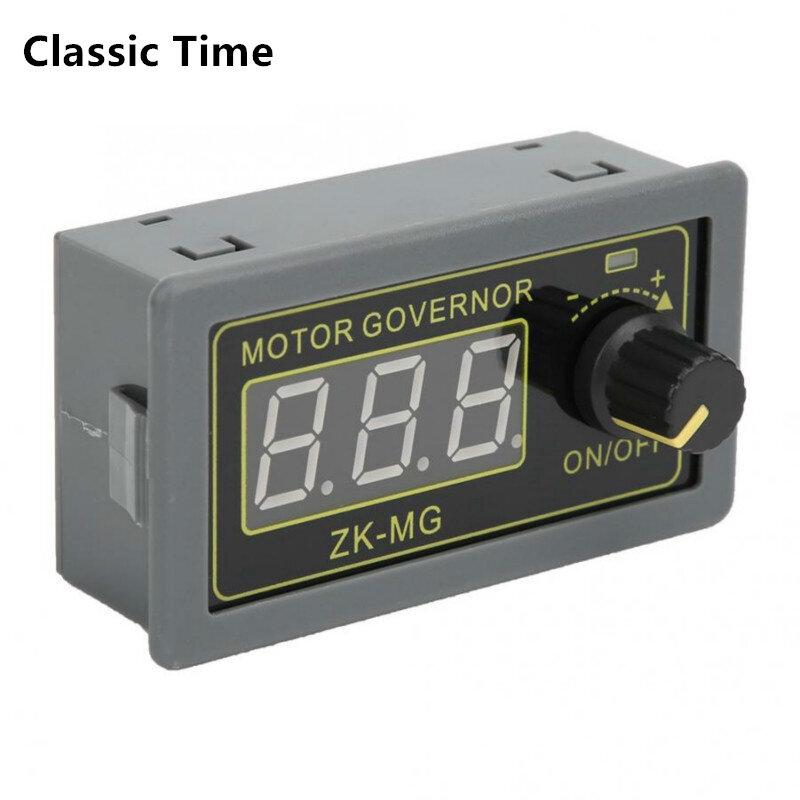

Pwm Dc Motor Controller Motor Speed Regulator Light Dimmer Led Digital Display Encoder 5v 12v 24v

Feature: 1. Equipped with start-stop button and external switch control to meet various customer control requirements.

2. Motor soft start function. When the motor starts, the current increases slowly, and there is no inrush current, which can effectively protect the motor and prolong the service life.

3. The duty cycle, upper and lower duty cycle, and operating frequency can be set to allow the customer to operate and use their motor based on their operating characteristics.

4. The digital encoder knob adjusts the motor speed, which is more accurate and consistent than ordinary potentiometers.

5. With standard 5135 instrument housing for customer installation.

Specification:

Item Type:Motor Controller

Working Voltage: DC5V~30V, Input Anti-Reverse Protection

Rated Current: 5A, Maximum Current 15A

Maximum Power: 150W

Working Frequency: 1KHz~99KHz Adjustable, 1KHz Stepping, Default Frequency 20KHz, Accuracy about 1%

Duty Cycle: 0-100%, 1% Step

Product Size:79 x 43 x 26mm / 3.11 x 1.69 x 1.02in

All Settable Parameters Are Powered Down.

Package List: 1 x Module

Note:

Digital encoder knob operation

In the default interface: (default display duty cycle)

Short press - switch motor start and stop

Long press - enter the settings interface

Counterclockwise rotation - duty cycle reduction

Rotate clockwise - increase duty cycle

Under the settings screen:

Short press - select set parameters and switch between duty cycle lower limit, duty cycle upper limit and work

The lower limit of the duty cycle is displayed as “L” + two digits. The upper limit of the duty cycle is displayed as “H” + two digitor “100”. The display frequency of the working frequency is “F” + two digit.

Long press - exit setting interface

Rotate counterclockwise - reduces the corresponding settings

Rotate clockwise - set the parameter to increase accordingly

Post STOP port

The open key or 3.3v level can be connected externally. When the key is closed or the 3.3V level is lowered, the start/stop state of the motor is switched.

Connector type: Motor Controller Voltage: DC5V~30V, Input Anti-Reverse Protection
