PCI E card compatible with laptops and Features a POST LED Motherboard debug analyzer for assembly and desktops. indicator. repair.

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

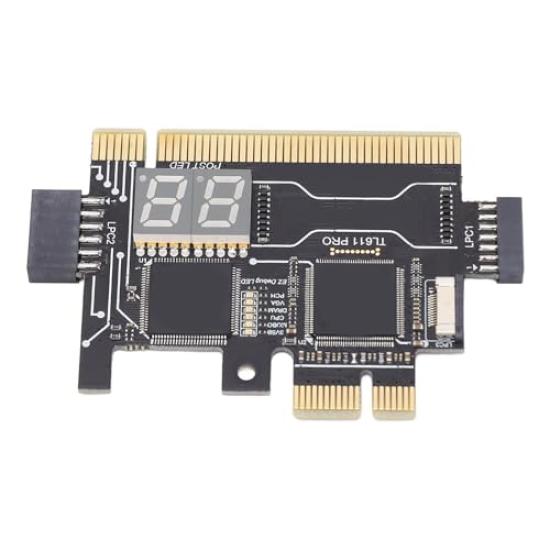

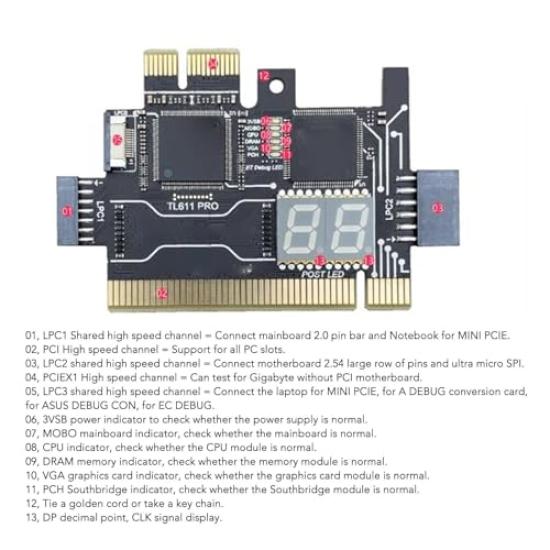

【Multifunctional】: The mainboard debug card can detect multiple channels and LED indicator lights, providing information about the status of the power supply, motherboard, CPU, memory, video card, and hard drive. 【Wide Range of Applications】: This motherboard debug card kit is suitable for Gigabyte and other brands, and is a versatile tool for various computer models. 【Compatibility】: The TL611 Pro motherboard diagnostic card supports PCI E, mini PCI E, and LPC. It is compatible with all PCI slots. 【Ease of Use】: The motherboard diagnostic card has a high recognition rate and automatically identifies the power module, making it simple and easy to use. 【Performance】: The TL611 Pro motherboard diagnostic card is designed to provide accurate and reliable diagnostic information, enabling users to efficiently troubleshoot and diagnose problems with their computer systems. Material: PCB Product Interface: PCI E, LPC Supported Brands: Applicable to Gigabyte, etc. Product Size: Approx. 84 x 56mm / 3.31 x 2.2 inches The diagnostic card has the following settings: 01. LPC1 Shared High Speed Channel = Connects the mainboard 2.0 pin bar to the notebook for MINI PCIE. 02. PCI High Speed Channel = Supports all PC slots. 03. LPC2 Shared High Speed Channel = Connects the motherboard's 2.54 large pin row to Ultra Micro SPI. 04. PCIEX1 High Speed Channel = Enables Gigabyte testing without PCI motherboard. ＞05. LPC3 Shared High Speed Channel = Connects the laptop for MINI PCIE, A DEBUG conversion card, DEBUG CON, EC DEBUG. 06. 3VSB Power Indicator to check if the power is normal. ＞07. MOBO Mainboard Indicator to check if the mainboard is normal. 08. Check the CPU indicator and whether the CPU module is functioning correctly. 09. DRAM memory indicator: Checks if the memory module is functioning correctly. 10. VGA graphics card indicator: Checks the graphics card module.
