GLOTRENDS SA3234C PCIe SATA expansion SATA III ASM1164 4-port card, 6Gbps,

------------------------------------------------------------------------------------------------------------------ 【Voltage Compatibility】 When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.

【Plug Type】 Our products use Japanese plug types (A or B type). Please use a conversion adapter if necessary.

【Important Note on Transformers and Adapters】 A transformer adjusts voltage to match your device’s requirements. A conversion adapter only changes the plug shape and does not adjust voltage. Using only a conversion adapter without a transformer may result in damage to the product.

【Liability】 We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer. ------------------------------------------------------------------------------------------------------------------

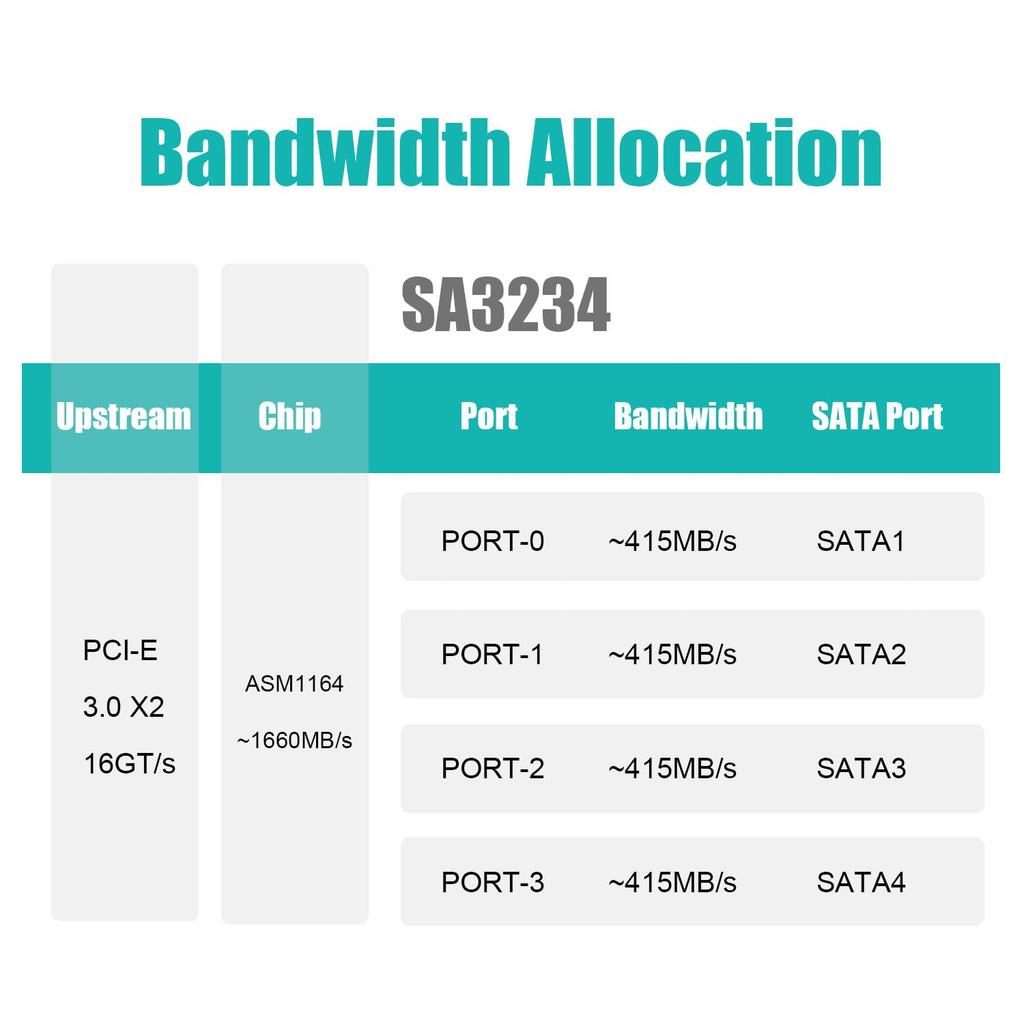

4-Port SATA Expansion Card: Adds up to four SATA III (6Gbps) drives to your desktop at once, converting a single PCIe x4 slot into a 4-bay storage pool for software RAID such as unRAID, TrueNAS, ZFS, Proxmox, and Windows Storage Spaces. Hardware RAID is not supported. All ports at 415MB/s: PCIe 3.0 x2 upstream operates at 16GT/s, with each of the four SATA ports achieving up to 415MB/s. Large-capacity multi-drive transfers, media libraries, and backup processes are completed quickly without bottlenecks. OS boot from SATA drive: Supports OS booting from port 1. You can install or migrate Windows, macOS, or Linux to a SATA SSD and use it as a dedicated system drive without occupying an NVMe slot. Driver-free and widely compatible: Plug and play compatible with Windows (excluding XP), Mac OS, Linux, and NAS systems. Before initial installation, please set the SATA mode to AHCI in your BIOS or UEFI. Compatible with X4/X8/X16 slots. Includes all accessories: four SATA III cables (350mm/13.5in), one 1:5 SATA power splitter cable, and both a 12cm standard bracket and an 8cm low-profile bracket. Can be installed in any PC or NAS case. The GLOTRENDS SA3234C is a 4-port PCIe SATA expansion card with an ASM1166 controller that adds four SATA III drives to a single PCIe slot. It plugs into any PCIe X4/X8/X16 slot, adding six SATA III (6Gbps) ports to your PC, allowing you to connect and operate six HDDs or SSDs simultaneously without changing your motherboard. Ideal for storage pools and software RAID: By combining six drives onto a single card, you can build a full-fledged storage pool (unRAID, TrueNAS, ZFS, Proxmox, OpenMediaVault, Windows Storage Spaces). This card passes all drives directly to the OS (pass-through), providing the necessary environment for software RAID. Hardware RAID is not performed. Speed where you need it: The upstream is PCIe 3.0 X2 (16GT/s), and each SATA port reaches a maximum of 415MB/s. Ideal for multi-drive transfers, media libraries, and nightly backups. Jobs are processed at full speed without any bottlenecks between the drive and the CPU. Supported Environments and Settings No driver installation is required. It works out of the box with Windows (excluding XP), Mac OS, Linux, and NAS systems. Two things to note before use: Set the SATA mode to AHCI in the BIOS/UEFI. Also, this card is an HBA for data storage and cannot boot an OS from a connected drive. Monitor all drives without opening the case Six LEDs are built into the side of the port. Red light indicates power on and operation, and blinking indicates reading or writing. You can check the operating status and access of all 6 drives at a glance.
