Solar PV Cable 8/10/12/14/16AWG Tinned Copper Wire PV Wire for Outdoor Car RV Boat Marine Home Solar Panel use 10/6/4/2.5/1.5mm2

Cable size range : 10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG) 1 Meters (3.28ft) / 2 Meters (6.56ft) / 3 Meters (9.84ft) /  5 Meters (16.4ft) / 10 Meters (32.8ft) Solar Cable Structure  :

Package included : 1PCS Cable

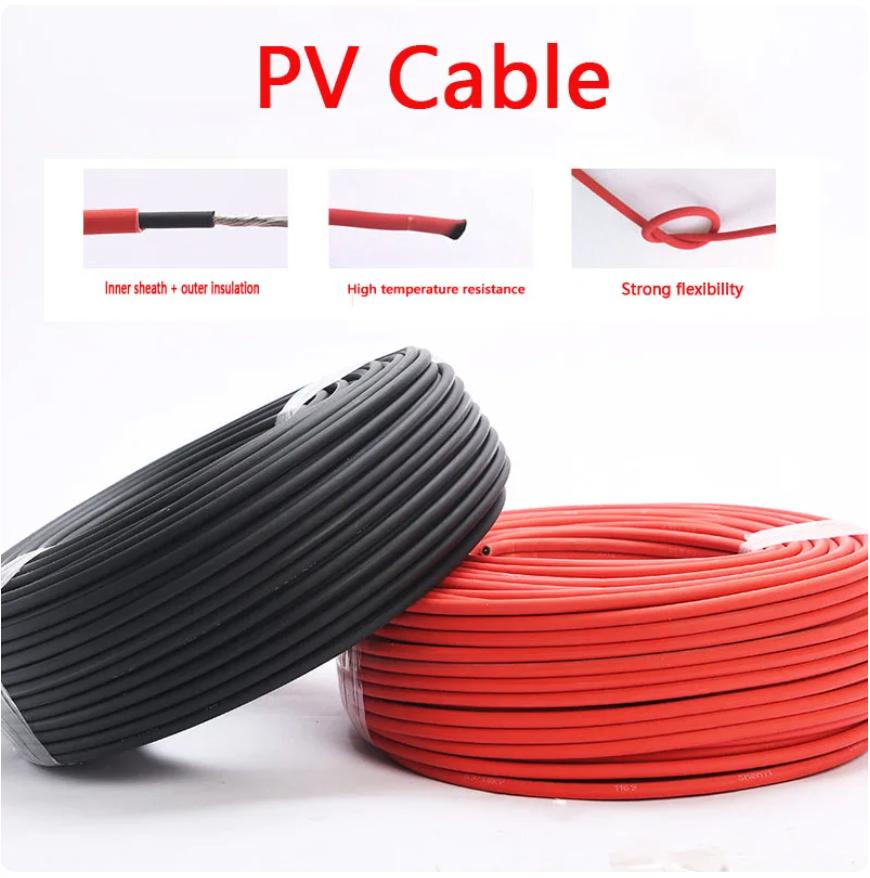

INTRODUCTION specifications:2.5/4/6/10mm² Rated voltage:AC 0.6/1KV,DC1.5KV Color:Red / Black Feature: Double insulation cover,TUV approved Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper Outer Sheath:Halogen-free low-smoke polyolefin(XLPO) Inner Insulation:Halogen-free low-smoke polyolefin(XLPO) Service life:25 years (-40 ℃ -90 ℃) Application:Indoor and outdoor solar installations Fire rating:UL94-V0 Seller declaration: This item is double-sheathed cable, which is not as soft as single-sheathed cable and silicone cable, please pay attention to the distinction

TECHNICAL PARAMETERS Model Safe current(A) Core diameter (mm) Conductor cross section(mm²) 16 AWG 19 30*0.25 1.5 14 AWG 28 35*0.3 2.5 12 AWG 36 56*0.3 4 10 AWG 48 84*0.3 6 8 AWG 65 142*0.3 10 6 AWG 95 227*0.3 16 4 AWG 120 190*0.4 25

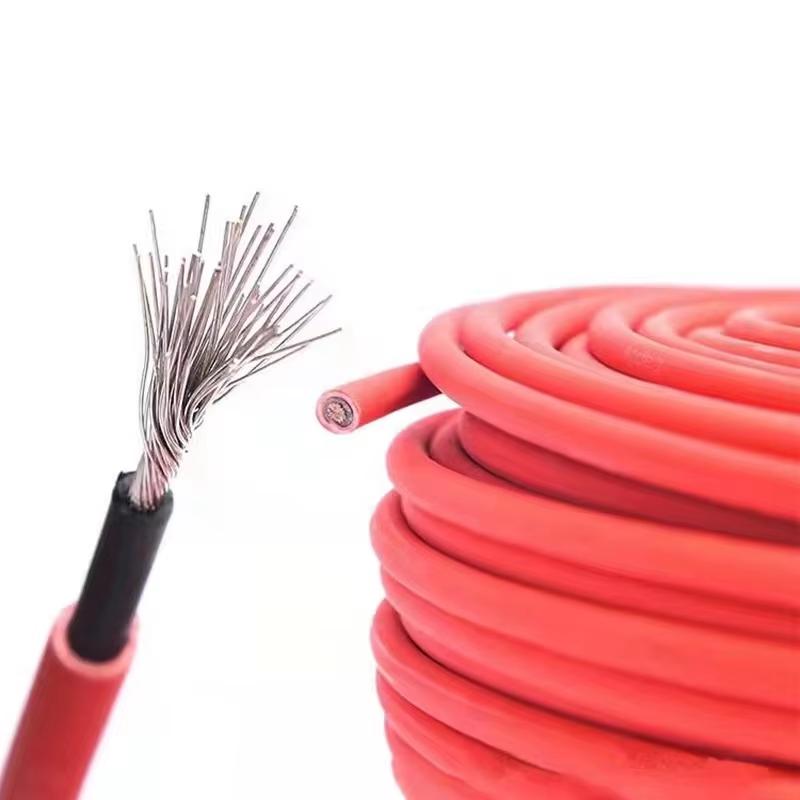

Conductor:Tin-plated high-purity oxygen-free copper, electrical performance and structure meet the requirements of ASTMB33 or ASTMB172 Insulation:Thermosetting environmental protection insulation material, generally black Sheath:Thermosetting radiation-crosslinked polyvinyl chloride environmental protection UV-resistant sheath material

ADVANTAGES

Origin: Mainland China Conductor Material: Copper Certification: CE Does it include wireless functionality?: No Choice: yes High-concerned chemical: none Voltage: 81-600V（include600V） Structure: Without modular telephone connectors Does it include a Battery?: No Insulation Material: PVC is_customized: Yes Brand Name: NONE Use: Not Telecommunication
