LED Display 48V 96V Battery Equalizer Battery Voltage Balancer For 4 X 12V lead acid Lifepo4 Lithium For Solar Panel System

What is Battery Equalizer?

Specialized for keep up the voltage balance of batteries connected in series during the Charging and Discharging process, due to differences in the chemical composition and temperature of the battery cell that connected in series,It causes two battery charge and discharge differences even the battery is idle, also due to the different levels of self-discharge could lead to an imbalance between serially connected battery at charging process, because there are differences, it could make a battery excessive charge or discharge,and the other one insufficient charging or discharging.

How do Battery equalizer Work?

This battery equalizer can compensate both parties when the battery are connected in series as voltage difference exceeds 10 mV, then the battery equalization starts to work, Final achieved balance of the batteries set. It can be connected for long periods for automatically battery state of equilibrium.

48V Version :

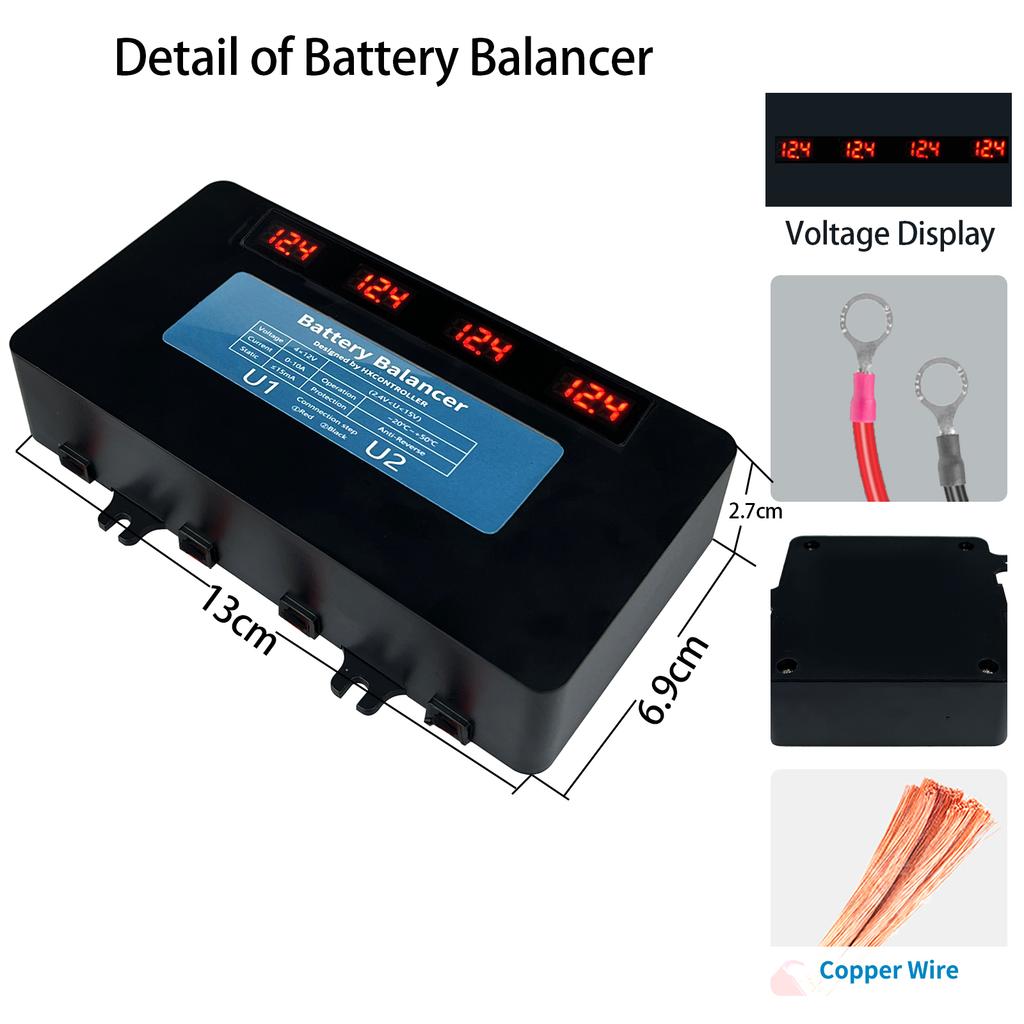

Condition: 100% Brand New Color: Black Battery Nominal Voltage: 4 * (2.4V/3.6V/6V/9V/12V) Compensation Current: 0-10A Standby Current: ＜15mA Protection: Reverse Polarity Protection Under Voltage Lock Out: 1.8V Product Size: Approx. 69 * 130 * 27mm Product Weight: Approx. 410g

24V Version:

Color: Black

Battery nominal voltage:2x(2.4V/3.6V/6V/9V/12V) Optimizing current:0-10A Quiescent current:15mA(12V) 1.2mA(24V) Dimensions:75*75*27mm Protection:Reverse polarity protection Product Weight: Approx. 240g support battery type:  Gel/Fod/AGM lead acid battery,lifepo4 and other lithium battery all are ok

Package Included:

1 x Battery Equalizer( 24V or 48V) 1 x User Manual

48V Version:

24V Picture:

Is Smart Device: Yes Application: Charger Controller Suggestion battery voltage: 24V 48V or 96V( 2pcs) Brand Name: NoEnName_Null Origin: Mainland China is_customized: Yes High-concerned chemical: none Model Number: LED Display Battery Equalizer Maximum Current: 10A
