New Solar Charge Controller PWM Controller With LCD Display 10A 20A 30A 12V 24V Dual USB 5V Output Solar Panel Charger Regulator

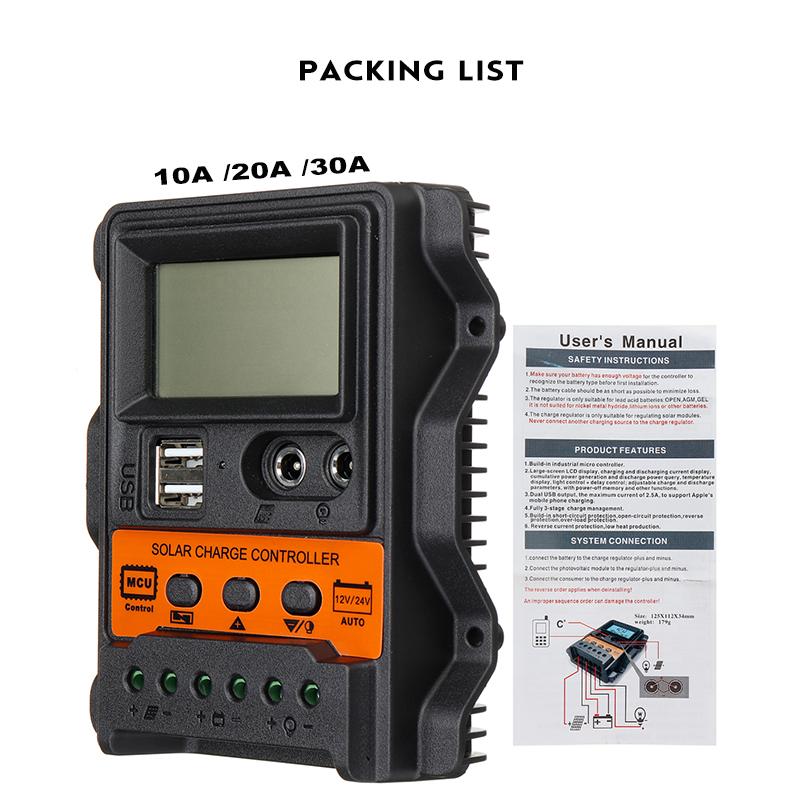

Package listing: 1 * Solar Panel Charger

This product is suitable for lead-acid batteries, colloidal batteries, and dry batteries. Lithium AND Lifepo4 batteries are not applicable

Specifications: Size:4.9x3.9x1.1in（12.5x10x3cm） USB output: 5V/2.5A Standby current: <10mA Rated Voltage:12V/24V Rated Current:10A/20A/30A Max.PV Voltage:50V Max.PV Input Power:390W(12V)520W(24V) Working temperature: -35 to +60 degrees Ncrease charging voltage: 14.4V (sealed type) Floating charge voltage: 13.7V (default, adjustable) Discharge cut-off voltage: 10.7V (default, adjustable) Discharge recovery voltage: 12.6V (default, adjustable)

Description: -Industrial-grade master chip, sampling accuracy, temperature, charging current, Discharge current accurate real-time display, power generation at a glance. - Automatic focusing ，tracking charging, high charging efficiency, non-stop detection During charging, bidirectional focusing tracking. -Large-screen LCD display, adjustable charging and discharging parameters. When the output is off, the time. Can be adjusted, which is more convenient. -Acomplete three-phase charge management, effectively protect the battery, the battery is more Durable. -Built-in overheating, overcurrent short circuit, open circuit protection, reverse connection. Protection, when the fault is eliminated, the controller automatically recovers, does not damage.

Note: 1. Please allow 1-3cm error due to manual measurement. Please make sure you do not mind before you bid. 2. The colors may have different as the difference display, please understand

Please feel free to contact us if you have any questions. Hope a nice day!

Brand Name: NONE High-concerned chemical: none Origin: Mainland China Choice: yes semi_Choice: yes
