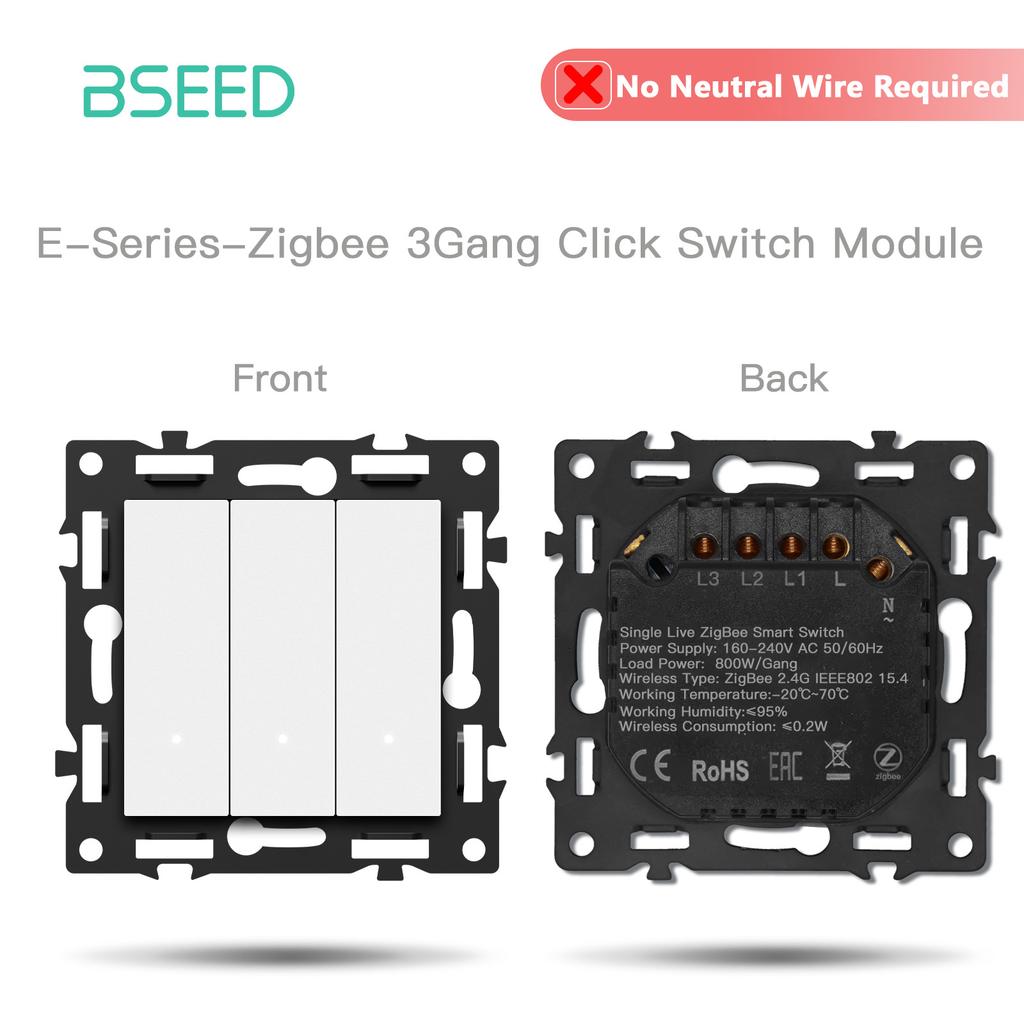

BSEED Zigbee Click Switch Modules No Need Neutral Wire Light Part Smart Sockets DIY Combination 86mm Glass Frame ST TV Cat6 Key

BSEED Zigbee Click Switch Modules Single Live Smart Light Switch Parts Glass Frame DIY Combination Wall Sockets USB Charge Key

Product Introduction:

Series：E Click Series

Rated Current:

Switch: 10A

Socket: 16A

Load:800W/Gang

Wireless consumption: ≤0.2W Max.

Spannung: 90-250V(AC)

Relative Humidity:10% ~ 93%

Working Temperature: -30 ℃~+70℃

Certification:CE, BS, RoHS, GCC, FC

Zigbee Type：Zigbee IEEE802 15.4

APP: Tuya/Smart Life/Yandex Voice

Control: Google Home, Amazon Alexa, Alice

<u>Wire: </u>

<u>Light(1/2/3/4Gang) Switch: NO Need Neutral Wire</u>

<u>Dimmer Switch: Need Neutral Wire</u>

<u>Curtain Switch: Need Neutral Wire</u>

<u>Roller Switch: Need Neutral Wire</u>

Back Light: ON-White OFF-Yellow

Moduel shape:Round

Wall Box Type:Round & Square

1/2/3Way:Control Light From 1/2/3 Places

Size:

86*86mm

157*86mm

228*86mm

228*86mm

299*86mm

370*86mm

Material: Glass Frame

Features:

Multi-Control Association: Zigbee switches have 1/2/3/4way and can control one light from four Different places(the maximum is 4 way).Set up through the app.

Note:You have to cut off the power and during the installation.

Origin: Mainland China EU LVD Voltage: High voltage: Above 50Vac or 75Vdc Certification: FCC Remote Distance: Zigbee unlimited Brand Name: BSEED Support Smart Device: Google Home/ Amazon Alexa/IFTTT Colors: White Choice: yes High-concerned chemical: none Switch Type: APP Control Max. Voltage: 110V - 240V Relative Humidity: 95% Support APP: SAMRT LIFE/TUYA APP Material: Glass Is Smart Device: Yes Working Temperature: -20℃~+70℃ semi_Choice: yes
