750 Degree Millivolt Replacement Thermopile Generators Used on Gas Fireplace / Water Heater / Gas Fryer Cluster Thermocouple

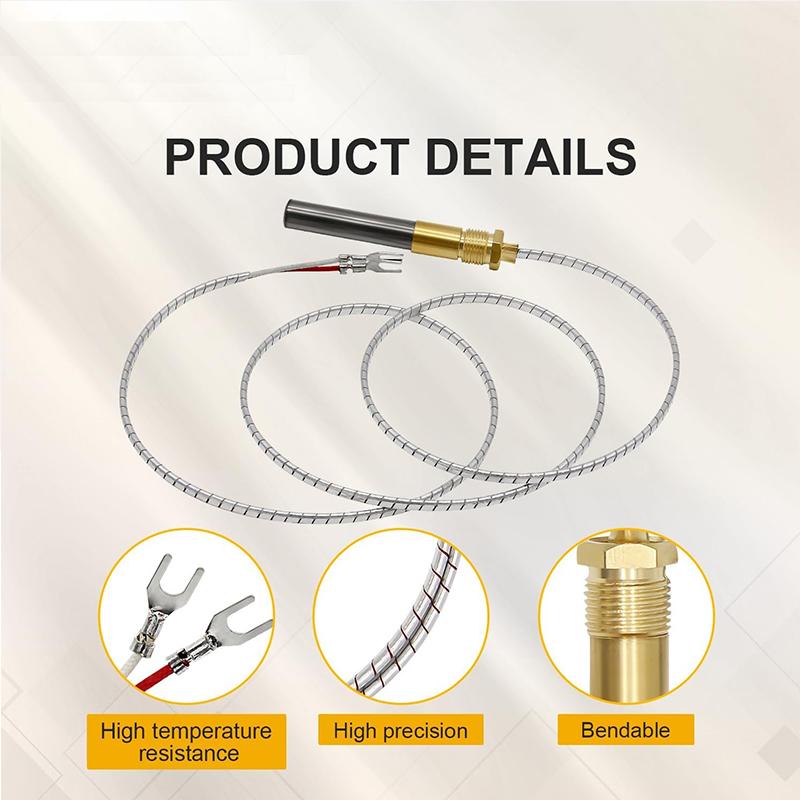

750 degree Millivolt Replacement Thermopile Generators Used on gas fireplace / water heater / gas fryer Cluster thermocouple Specifications: Material: Metal Length: 0.9m/ 35.43 in Thread Size: 7/16 in Size: 54x10.6x8.8mm/ 2.12x0.41x0.34 in Connection Leads: 2 Wire Forked Terminal to be Connected to Gas Valve Voltage: 750mV

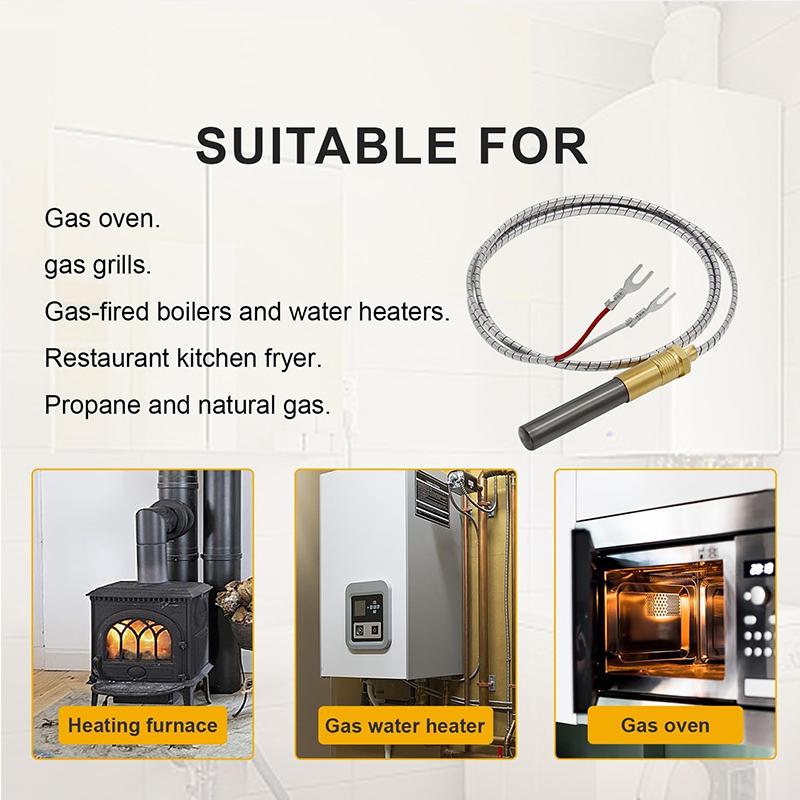

750 Millivolt Replacement Thermopile Generators have long been used in self-powered heaters and hot water equipment. It has been proven in millions of appliances as the contractor's preferred thermopile and are found in many of today's self powered gas fireplaces. From the Manufacturer Millivolt Replacement Thermopile Generators have long been used in self-powered heaters and hot water equipment. The Honeywell CQ200A has been proven in millions of appliances as the contractor's preferred thermopile and are found in many of today's self powered gas fireplaces. The Thermopile is a Replacement of Fireplace Pilot Burner Assemnly Parts with Internal resistance (25°C) around 4000 mΩ and heating voltage above 750mV. Specifications: Length 36"(914.4mm) Glass Fiber Wire. Connecting type: spiral type and two-pole plug-in type. normally installed on plilot assembly used for fireplaces, frying, heating appliance Normal working temperature 700-750°C. Replacement of Heatilator Heat n Glo 36" Lead Thermopile, Fits Empire DV210, DV215, GWT25, GWT35, and GWT50 Models Replacement of PITCO 60125501 Model It will needs about 60 seconds (2 minutes ) to heat up to the 750mV and the flame should be heat the middle of the head sensor, So you may need time to waiting the valve start work. Replace Part Number: Q313A, 60125501, 60J79, 60J7901, H5882, R942, R1054, 2103-512, 1950-001, 071515, 53374, 7533113. The Repalcement of heatilator thermopile 100% Tested, Quality Assured. Suitable For American Deep Fryer Thermostat Control Valve Pilots Light For Models: QV32 QV32-A QV32B QV32B-A (Pre Serial # 0021080519) QV36 QV36-A QV36B-A (Pre Serial # 0021076968) QV36D QV36D-A QV36DB QV36DB-A QVI25 QVI30 QVI35 QVI-25FB QVI-30FB QV Pier Heat N Glo Gas Stoves: AT-Grand (Also fits the B, C and D models). CSA approved parts quality assured. 750 Millivolt Replacement Thermopile Generators have long been used in self-powered heaters and hot water equipment.

Electronic: No Origin: Mainland China Battery Included: no Theory: Temperature Sensor High-concerned chemical: none Use: Industrial Certification: CE Brand Name: ZUIDID Semi-finishedproduct: No
