10/20/30/40/50/60/100A PWM Solar Charge and Discharge Controller LCD Display Dual USB Auto Solar Cell Panel Charger Regulator

Specifications: Shell Material: Plastic Back Board Material: Iron(10A-100A) Color: Black+Blue Display: LCD Screen Batt Voltage: 12V/24V auto Charge Current: 10A, 20A, 30A, 40A, 50A, 60A，100A(pls choose which current you need) Discharge Current: 10A, 10A, 10A Self-consumption: ＜10MA Operating Temperature: -35~+60 Max Solar Input: 12V battery, the highest 23V Float Charge: 13.7V(defaul, adjustable) Discharge Stop: 10.7V(defaul, adjustable) Discharge Reconnect: 12.6V(defaul, adjustable) Charge Reconnect: 13V Voltage of Open Light: Solar Panel 8V(Light lights delay) Voltage of Close Light: Solar Panel 8V(Light off delay) USB Output: 2 way USB output, 5V/2.5A(MAX) Size: (L)X(W)X(H) 13.3x7x3.2cm

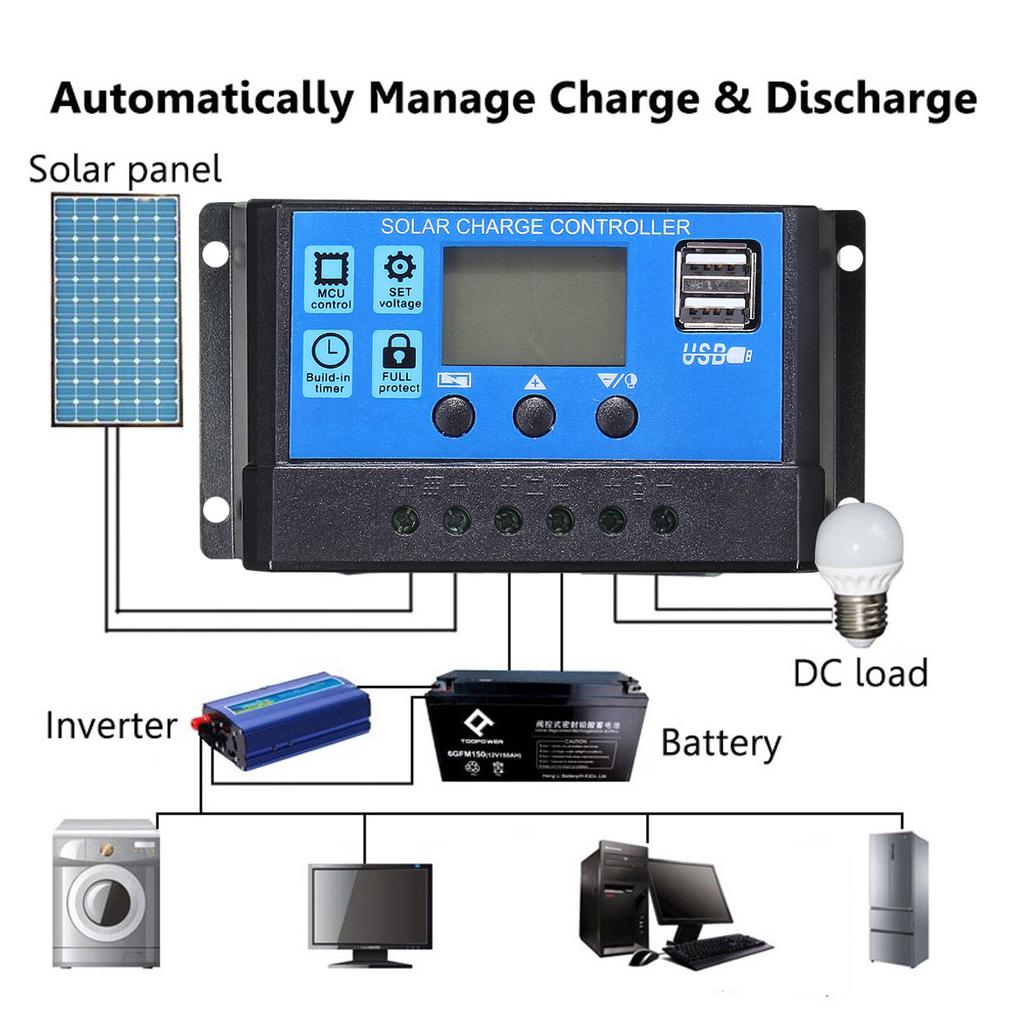

Features: ● Build-in industrial micro controller ● Fully 3-stage PWM charge management ● Big LCD display, all adjustable parameter ● Dual mosfet reverse current protection, low heat production ● Dual USB output, the maximum current of 2.5A, to support Apple's mobile phone charging ● Build-in short-circuit protection, open-circuit protection, reverse protection, over-load protection ● Suitable for solar green light, solar light boxes advertising board, solar insecticidal lights, housing solar power generation system, marine solar power generation system, outdoor survival solar power generation system

Application: Solar System Controller High-concerned chemical: none Origin: Mainland China Certification: CE Brand Name: ZRGAE Choice: yes
