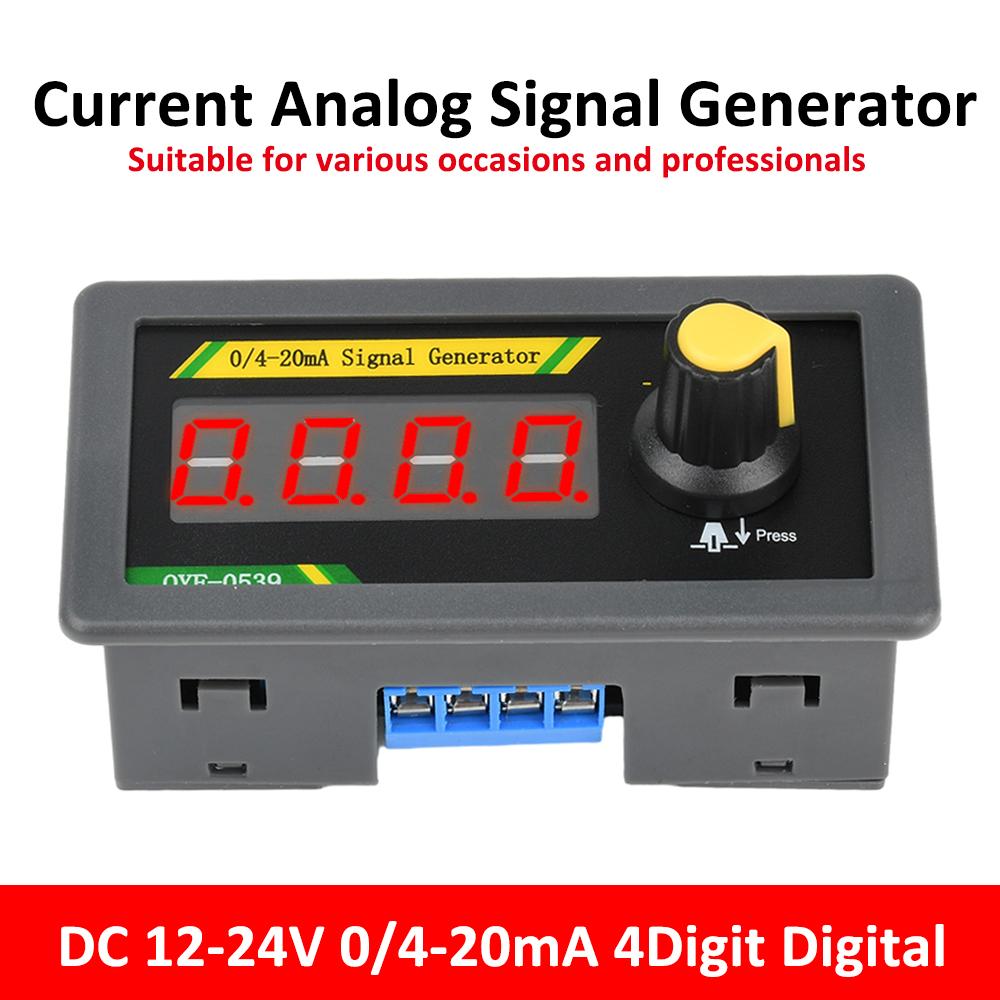

DC 12-24V Current Analog Signal Generator Signal Display Meter Sensor PLC Debugging Signal Generator 0/4-20mA Signal Output

<kse:widget data-widget-type="customText" id="1005000012900404" type="relation"></kse:widget>

DC 12-24V Current Analog Signal Generator Signal Display Meter Sensor PLC Debugging Signal Generator 0/4-20mA Signal Output

Features:

1. Dual-mode output: support 0-20mA, 4-20mA signal output, compatible with all kinds of industrial equipment. 2. Easy adjustment, the rotary encoder can be switched to: coarse adjustment (1mA step), medium adjustment (0.1mA step) and fine adjustment (0.01mA step) mode. 3. Power-on memory function, according to the last set output value when powering on the work. 4. Power reverse connection protection function 5. Simple operation, easy to use, suitable for a variety of occasions and professional use

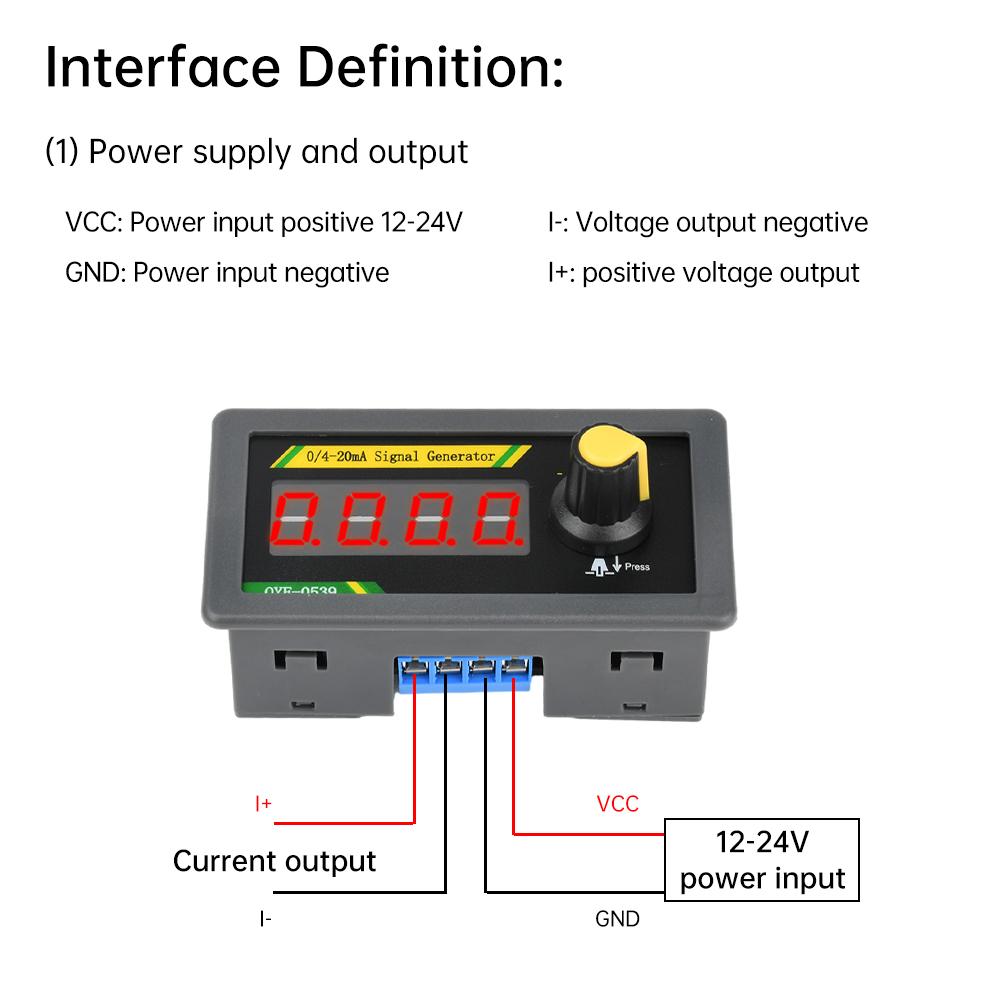

Parameters: Product description: This current analog signal generator is a high-precision industrial-grade device, supporting 0-20mA and 4-20mA output, with power reverse protection, power-down parameter storage, rotary encoder adjustment and other functions. The minimum accuracy can reach ±0.01mA, high precision, good repeatability, stable operation, suitable for a variety of scenarios. Wide input voltage operating range: 12-24VDC Minimum precision: 0.01mA Output current: 0/4--20mA Ambient temperature: -20-60°C VCC: Positive power input 12-24V GND: power input negative pole I-: current output negative pole I+: positive current output

Product size: 79 * 43 * 26.4mm

Pushbutton Controls. Output setting: continuously turn the knob to set the size of output current. Output precision setting: Short press the knob to switch between coarse (1mA step), medium (0.1mA step) and fine (0.01mA step) adjustment. Output mode setting: Long press the knob for more than 5 seconds to switch the output mode: support 0-20mA and 4-20mA signal output switching.

Applications: 1. Industrial automation testing, signal measurement 2. Transmitters, instrumentation signal calibration, etc.

Precautions: 1.Please read this instruction before use; 2. Please connect the wiring strictly according to the wiring definition, otherwise it may cause damage to the instrument.

Package Include: Display table*1

High-concerned chemical: none Semi-finishedproduct: No DIY Supplies: Electrical Certification: CE Output current: 0/4--20mA semi_Choice: yes Brand Name: Gaqqee Origin: Mainland China Battery Included: no Model Number: Current Analog Signal Generator Wide input voltage: 12-24VDC Minimum precision: 0.01mA Ambient temperature: -20-60°C
